All-new flipper parts kit is the answer for sluggish flipper assemblies between 8/1993-10/1998.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

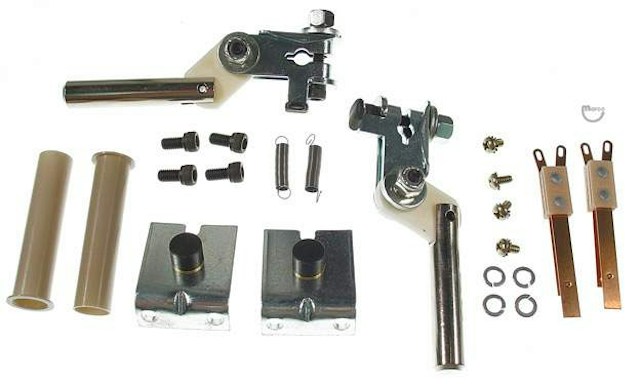

All-new flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Contains parts to rebuild both left and right flipper units. Includes flipper feeler gauge to assist in correct bushing to crank gap adjustment. Replacement flipper parts fit 8/1993-10/1998 Williams and Bally machines with Fliptronic® flippers*.
The factory recommends replacing flipper kits every half-million flips to keep your flippers performing to specification.**
*To identify a Fliptronic® flipper, check the switch on the flipper. If it is normally OPEN, it is a Fliptronic® flipper. Also check your game manual for flipper description. **Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
Used in Jersey Jack, Chicago Gaming Company, & Spooky machines.

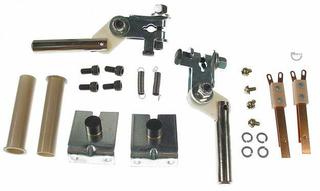

Parts included in this kit:
(1) A-15848-L - Plunger link & crank pawl
(1) A-15848-R - Plunger link & crank pawl Williams right
(2) A-12390 - Coil stop Williams/Bally
(2) SW-1A-194 - Leaf switch Williams End Of Stroke
(2) 10-364 - Spring
(4) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(4) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(2) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON
Replaces A-13524-8
Select manufacturer to view game compatibility
Left side flipper unit Plunger- link-crank assembly
Right side flipper unit Plunger- link-crank assembly
Later style coil stop used in Williams/Bally games from 08/1993 to 06/1999
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...
Flipper return and drop target return spring
Black 10-32 X 3/8 hex socket head cap screw
#10 steel split lock washer. Zinc plated.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Plastic thickness gauge for adjusting flipper bushing gap
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Plastic thickness gauge for adjusting flipper bushing gap
