All-new flipper parts kit is the answer for sluggish Bally/Williams 2/1992 - 4/1993 flipper assemblies.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Contains parts to rebuild both left and right flipper units. Also includes flipper feeler gauge to assist in correct bushing to crank gap adjustment.
Replacement flipper parts fit 1992-1993 Williams and Bally machines with Fliptronic® flippers.
For Williams WHITE WATER the factory installed a compression spring and associated link for the upper right flipper. This kit does not contain these parts. Use WFLTRON9293-1L2R-WW for a WHITE WATER flipper kit.
The factory recommends replacing flipper kits every half-million flips to keep your flippers performing to specification.
To identify a Fliptronic® flipper, check the switch on the flipper. If it is normally OPEN, it is a Fliptronic® flipper. Also check your game manual for flipper description. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

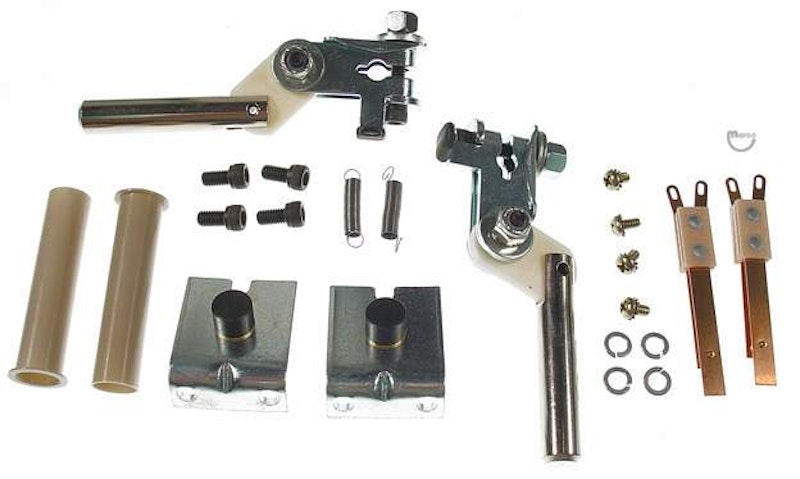

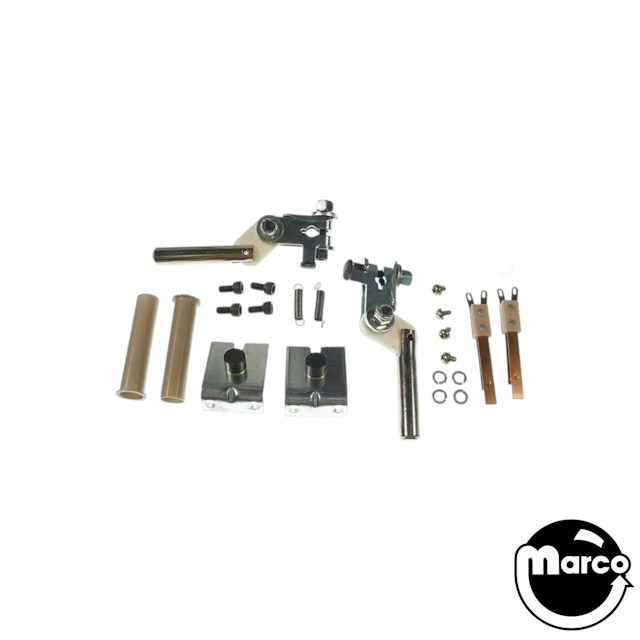

Parts included in this kit:
(1) A-15848-L - Plunger link & crank pawl
(1) A-15848-R - Plunger link & crank pawl Williams right
(2) A-12111 - Coil stop
(2) SW-1A-194 - Leaf switch Williams End Of Stroke
(2) 10-364 - Spring
(4) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket
(4) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc
(2) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON9293
Replaces A-13524-8
Note: This kit includes components for the two main flippers only; if your game has more than two flippers, please see our other full flipper rebuild kits that provide parts for all flippers on your machine.
All WFLTRON9293 kits
Select manufacturer to view game compatibility
Left side flipper unit Plunger- link-crank assembly
Right side flipper unit Plunger- link-crank assembly
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...
Flipper return and drop target return spring
Black 10-32 X 3/8 hex socket head cap screw
#10 steel split lock washer. Zinc plated.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Plastic thickness gauge for adjusting flipper bushing gap
Williams/Bally flipper coil stop. Reference: A-12111
Plastic thickness gauge for adjusting flipper bushing gap
