3 terminal, dual winding flipper coil with 1N4004.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

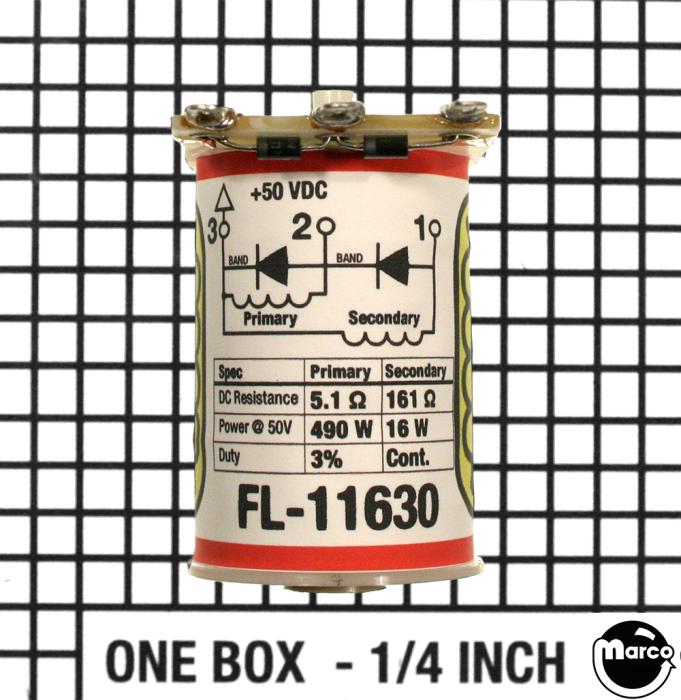

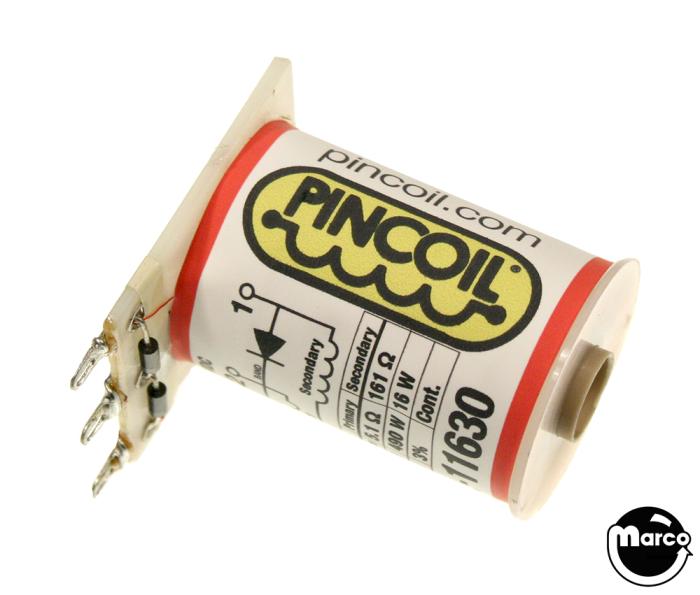

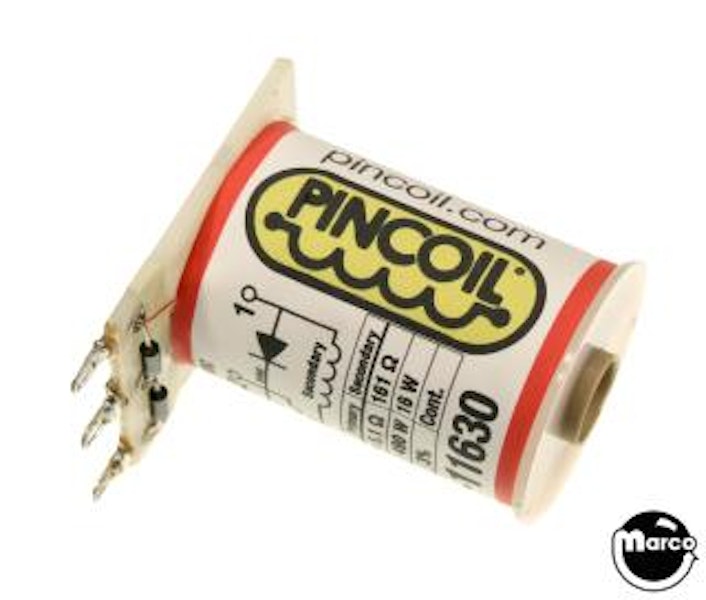

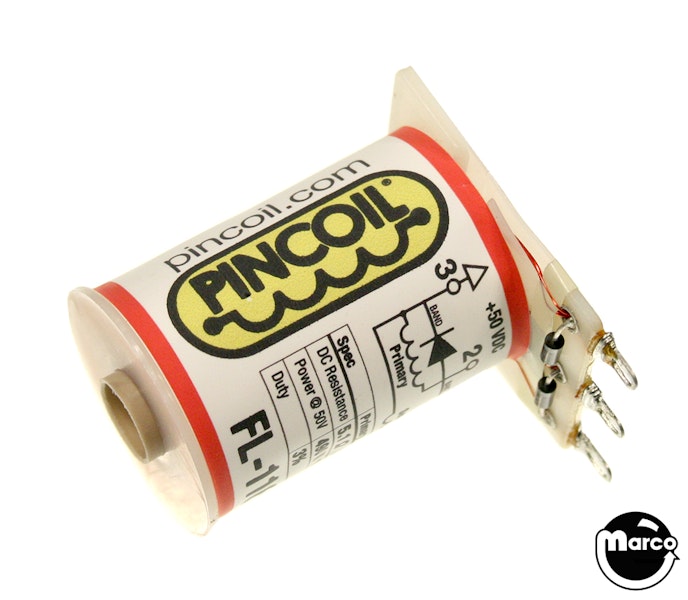

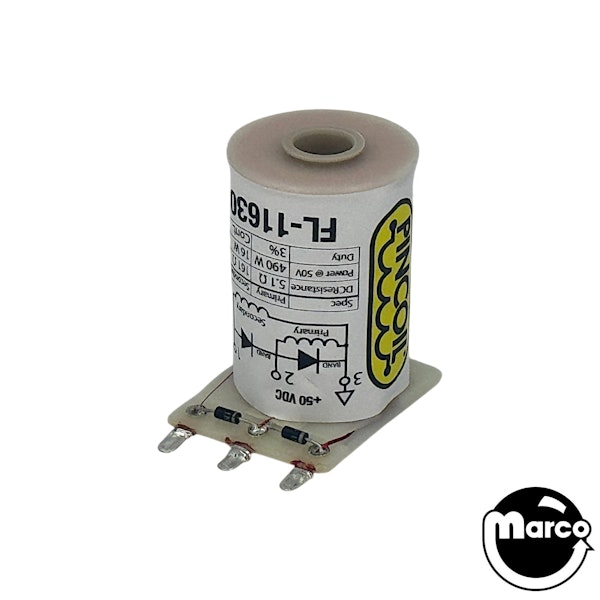

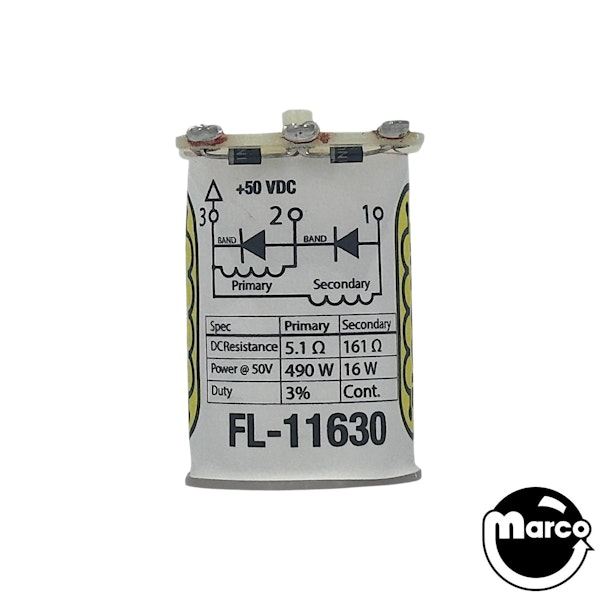

3 terminal, dual winding flipper coil with 1N4004 diodes for Bally/Williams pinball machines.
FL-11630 "standard" flipper strength, parallel coils, used on nearly all Williams system 11 pinball games (original red coil wrapper).
Specs:
Primary winding (power) ~4.7 ohms (no diode)
Secondary winding (hold) ~160 ohms (no diode)
The following games use multiple coil part numbers in different playfield locations:
F-14 TOMCAT (FL-11630 lower flippers)(FL-11722 used on uppers)
BIG GUNS (FL-11630 lower flippers)(FL-11753 used on uppers
SWORDS OF FURY (FL-11630 lower flippers)(FL-11753 used on uppers)
EARTHSHAKER (FL-11630 lower flippers)(FL-11722 used on uppers)
FUNHOUSE (FL-11630 lower flippers)(FL-11753 used on uppers)
Williams / Bally pinball machines flippers are designed for a balance of power based on the layout of a given game. Always use the specified coil number for your machine.
Always install a flipper rebuild kit before changing coils (see related items below).
The factory recommends a complete flipper rebuild every 500,000 cycles or flips. If you must adjust flipper strength, here is a list of coil numbers and their relative strength going from weakest to strongest:
FL-11753 Yellow - Used with short flippers and close shots

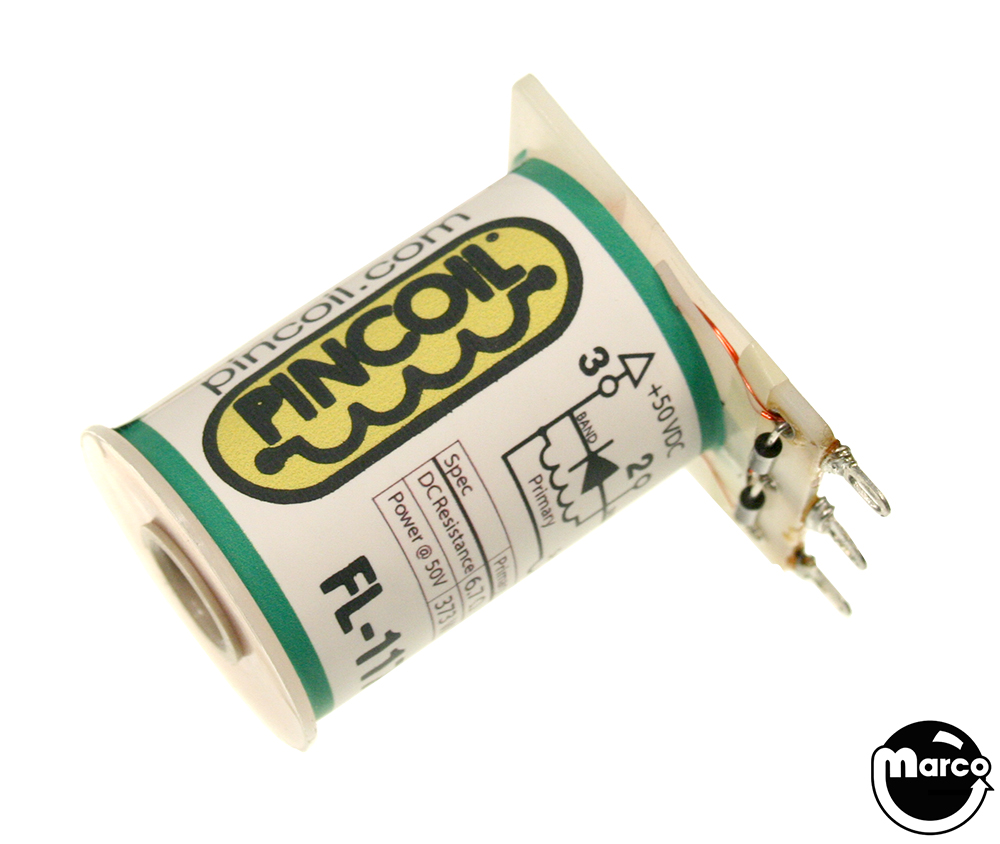

FL-11722 Green - Used for close shots near drop targets
FL-11630 Red - The standard, most commonly used coil
FL-15411 Orange - Used for long playfield shots
FL-11629 Blue - Used for long shots and high ramps
All coils include new sleeves (coil tubing) where applicable.
Reference:
FL-11630
Wico 04-071800
03-7066-5
Select manufacturer to view game compatibility
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Variable temperature soldering station
Solder - Pocket Dispenser 14 gram tube 60/40 tin/lead

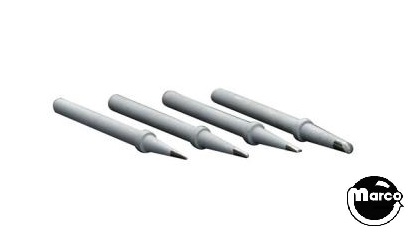

Soldering Station - tip kit 4 piece assortment
3 terminal, dual winding flipper coil with 1N4004 diodes used on Williams, Bally, Jersey Jack, & Chicago Coin Gaming.
Solder - 100 gram spool 1 mm 40/60
3 terminal, dual winding flipper coil is used on the following machines:...

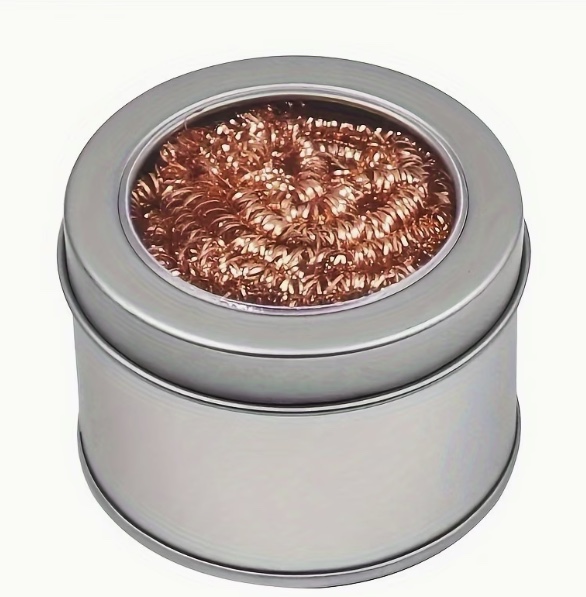

Wire-type soldering tip cleaner for use with soldering iron tips
Solder flux pen

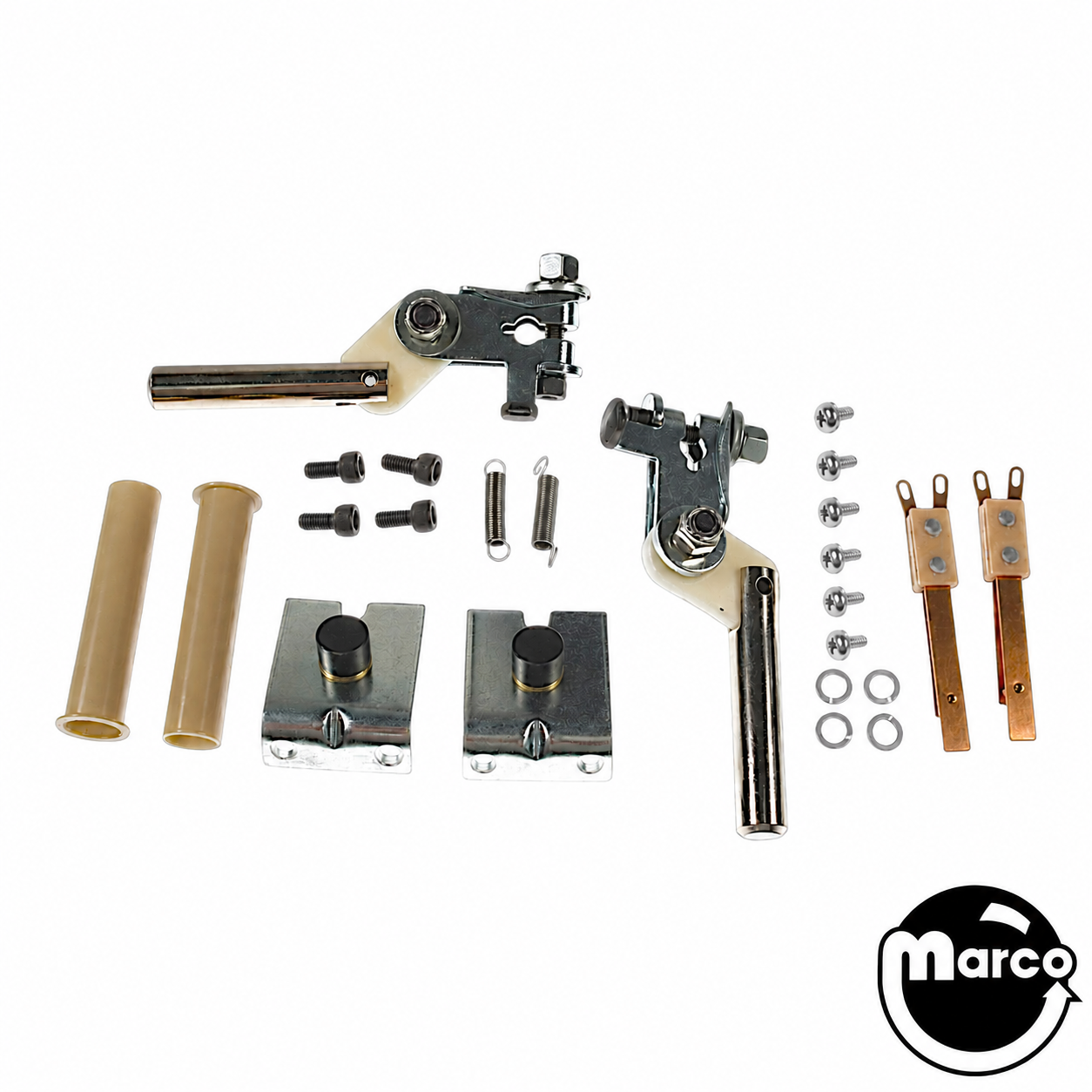

All-new flipper parts kit is the answer for sluggish flipper assemblies between 8/1993-10/1998.
Designed for non-Fliptronic® 2/1988 - 8/1991 Williams and Bally machines
6-1/2 inch Titanium Soldering Pick
Safety Glasses
All-new flipper parts kit is the answer for sluggish Bally/Williams 2/1992 - 4/1993 flipper assemblies.
Full flipper rebuild kit for 2/1992 - 4/1993 Williams Fliptronic assemblies.
Soldering Tip Cleaner Replacement Sponge

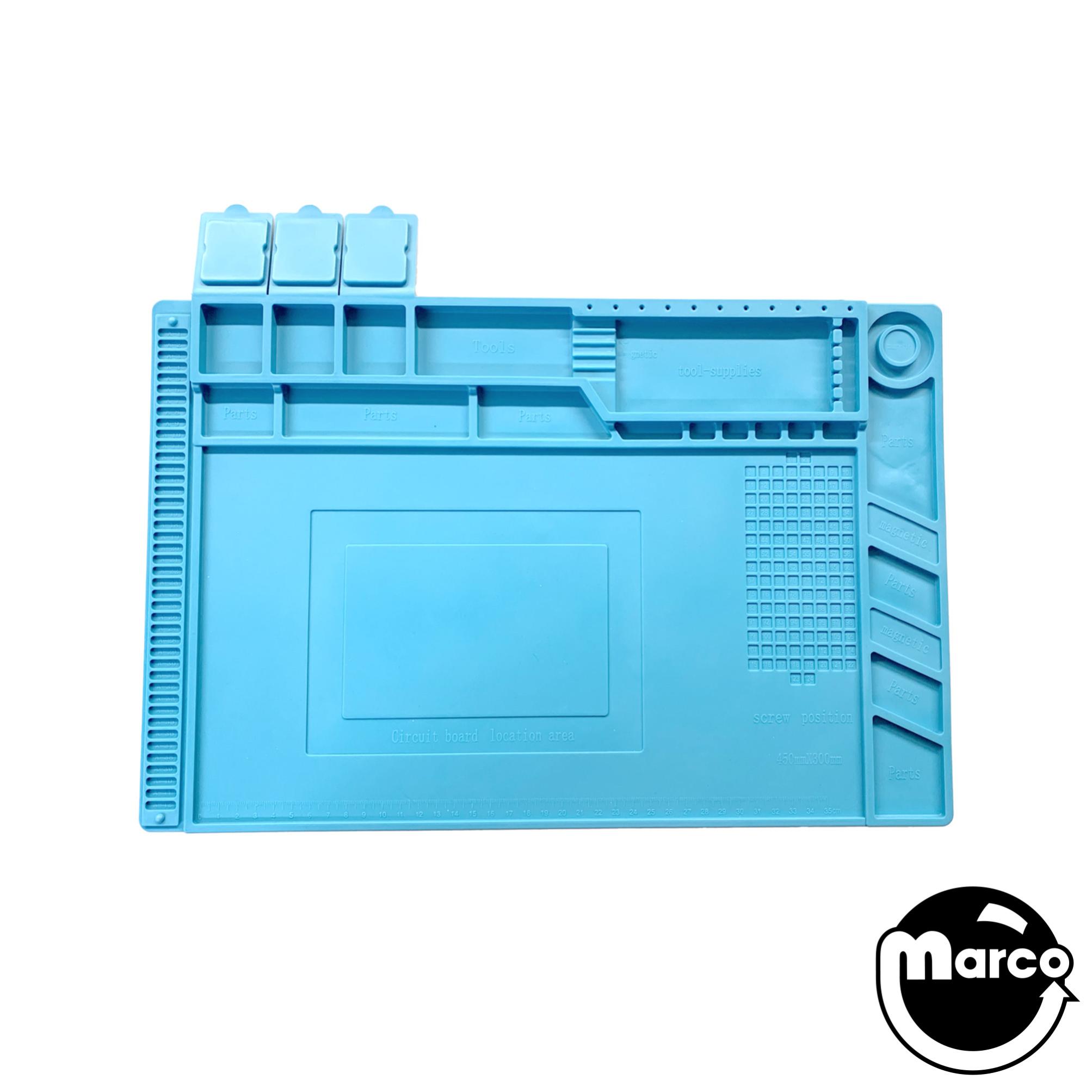

Silicone soldering mat for board repairs and project work...
