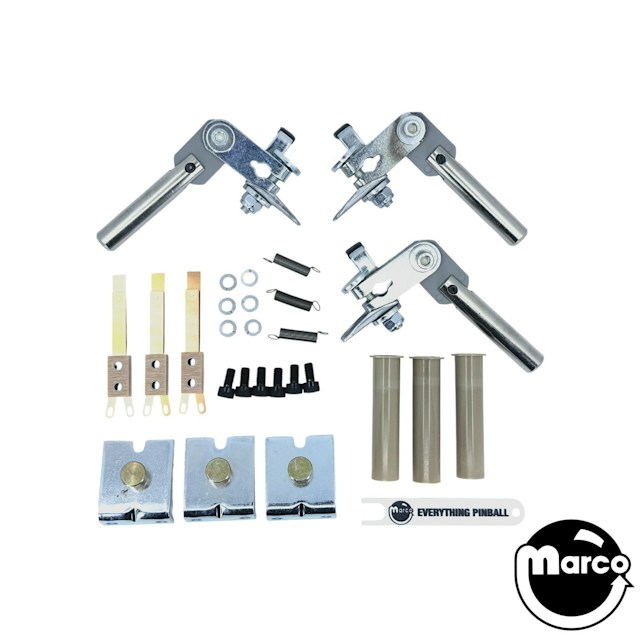

Full flipper rebuild kit for 2/1992 - 4/1993 Williams Fliptronic assemblies.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Contains parts to rebuild both left and right flipper units. Also includes flipper feeler gauge to assist in correct bushing to crank gap adjustment.
Replacement flipper parts fit 1992-1993 Williams and Bally machines with Fliptronic® flippers. For Williams WHITE WATER the factory installed a compression spring and associated link for the upper right flipper. This kit does not contain these parts. Use WFLTRON9293-1L2R-WW for a WHITE WATER flipper kit. The factory recommends replacing flipper kits every half-million flips to keep your flippers performing to specification.
Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
Parts included in this kit:
(1) A-15848-L - Plunger link & crank pawl
(2) A-15848-R - Plunger link & crank pawl Williams right
(3) A-12111 - Coil stop
(3) SW-1A-194 - Leaf switch Williams End Of Stroke
(3) 10-364 - Spring
(6) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(6) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(3) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON9293
Replaces A-13524-8
Select manufacturer to view game compatibility
Left side flipper unit Plunger- link-crank assembly
Plastic thickness gauge for adjusting flipper bushing gap
Right side flipper unit Plunger- link-crank assembly
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...
Black 10-32 X 3/8 hex socket head cap screw
#10 steel split lock washer. Zinc plated.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Williams/Bally flipper coil stop. Reference: A-12111
Flipper return and drop target return spring
Plastic thickness gauge for adjusting flipper bushing gap
