For use on Williams/Bally machines: CORVETTE, CONGO, & DEMOLITION MAN.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

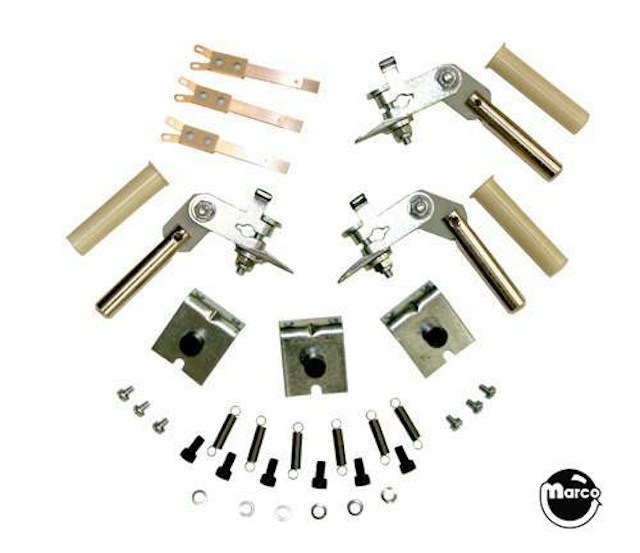

All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Kit contains parts to rebuild the right flipper and two left flipper units. Also includes flipper feeler gauge to assist in correct bearing to crank gap adjustment.
The factory recommends replacing flipper components every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
For use on Williams/Bally machines: CORVETTE, CONGO, & DEMOLITION MAN.
Parts included in this kit
(2) A-15848-L - Plunger link & crank pawl
(1)
(3) A-12390 - Coil stop Williams/Bally
(3) SW-1A-194 - Leaf switch Williams End Of Stroke
(3) 10-364 - Spring
(6) 4006-01003-04 - Machine Screw 6-32 x 1/4" p-ph-sems 232-5200...
(6) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(6) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(3) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON-2L1R
Replaces: A-13524-8
Select manufacturer to view game compatibility
Left side flipper unit Plunger- link-crank assembly
Right side flipper unit Plunger- link-crank assembly
Later style coil stop used in Williams/Bally games from 08/1993 to 06/1999
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...
Flipper return and drop target return spring
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Black 10-32 X 3/8 hex socket head cap screw
#10 steel split lock washer. Zinc plated.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Plastic thickness gauge for adjusting flipper bushing gap
Compatible with most 3" flippers on Modern & Vintage pinball machines.
