Designed for non-Fliptronic® 2/1988 - 8/1991 Williams and Bally machines
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

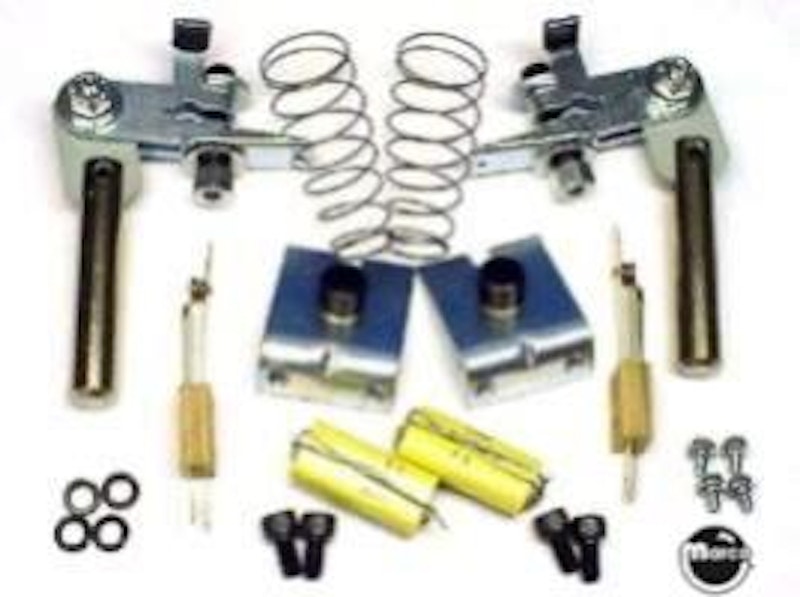

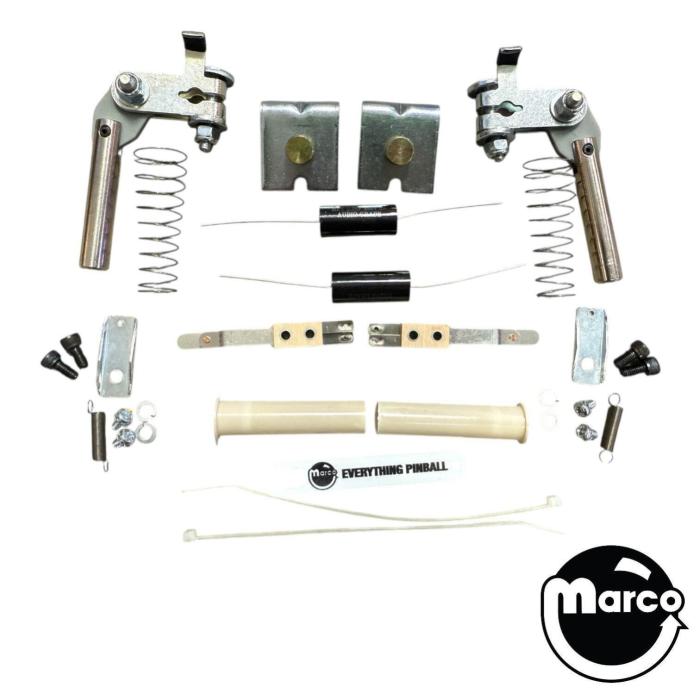

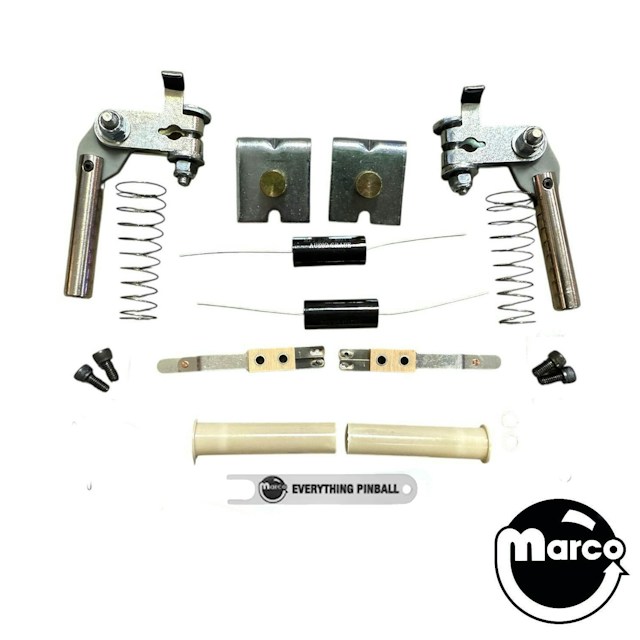

All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Includes parts to rebuild both left and right flipper units.
Designed for non-Fliptronic® 2/1988 - 8/1991 Williams and Bally machines that use NORMALLY CLOSED (contacts are touching when flipper is at rest) end-of-stroke switches and spark-suppression capacitors. Check your game manual for correct flipper description.
Flipper feeler gauge included to assist in adjusting the bearing-to-crank gap.
The factory recommends installing flipper kits every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
Parts included in this kit
(1) B-10655-L - Plunger & crank assembly WPC early left
(2) A-12111 - Coil stop
(2) 10-376 - Spring
(2) 03-7811 - Leaf switch End of Stroke normally closed ASW-A20-1
(4) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(4) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(2) 03-7066-5 - Coil sleeve
(2) C2.2M250VA-NP - Capacitor 2.2 uF 250v axial NP yellow 125-50...
(2) 77-CT6-1 - Cable tie 6 inch single
(1) 03-8194 - Flipper Gauge
Reference:
A-13524-1
Select manufacturer to view game compatibility
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Flipper end of stroke switch for electronic and electromechanical pinball machines.
Plastic thickness gauge for adjusting flipper bushing gap
Common tapered style compression flipper return spring
Black 10-32 X 3/8 hex socket head cap screw
#10 steel split lock washer. Zinc plated.

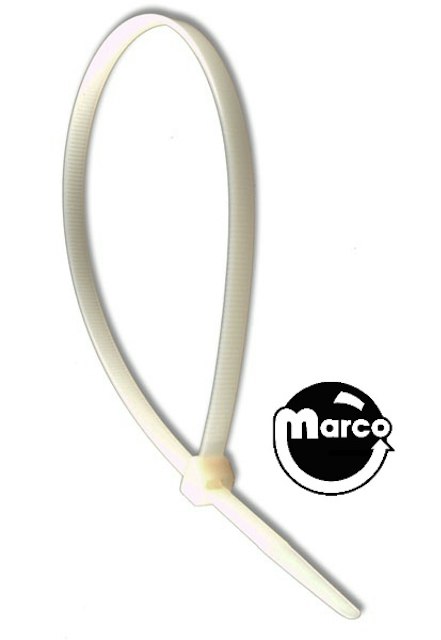

Single 6 inch Cable Tie
Williams/Bally flipper coil stop. Reference: A-12111
Early 1990s Williams left side flipper crank, plunger and link assembly.
Williams right side flipper crank, plunger and link assembly for early flippers

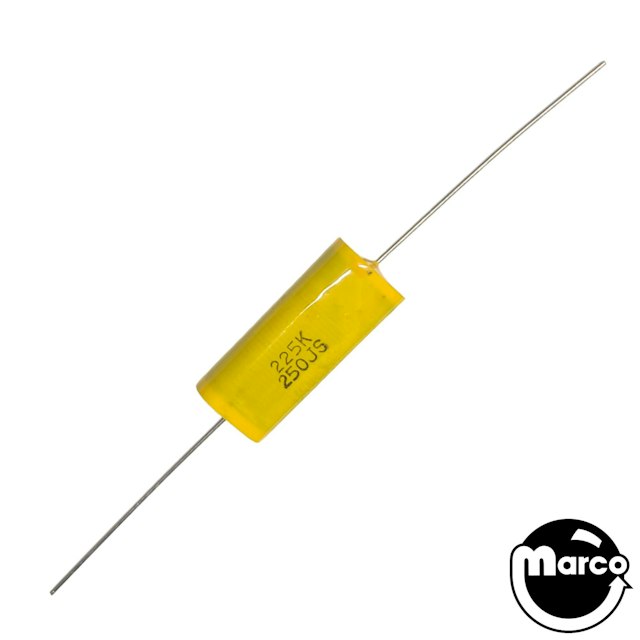

Yellow wrapper 2.2 uF @ 250 volt axial lead non-polarized metalized polyester. 125-5002-00
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
