New Williams flipper parts are the answer for sticky, sluggish, weak, or dead flippers.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

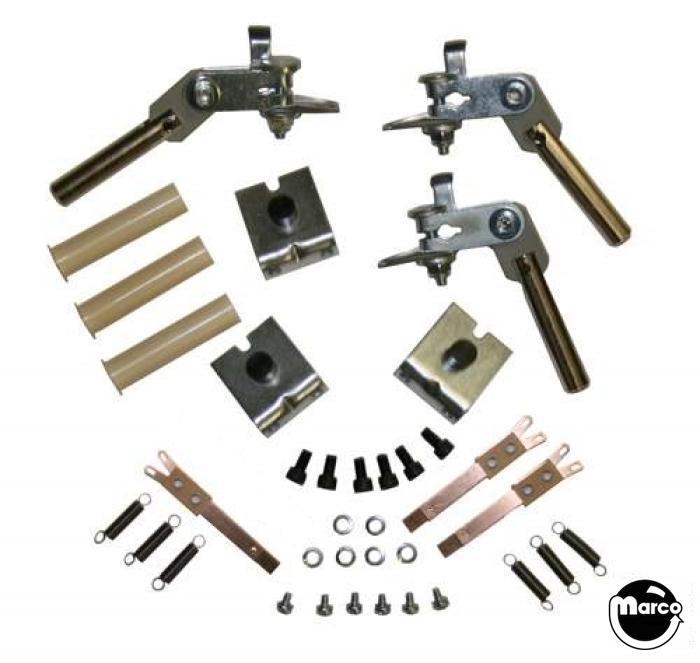

All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Contains parts to rebuild the left flipper and two right flipper units. Includes flipper feeler gauge to assist in correct bushing to crank gap adjustment.
The factory recommends replacing flipper kits every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
Parts included in this kit:
(3) A-12390 - Coil stop Williams/Bally
(1) A-15848-L - Plunger link & crank pawl
(3) SW-1A-194 - Leaf switch Williams End Of Stroke
(3) 10-364 - Spring
(6) 4006-01003-04 - Machine Screw 6-32 x 1/4" p-ph-sems 232-5200...
(6) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(6) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(3) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON-1L2R
Replaces Williams Part No.A-13524-8
Select manufacturer to view game compatibility
Right side flipper unit Plunger- link-crank assembly
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...
Flipper return and drop target return spring
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Black 10-32 X 3/8 hex socket head cap screw
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Later style coil stop used in Williams/Bally games from 08/1993 to 06/1999
Left side flipper unit Plunger- link-crank assembly
#10 steel split lock washer. Zinc plated.
Plastic thickness gauge for adjusting flipper bushing gap
