Rebuild and restore your Gottlieb connector.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

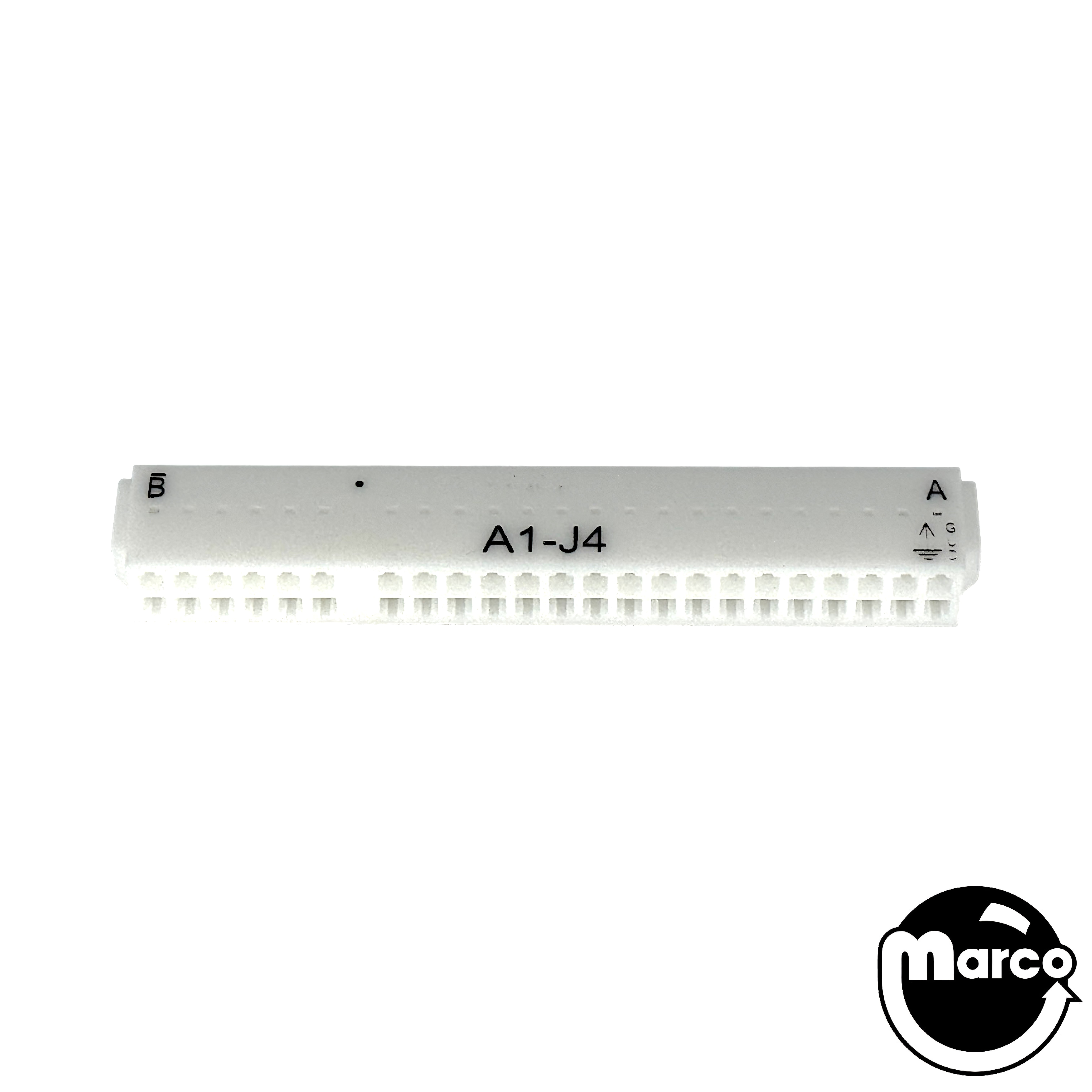

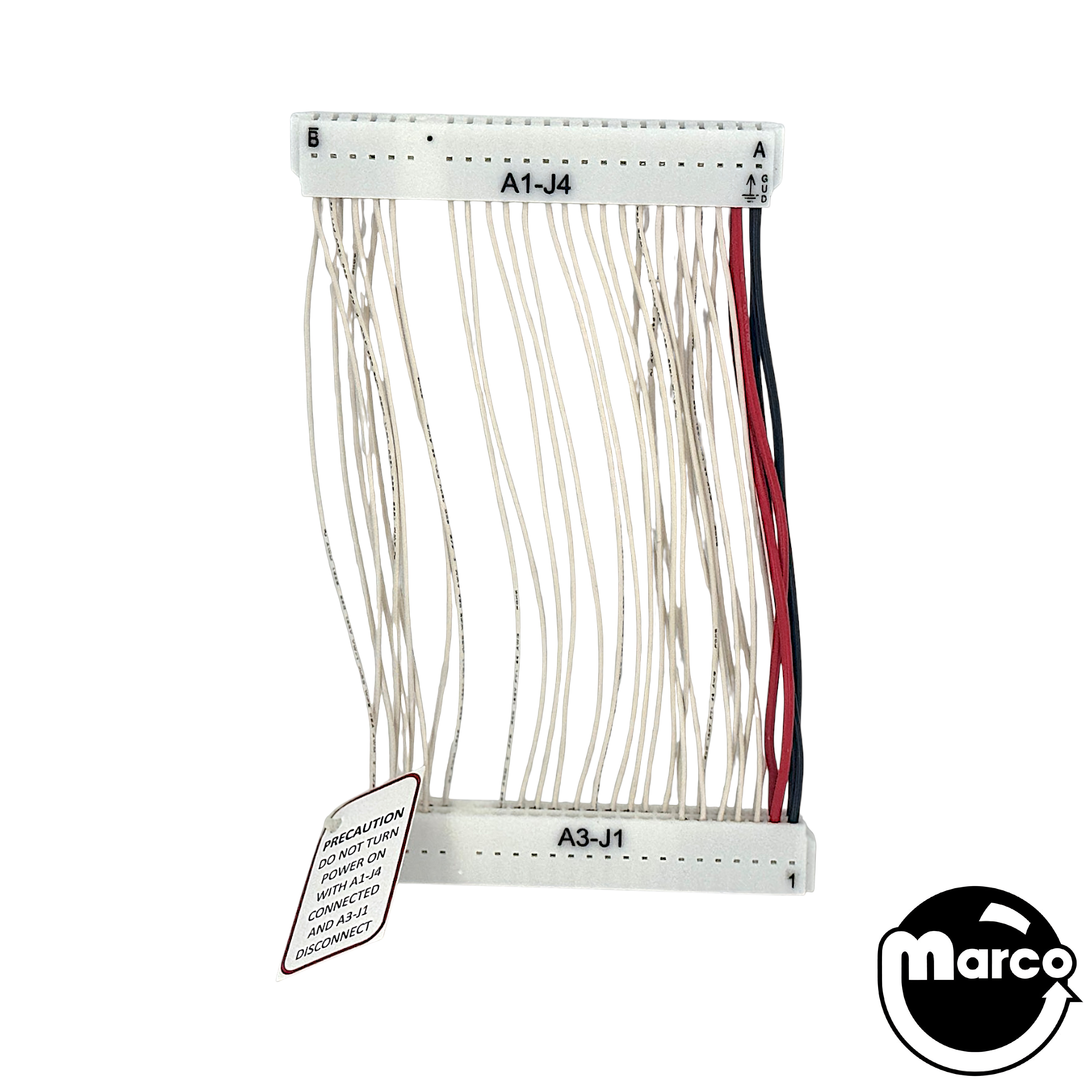

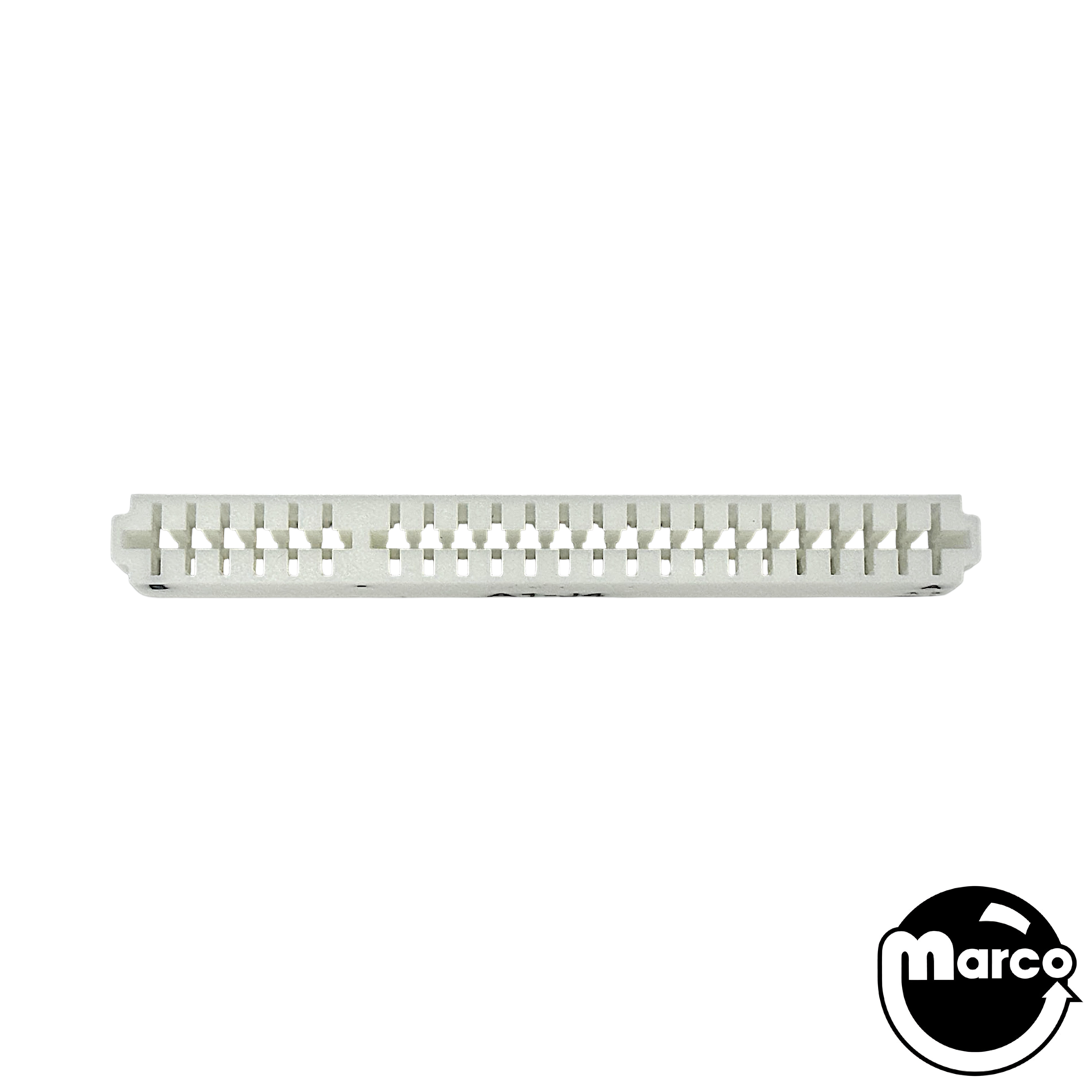

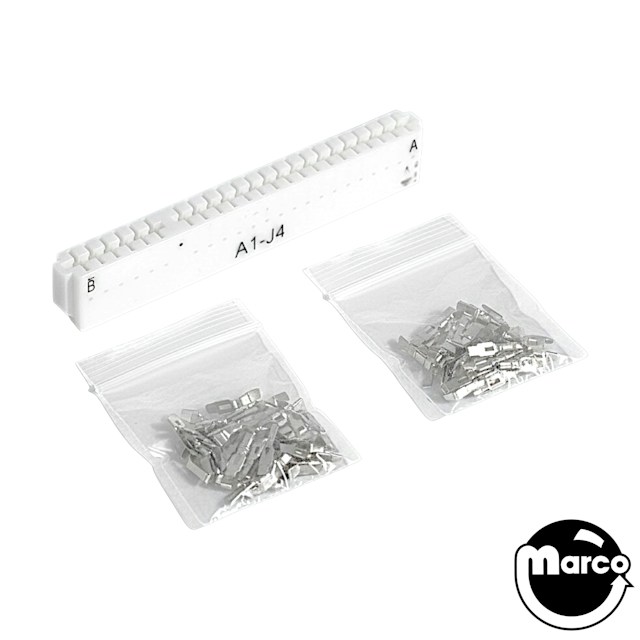

48 pin (24x2) edge double-sided board connector kit for the A1-J4 connector on the Gottlieb System 80 / 80a / 80b driver MPU boards. Includes housing and thirty-eight 0.156 inch crimp terminals (33 connections and 5 spare). The perfect companion to your rebuild kit, GTB80-MPU-HAR. Replace worn or damaged wiring while restoring dependable performance to the rebuilt assembly.
Technical Details:
Compatible with Gottlieb System 80 / 80a /80b machines.
Polarizing key integrated into housing to prevent accidental installation on the wrong connector.
The original housing (09-50-5255) using the obsolete bifurcated 0.156-inch crimp terminals (08-03-0304) was reengineered to use the widely available 0.156-inch crimp terminals (08-52-0072) ensuring future maintainability.
Includes 0.156-inch phosphor-bronze crimps terminals (08-52-0072).
Reference:
09-50-5245-1
Replaces 09-50-5255 (Molex 24x2 Housing)
08-03-0304 (Bifurcated Board Edge 0.156-inch Crimp Terminals)
08-52-0072 (Board Edge 0.156-inch Crimp Terminals)
