Crimp terminal - bifurcated .156 inch (08-03-0303 or 08-03-0304)
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

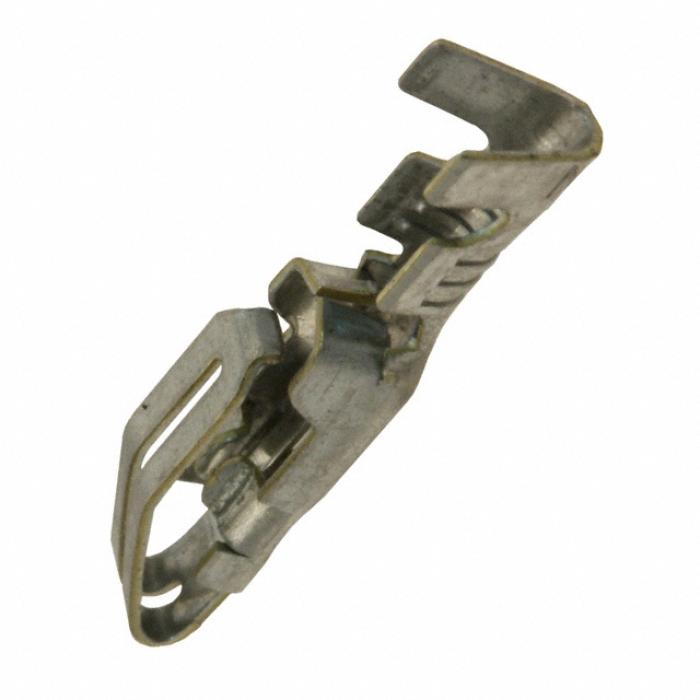

Split face (bifurcated) crimp terminal for use in circuit board edge connectors with .156" spacing.
Material is tin plated brass and accomodates 18-24 AWG size wires.
Typically found in black double sided edge connectors used on Gottlieb System 80 interconnect wiring harnesses. Used between the CPU board and the driver board and labeled as A1-J4 on the CPU board and A3-J1 on the Lamp & Solenoid Driver board.
Note: These are not to be used on Molex single sided edge connector housings.
Note: Terminals are strip-mounted for machines—snip or snap for single use.
Reference:
08-03-0304 bulk
08-03-0303 reel strip
0008030304
0008030303
