Rebuild and restore your Gottlieb harness.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

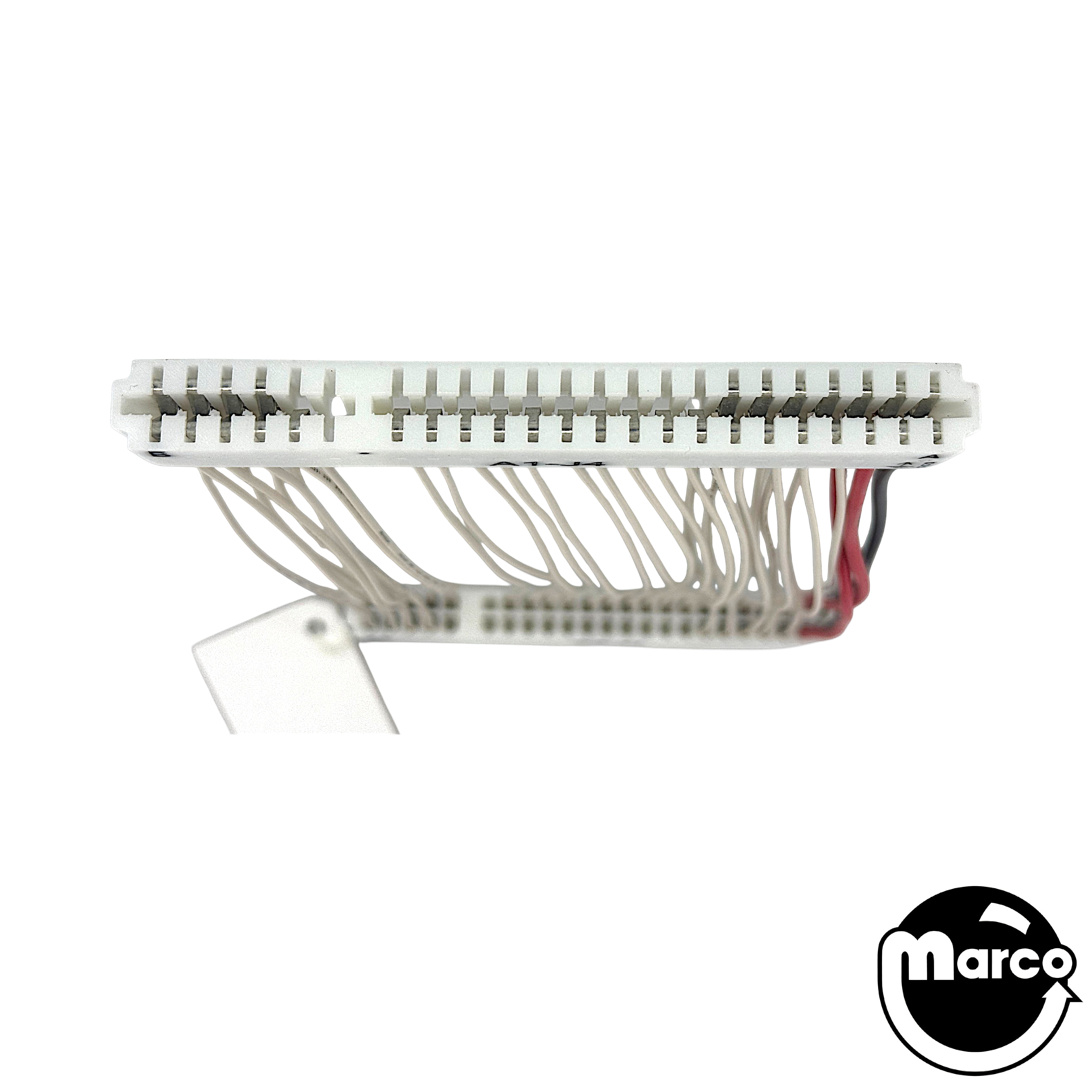

This wiring harness connects a Gottlieb System 80 / 80a / 80b MPU A1-J4 edge connector to the driver board A3-J1 edge connector. This pre-assembled wiring harness provides a reliable replacement for the original board-to-board harness. Designed to quickly replace a damaged or corroded interconnect harness.
Technical Details:
Compatible with Gottlieb System 80 / 80a / 80b machines requiring a 6-inch board-to-board harness or shorter.
Includes duplicate ground and power wires for improved reliability
Uses modern equivalent housings to replace obsolete factory housings
Polarizing key integrated into housings to prevent accidental installation on the wrong
connector
The original housing (09-50-5255) using the obsolete bifurcated 0.156-inch crimp terminals (08-03-0304) was reengineered to use the widely available 0.156-inch crimp terminals (08-52-0072) ensuring future maintainability
Caution Tag attached to A3-J1 connector noting the possibility of cross-connection between strobes and returns if the A3-J1 connection is disconnected and the A1-J4 connector is connected when the MPU is powered.
Additional wire length provided to re-crimp terminals during future maintenance
Features phosphor-bronze crimps terminals (08-52-0072)
Arrives pre-assembled and ready for installation
Additional wire length provided to replace crimp terminals during future maintenance.
Reference:
GTB80-MPU-HAR
09-50-5245 (Molex 24x2 Housing)
08-03-0304 (Bifurcated Board Edge 0.156-inch Crimp Terminals)
08-52-0072 (Board Edge 0.156-inch Crimp Terminals)
Replaces CAGS7-A1J4
Select manufacturer to view game compatibility
