Rebuild and restore your Gottlieb harness.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

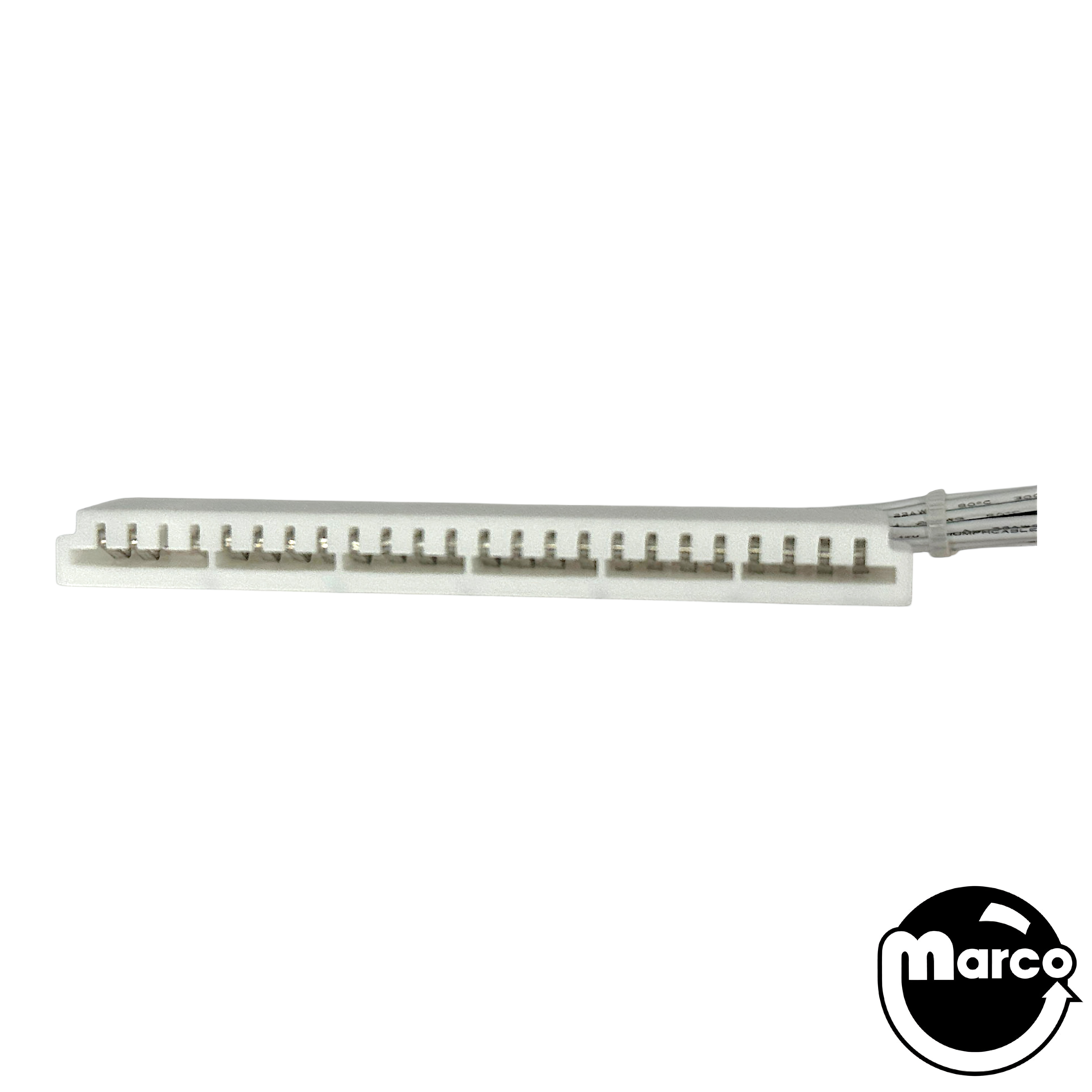

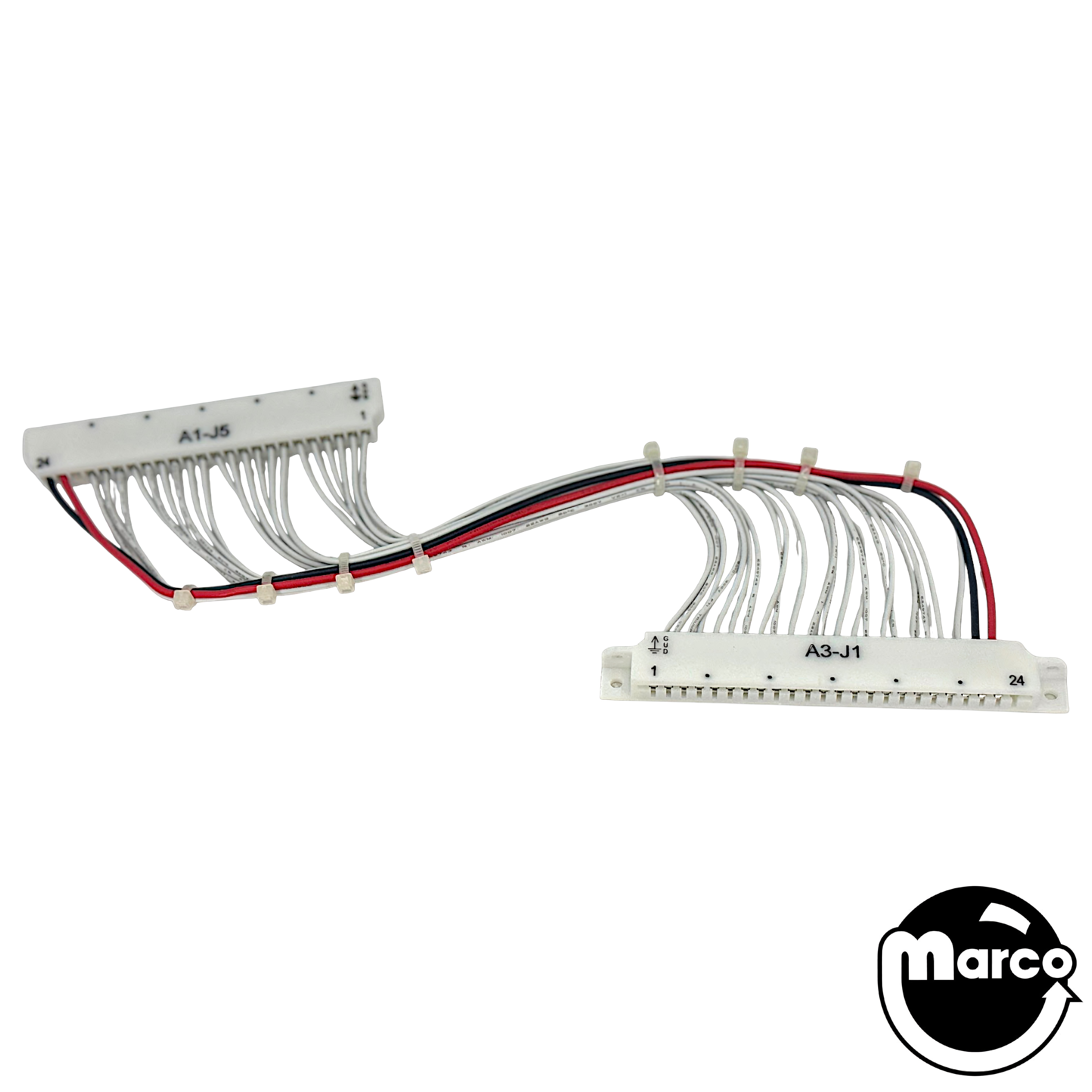

This Interconnect wiring harness connects a Gottlieb System 1 MPU (A1-J5 edge connector to the driver board A3-J1 edge connector). This pre-assembled wiring harness provides a reliable replacement for the original board-to-board harness. Designed to quickly replace a damaged or corroded interconnect harness.
Technical Details:
Compatible with Gottlieb System 1 machines
Uses modern equivalent housings to replace obsolete factory housings
Polarizing key integrated into housings to prevent accidental installation on the wrong connector
Features 0.156-inch phosphor-bronze crimps terminals (08-52-0072)
Arrives pre-assembled and ready for installation
Reference:
GTB1-MPU-HAR
08-52-0072 (Board Edge 0.156-inch Crimp Terminals)
09-01-6241 (Molex 24-pin Housing)
09-01-7241 (Molex 24-pin with tabs Housing)
Replaces CAGS1-A1J5
