Rebuild and restore your Gottlieb connector.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

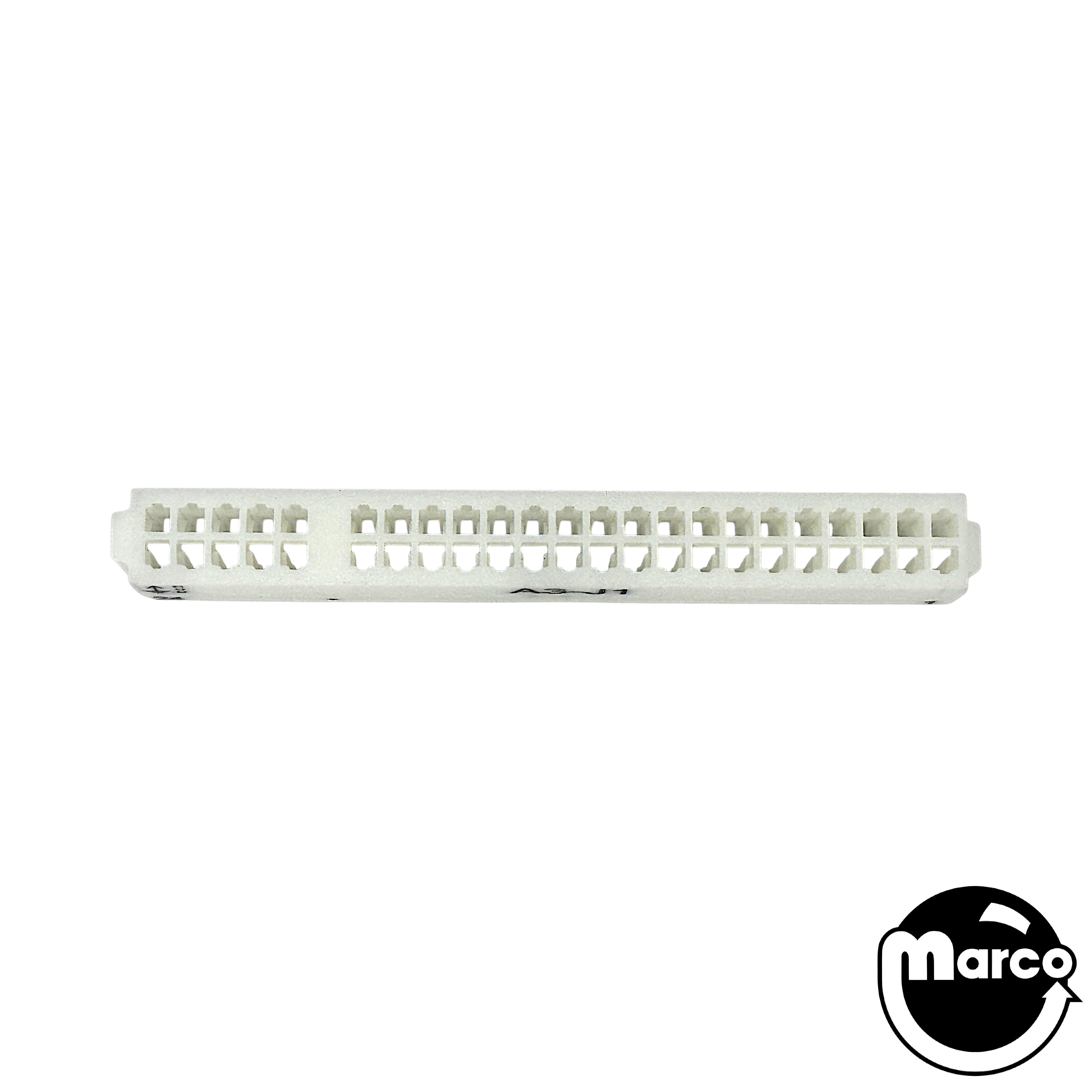

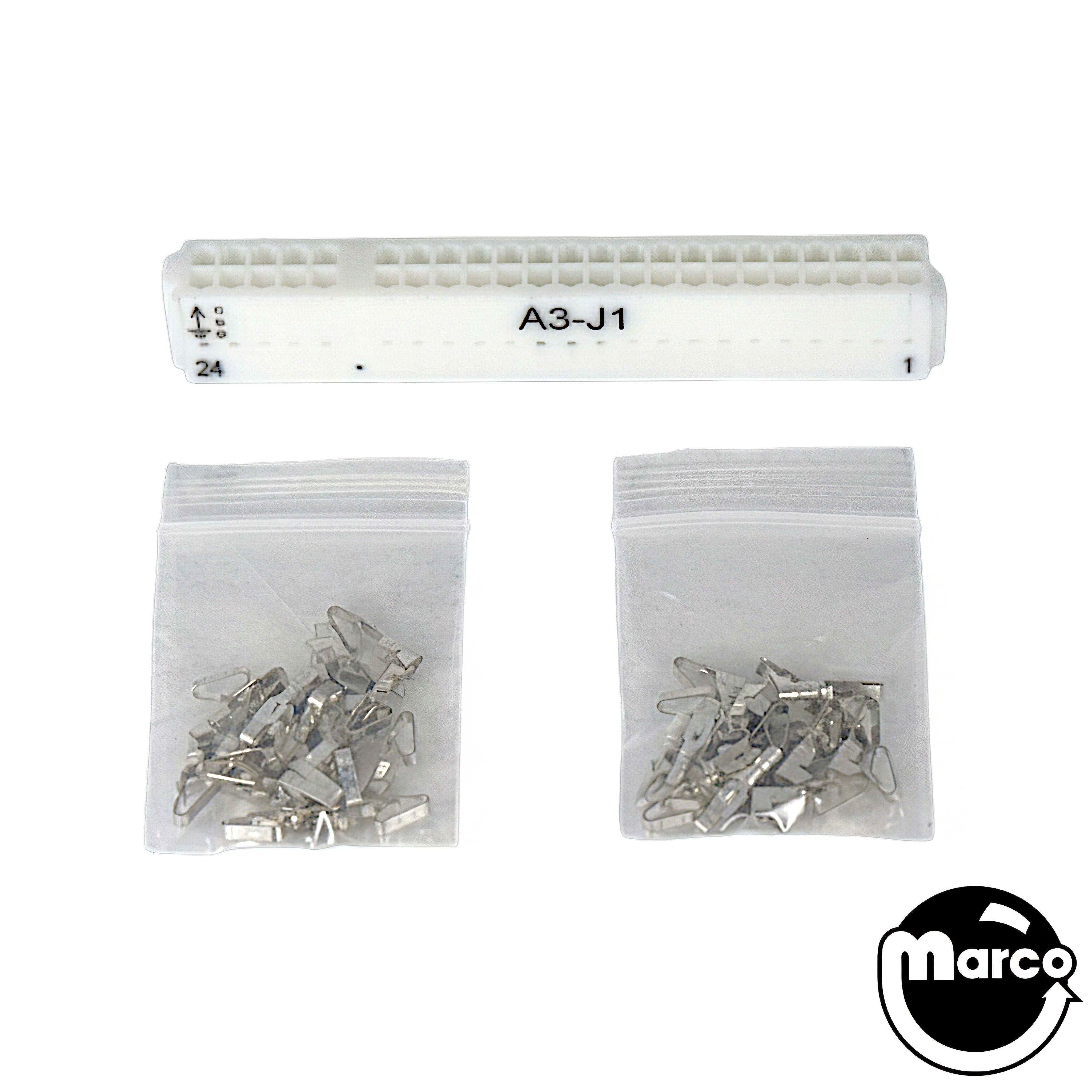

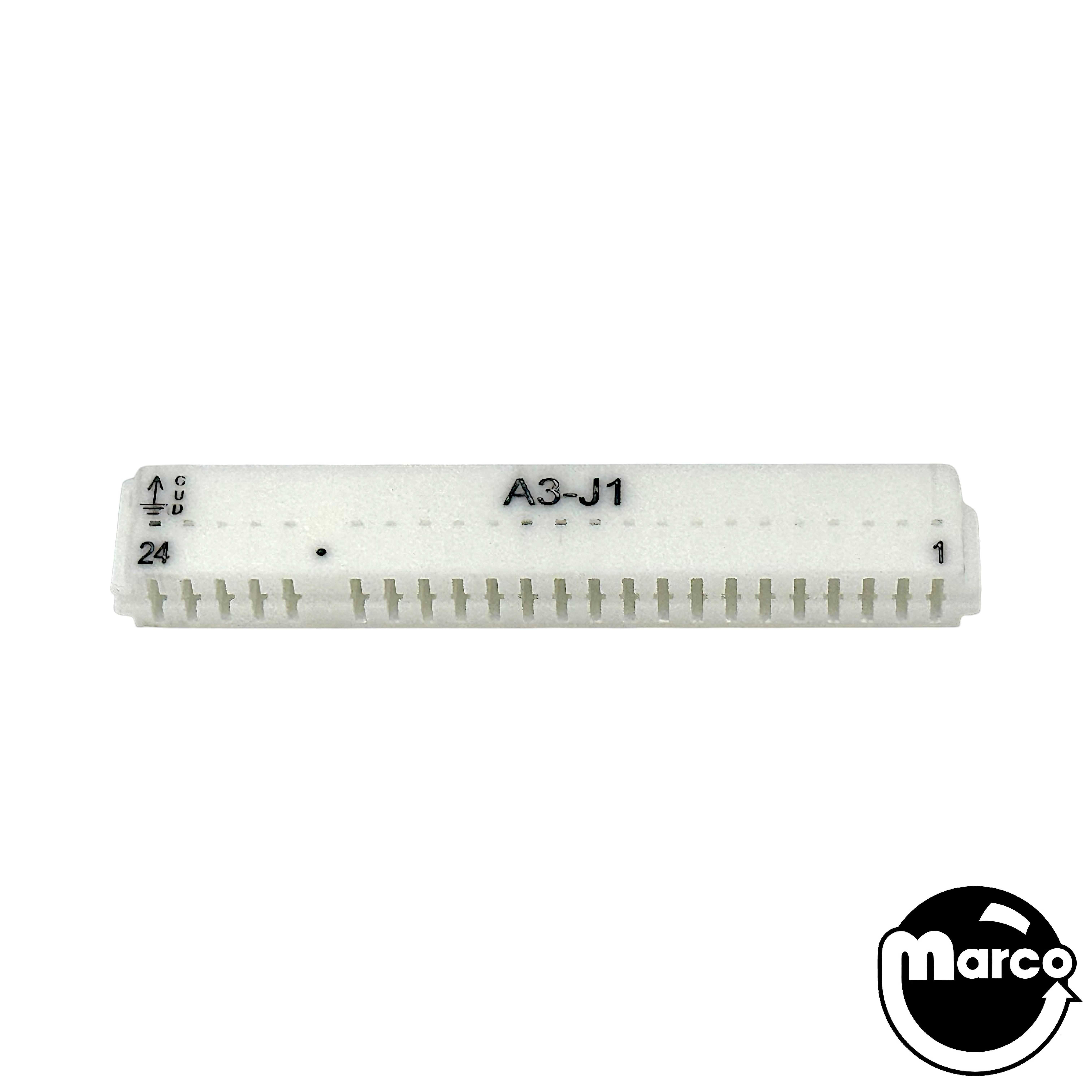

48 pin (24x2) edge double-sided board connector kit for the A3-J1 connector on the Gottlieb System 80 / 80a / 80b driver boards. Includes housing and thirty-eight 0.156-inch' crimp terminals (33 connections and 5 spare). The perfect companion to your rebuild kit, GTB80-MPU-HAR. Replace worn or damaged wiring while restoring dependable performance to the rebuilt assembly.
Technical Details:
Compatible with Gottlieb System 80 / 80a / 80b machines
Polarizing key integrated into housing to prevent accidental installation on the wrong connector
The original housing (09-50-5255) using the obsolete bifurcated 0.156-inch crimp terminals (08-03-0304) was reengineered to use the widely available 0.156-inch crimp terminals (08-52-0072) ensuring future maintainability.
Cation Tag included noting the possibility of cross-connection between strobes and returns if the A3-J1 connection is disconnected and the A1-J4 connector is connected when the MPU is powered.
Includes 0.156-inch phosphor-bronze crimps terminals (08-52-0072)
Reference:
09-50-5245-2
Replaces 09-50-5245
08-03-0304 (Bifurcated Board Edge 0.156-inch Crimp Terminals)
08-52-0072 (Board Edge 0.156-inch Crimp Terminals)
Select manufacturer to view game compatibility
Rebuild and restore your Gottlieb connector.

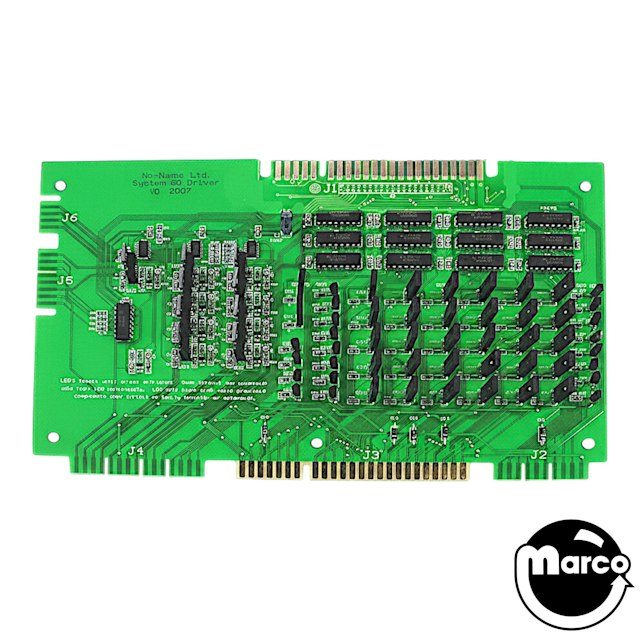

New! Ni-Wumpf DRIVER BOARD for all Gottlieb System 80, 80A and 80B.
Pinball Event Tune-Up Kit
60 page factory manual covering Gottlieb electronic System 80

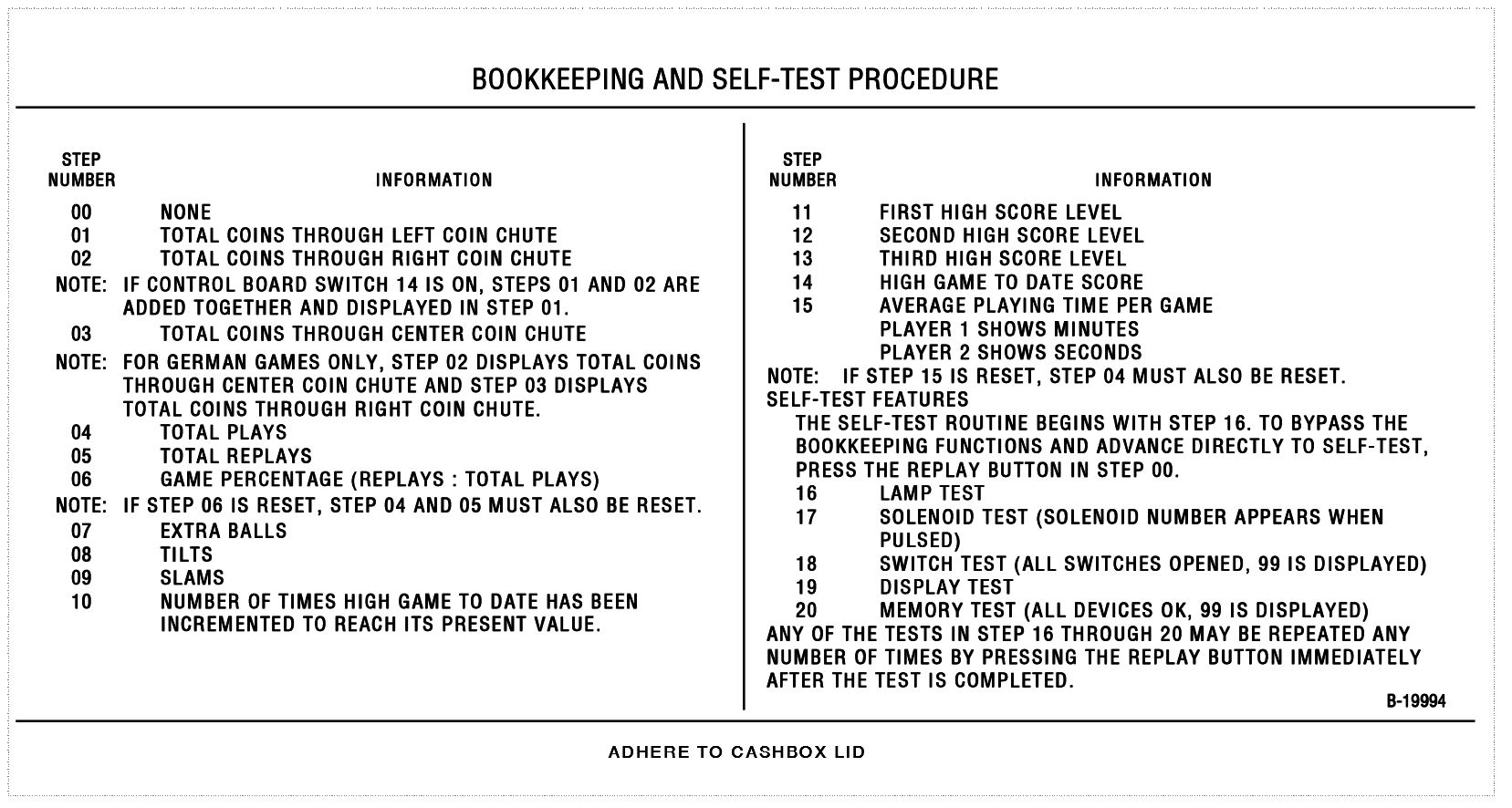

Bookkeeping and Self Test Procedure Chart Gottlieb
Connector - edge double 48 pin (24 x 2)

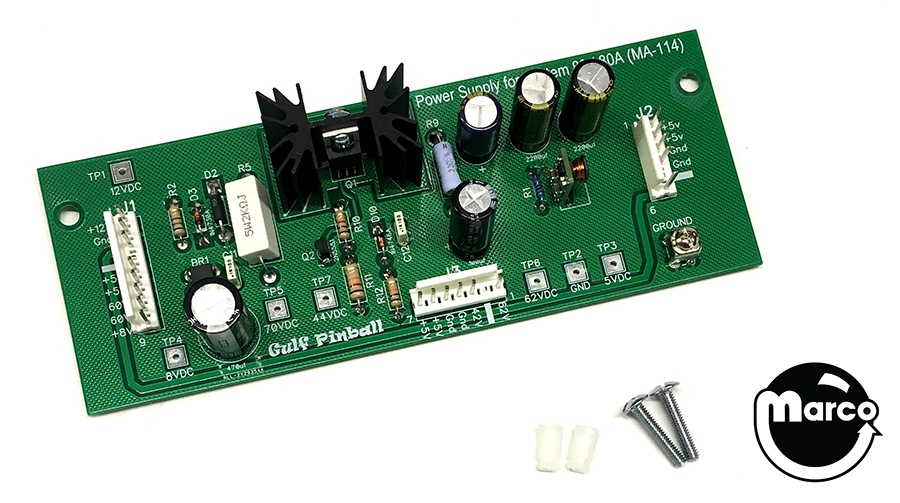

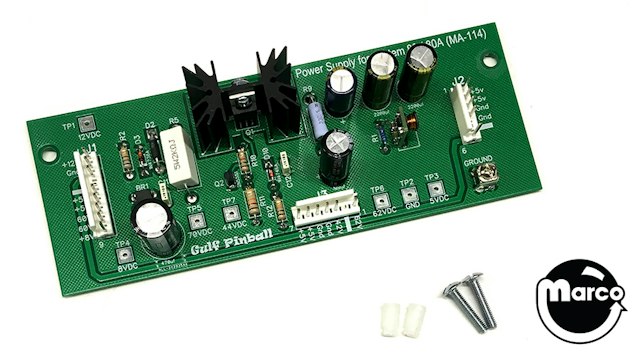

Gottlieb® System 80/80A pinball machine A2 power supply board MA-114
