Solder and desolder hot air SMD station - economy
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

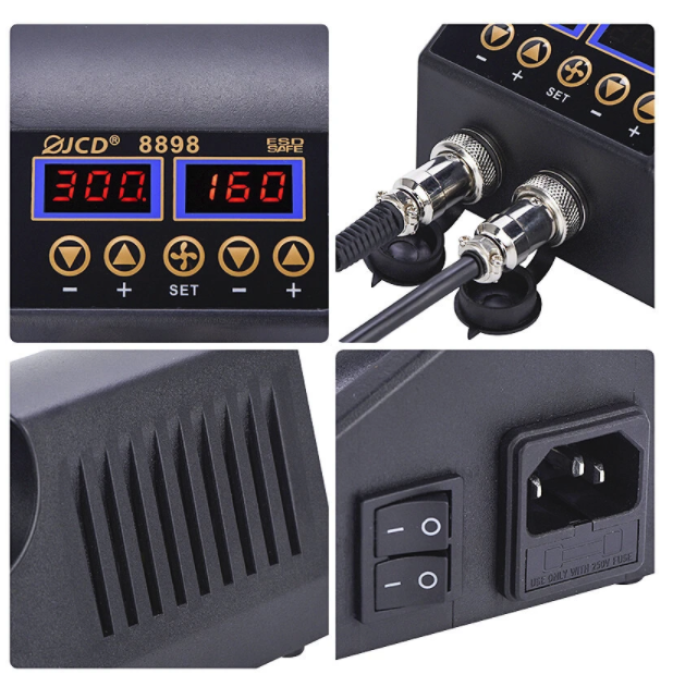

Variable temperature digital Hot Air Surface Mount device solder and desolder station
Economy soldering/desoldering station for SMD circuit board rework.

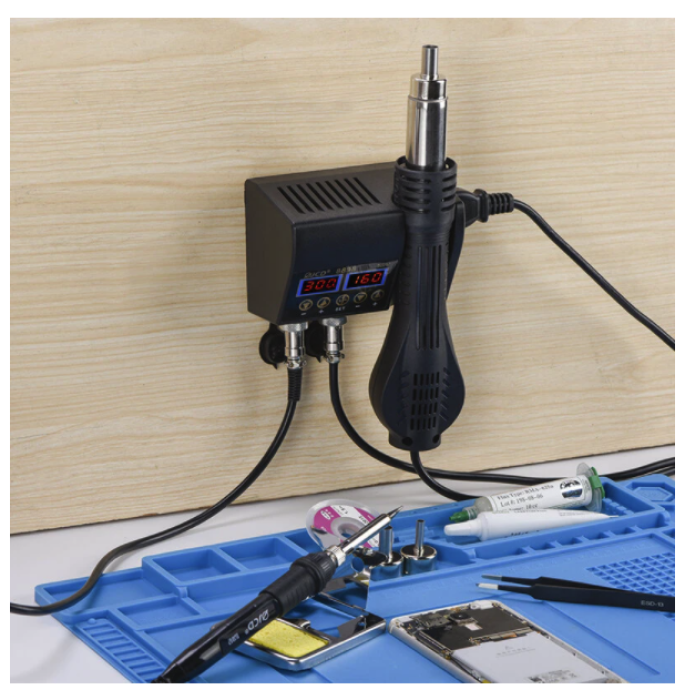

Soldering iron may be wall mounted to save workbench space.
Solder and un-solder SMD capacitor packages (0603, 0805, 1206), SMD diode package (LL34), transistor (SOT23), and other tiny surface mount devices.
Features:
Temperature Control Technology - Embedded high precision PID temperature control program monitors and corrects the actual temperature of each tool quickly and accurately.
Anti-static Design - prevents static or current leakage damage to components.
Air flow protection - automatically alarms and disables hot air heating core power supply for safety if the fan should stop.

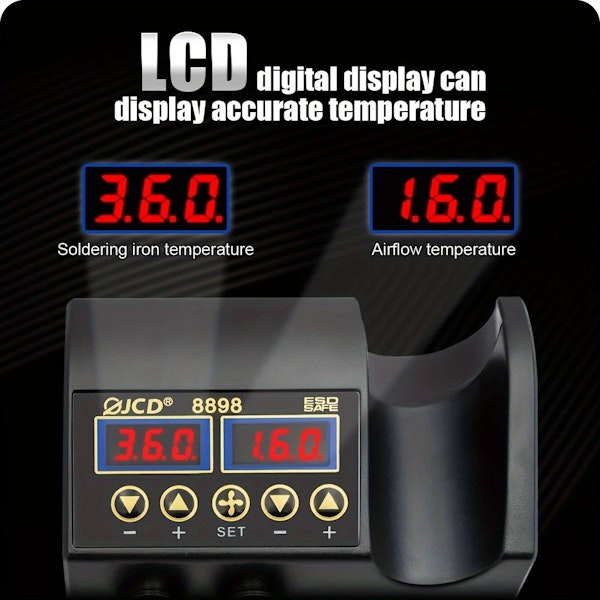

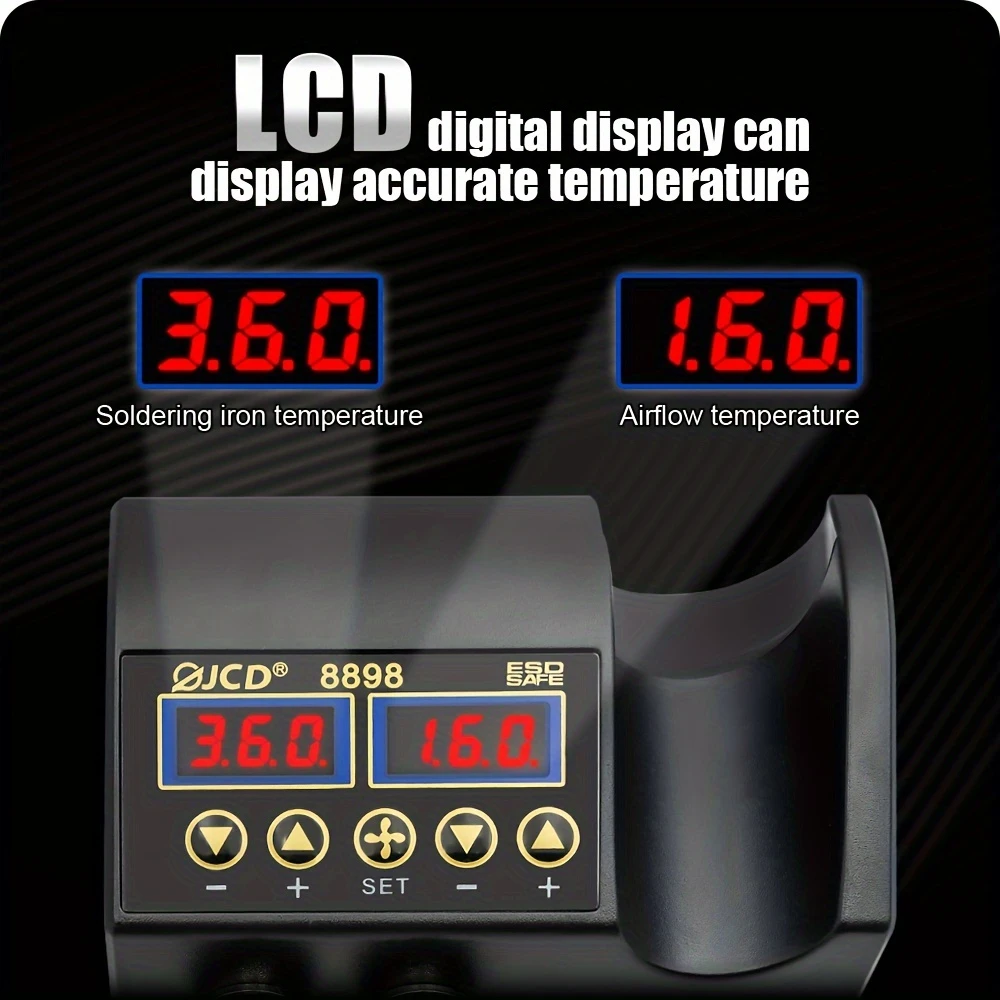

Digital temperature correction - corrects temperature deviation caused by environmental changes, heater replacement, soldering tip, or other components.
Centigrade/Fahrenheit programmable, temperature correction function, sleep function, selectable cool air / hot air.
1 year warranty.

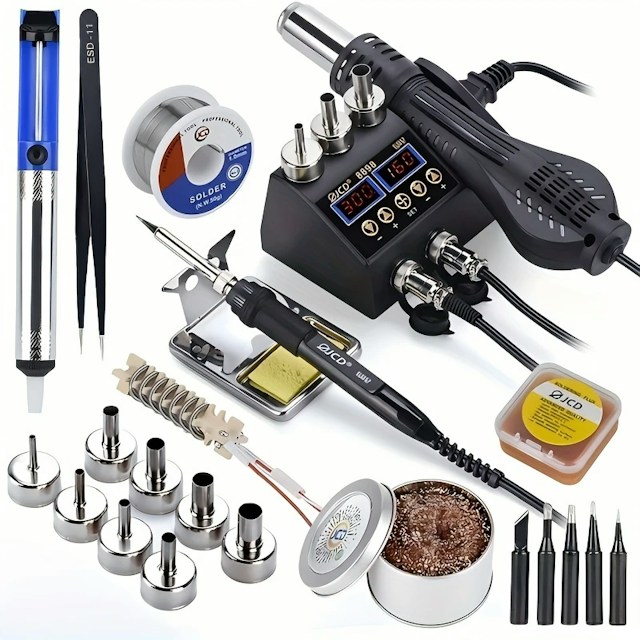

Package contents:

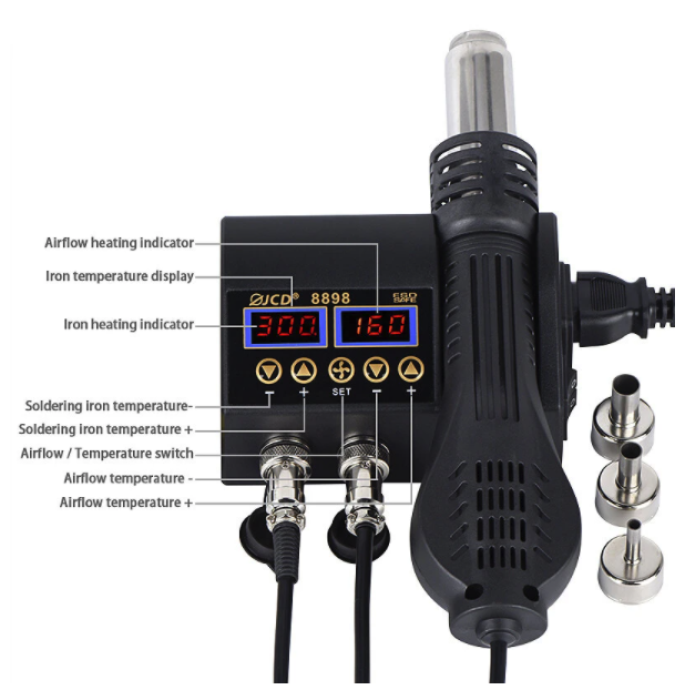

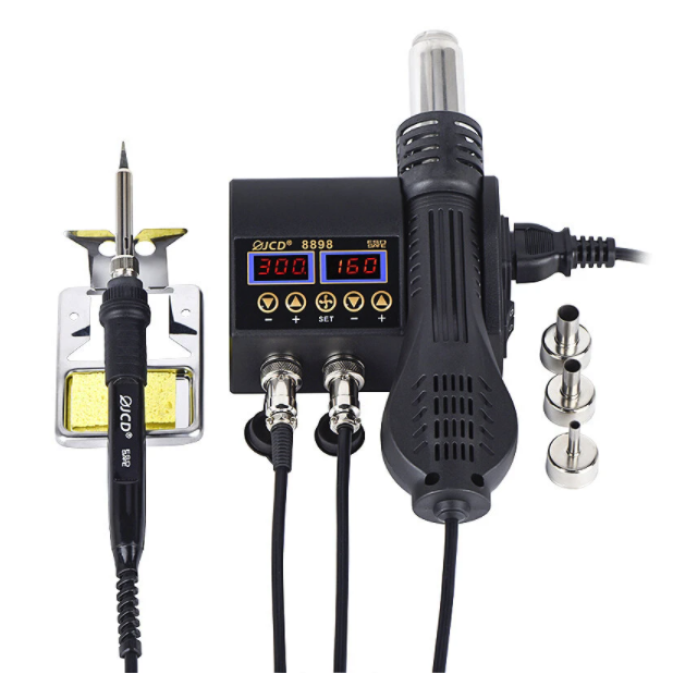

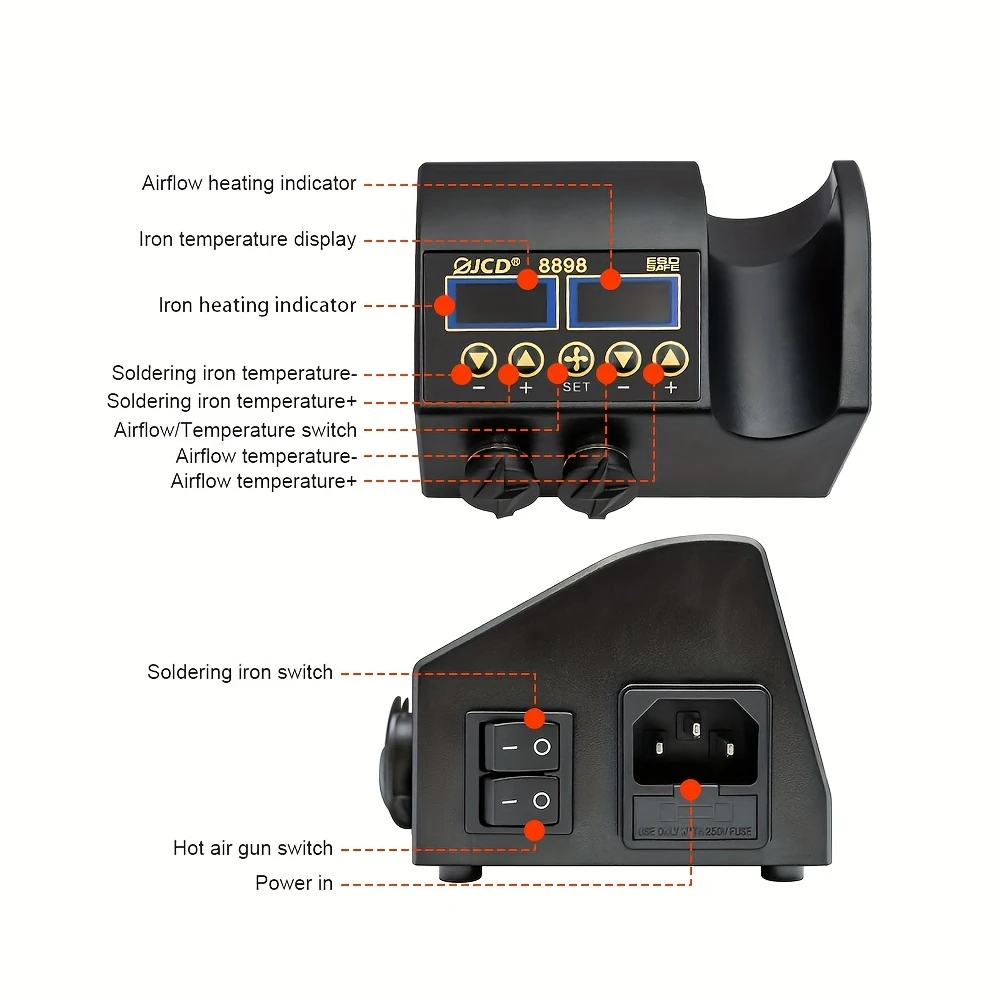

Model 8898 2 in 1 Hot Air Rework and Soldering Station

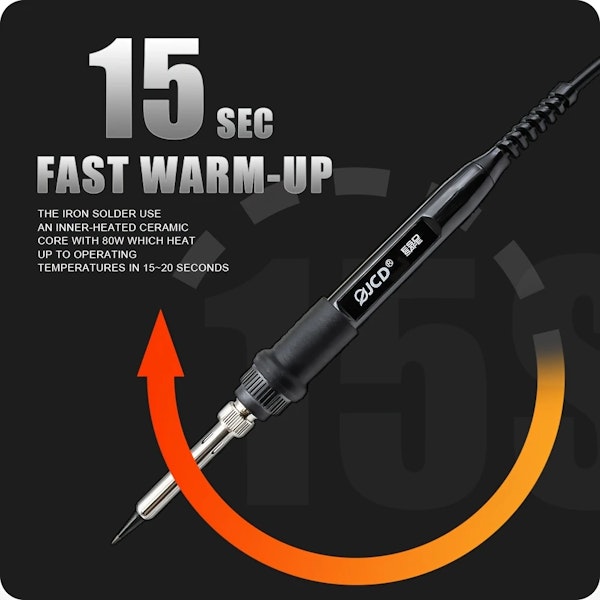

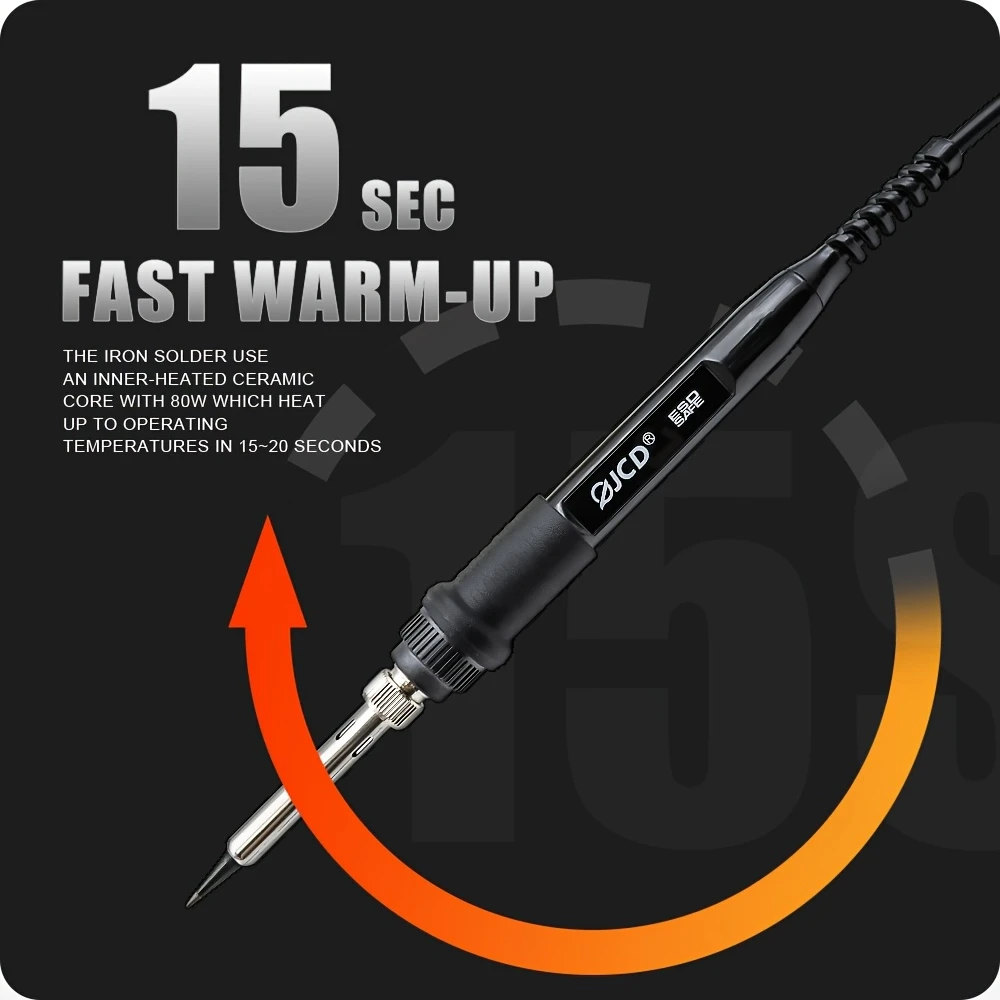

Removable 80W solder iron with silicone cord
Solder iron tips (10 pieces)
Hot air nozzles - 3 sizes (0.17''(4.4mm), 0.27''(7.0mm), 0.35''(9.0mm)
Specifications:
Model: 8898
Total power consumption: 750W
Air flow type: brushless fan with soft air
Max air flow volume: 120L/min

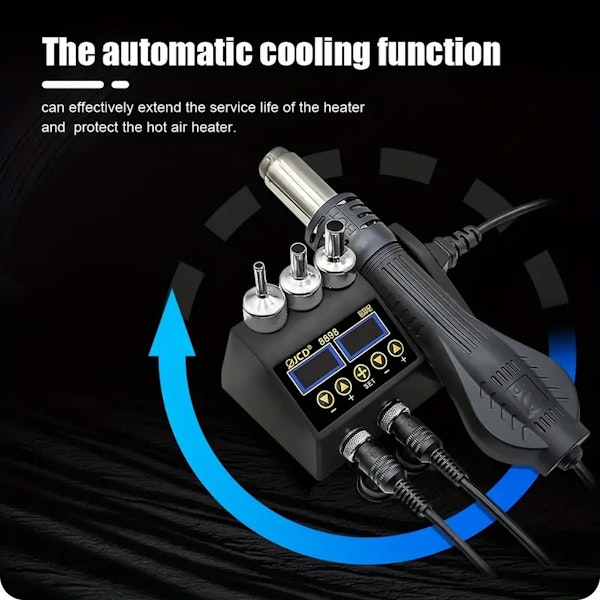

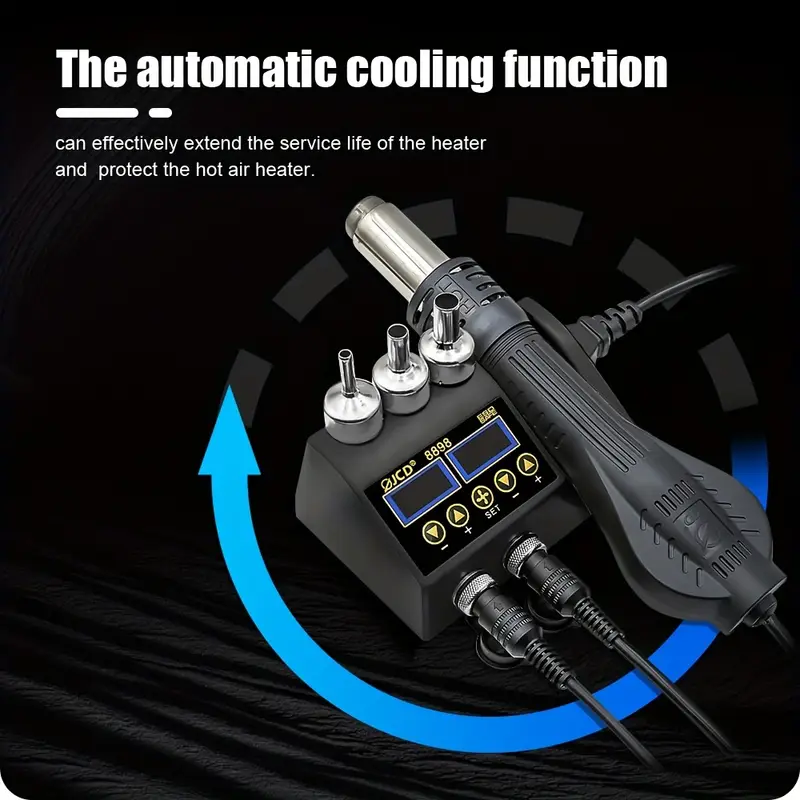

Heat gun temp range: 212 ~ 896°F/100 ~ 480°C with auto cool down safety feature
Heat gun temp. stability: ±3.6°F/±2°C
Heat gun tube material: 100% Silicone
Solder iron temp. range: 392 ~ 896°F/200 ~ 480°C
Solder iron temp. stability: ±1.8°F/±1°C
Solder iron cord material: 100% silicone
Product size: L5.83'' x W3.90'' x H5.28''/ L148 x W99 x H134mm
Unit weight: 6.2 Lbs (2.8KG)
110V～127V/AC, 60Hz North America plug
