.156 inch (3.96mm) 19 pin, female, single-sided, edge connector, SLA printed housing kit
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

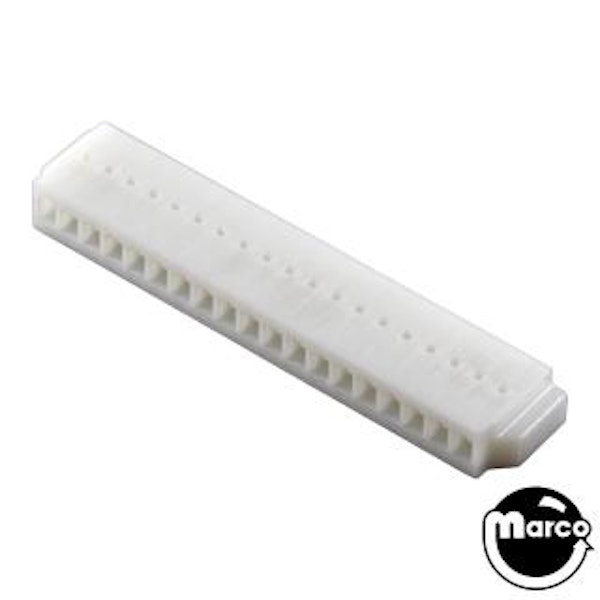

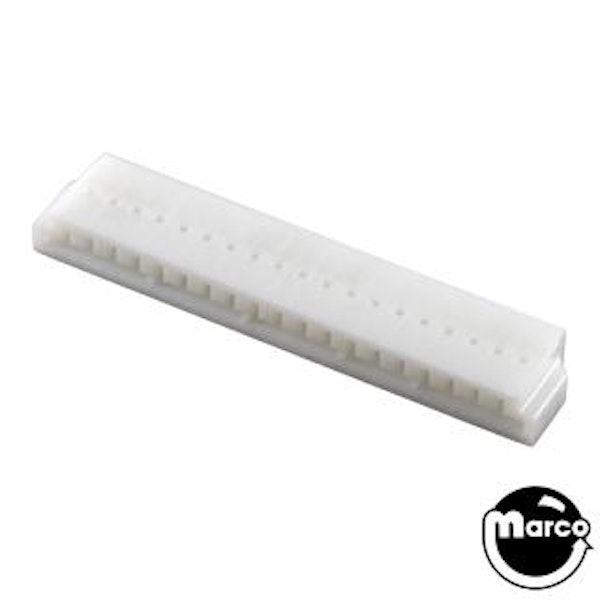

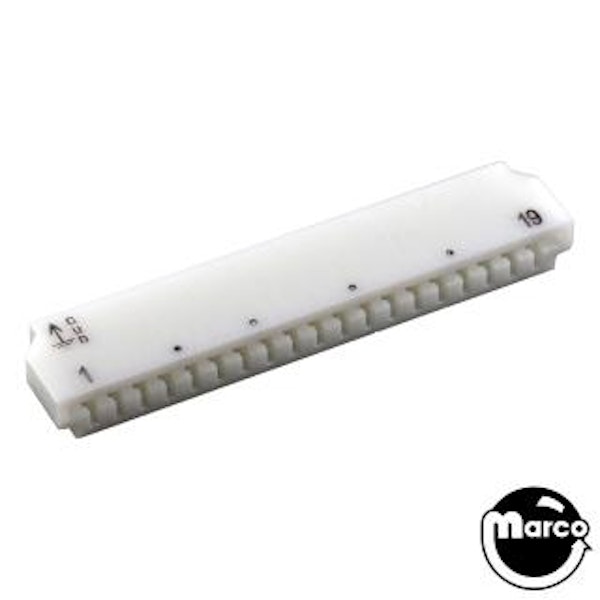

.156 inch (3.96mm) 19 pin, female, single-sided, edge connector, SLA printed housing kit
Each housing has polarizing ribs, like the OEM parts, to prevent them from being installed in the wrong location.
This kit is designed for use with Gottlieb System 1 (A1-J2) (A3-J5) (1A4-J1) (2A4-J1) (3A4-J1) (4A4-J1) (A5-J1), System 80 (A1-J6) (1A4-J1) (2A4-J1) (3A4-J1) (4A4-J1) (A5-J1), System 80A (A1-J6) (A4-J1) (A5-J1), System 80B (A1-J6) (A4-J1) pinball machines.

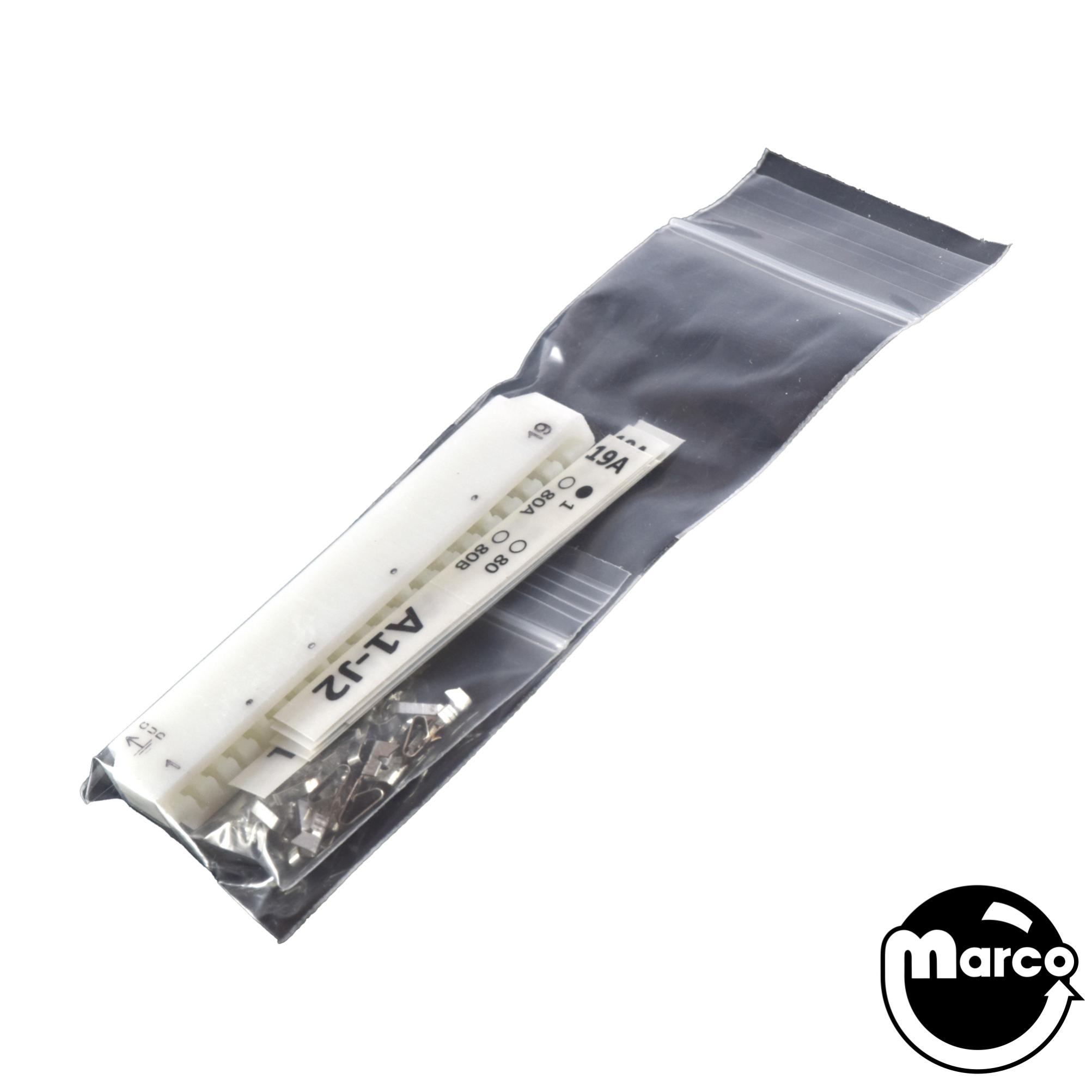

Kit Includes:
(1) SLA printed .156 inch (3.96mm) 19 pin female edge connector housing
(22) 08-52-0072 crimp terminals
(9) Labels
Reference:
09-01-6191-GUD (SLA version)
09-01-6191 CONN CARDEDGE HSG 19POS .156 NAT
0009016191 19-Position Card Edge Connector Housing 0.156" (3.96mm)
08-52-0072 Crimp Terminals
