.156 inch (3.96mm) 10 pin, female, single-sided, edge connector, SLA printed housing kit
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

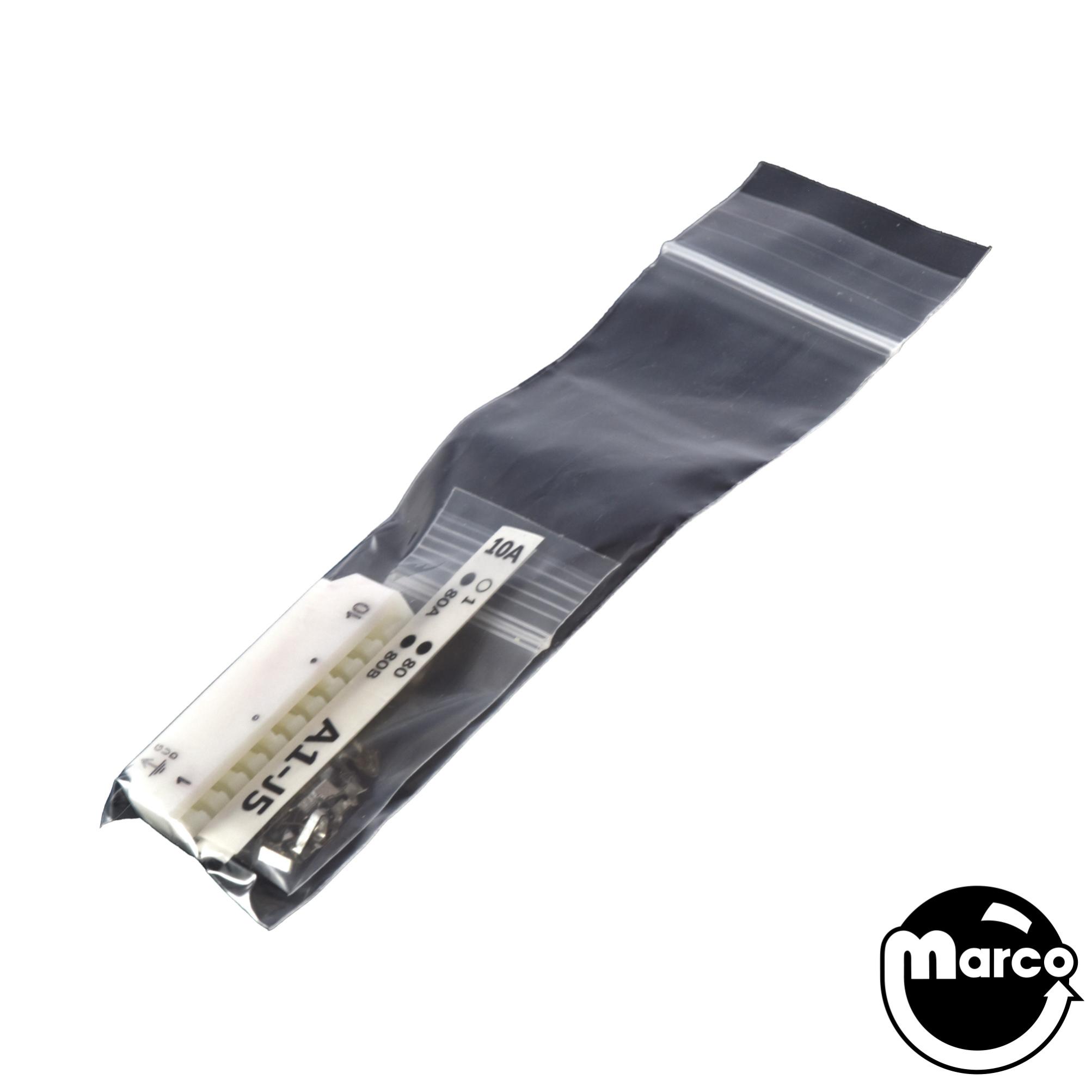

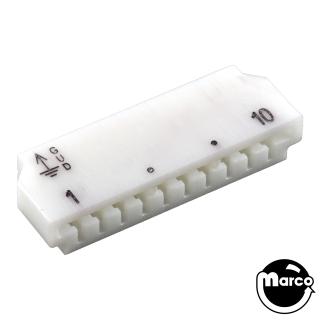

Connector - SLA printed edge single 10 pin .156 inch
.156 inch (3.96mm) 10 pin, female, single-sided, edge connector, SLA printed housing kit
.156 inch (3.96mm) 10 pin, female, single-sided, edge connector, SLA printed housing kit
Each housing has polarizing ribs, like the OEM parts, to prevent them from being installed in the wrong location.
This kit is designed for use with Gottlieb System 80 (A1-J5) (A3-J2), System 80A (A1-J5) (A3-J2), System 80B (A1-J5) (A3-J2) pinball machines.
Kit Includes:

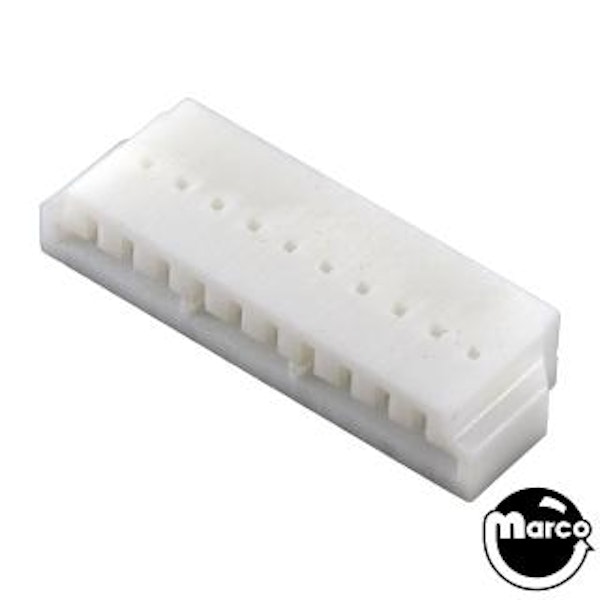

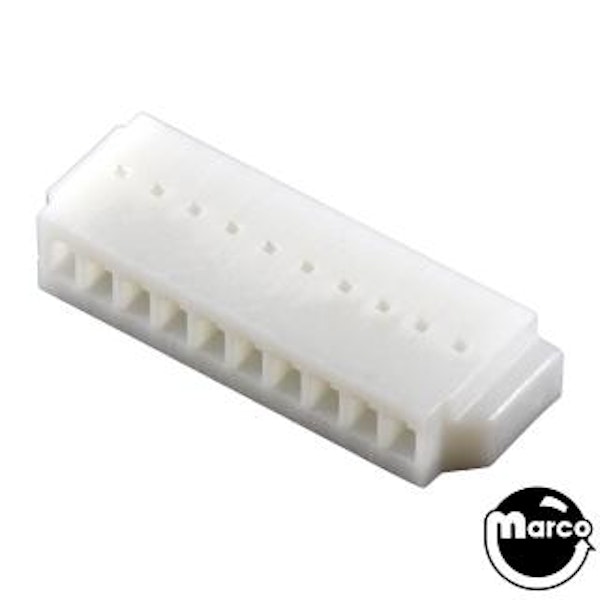

(1) SLA printed .156 inch (3.96mm) 10 pin female edge connector housing
(12) 08-52-0072 crimp terminals
(2) Labels
Reference:
09-01-6101-GUD (SLA version)
09-01-6101 CONN CARDEDGE HSG 10POS .156 NAT
0009016101 10-Position Card Edge Connector Housing 0.156" (3.96mm)
08-52-0072 Crimp Terminals
Select manufacturer to view game compatibility

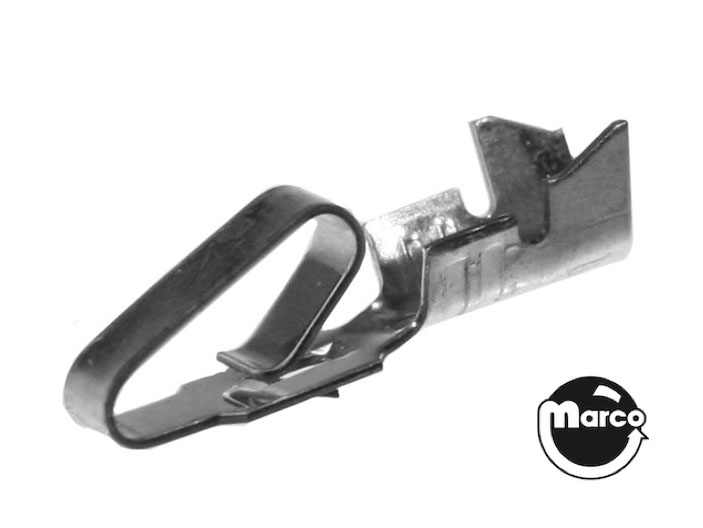

Crimp terminal - edge connector .156 inch

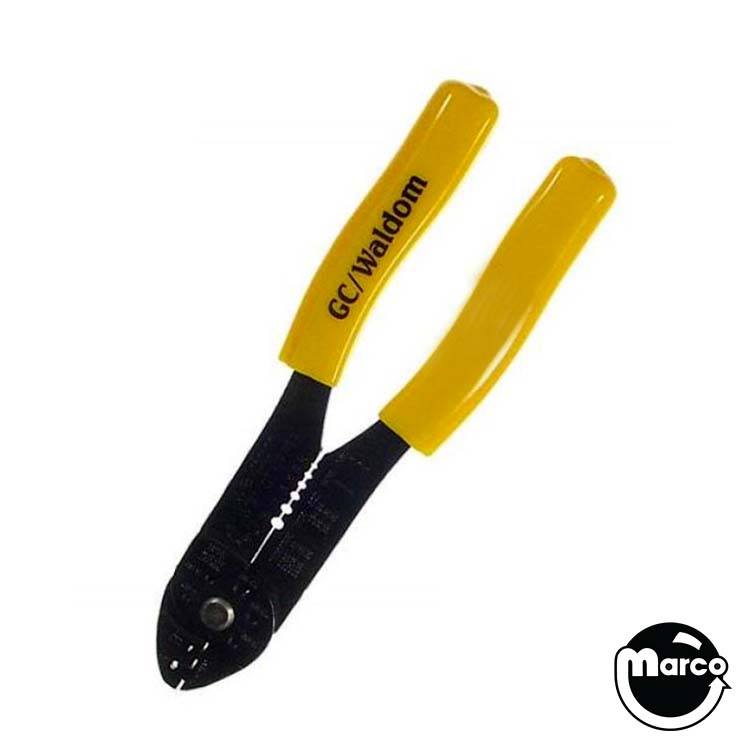

Molex/Waldom® Hand Crimper tool is ideal for fastening crimp terminals

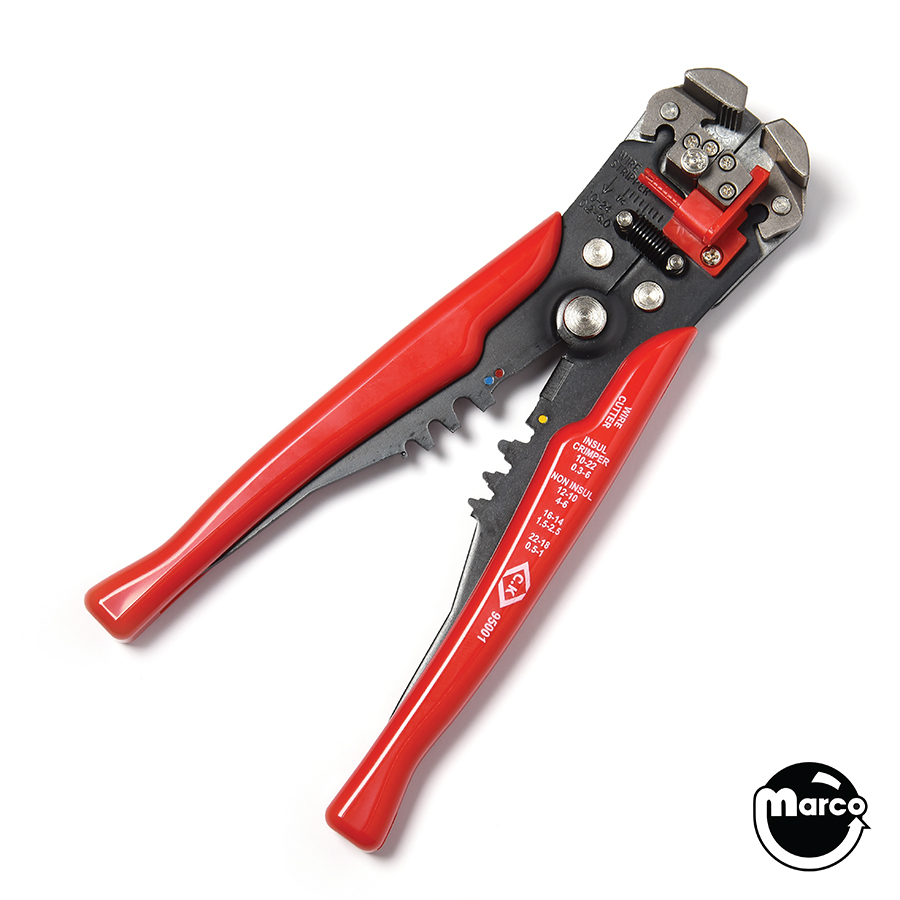

Wire stripper 7 inch automatic

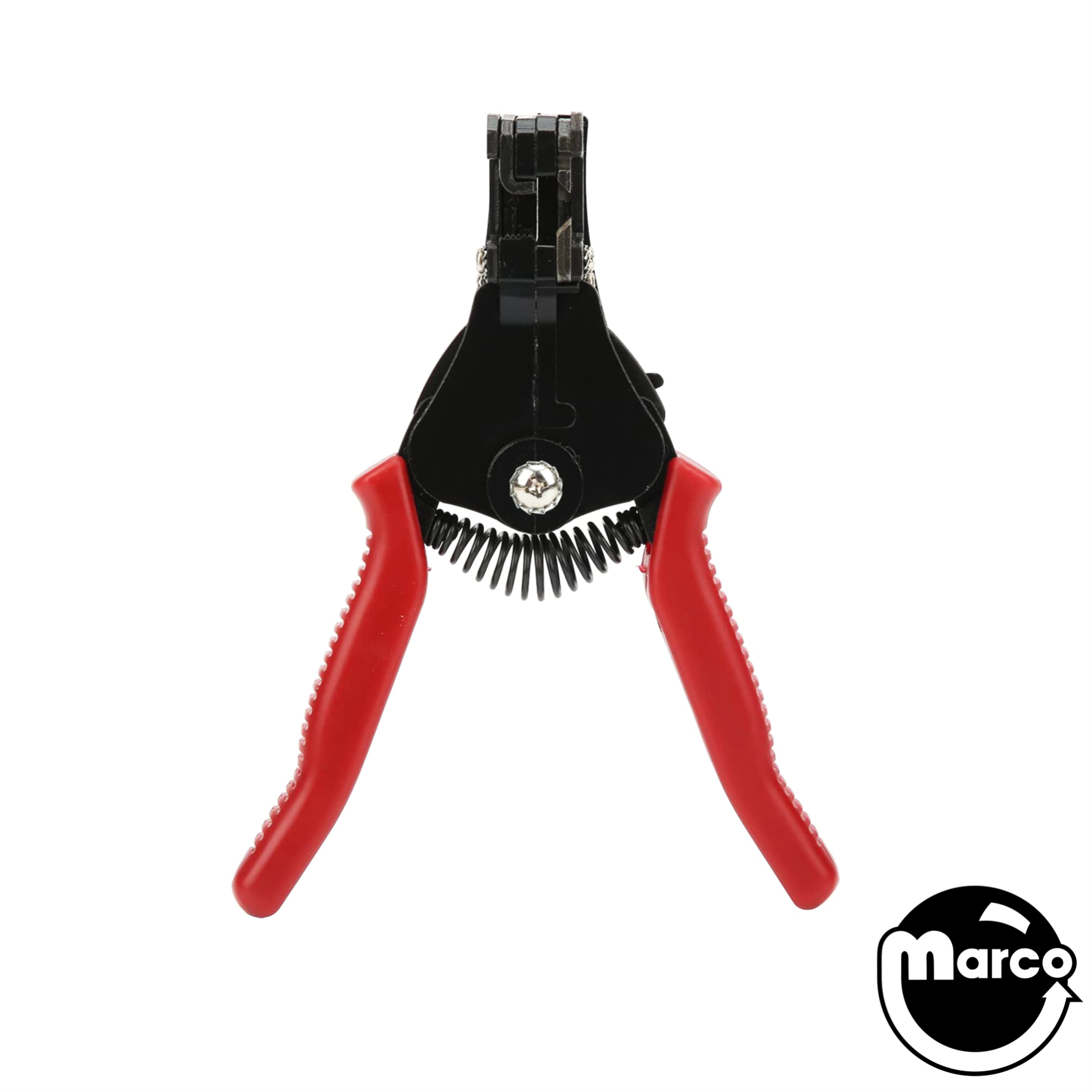

Automatic Wire Stripper 2.0

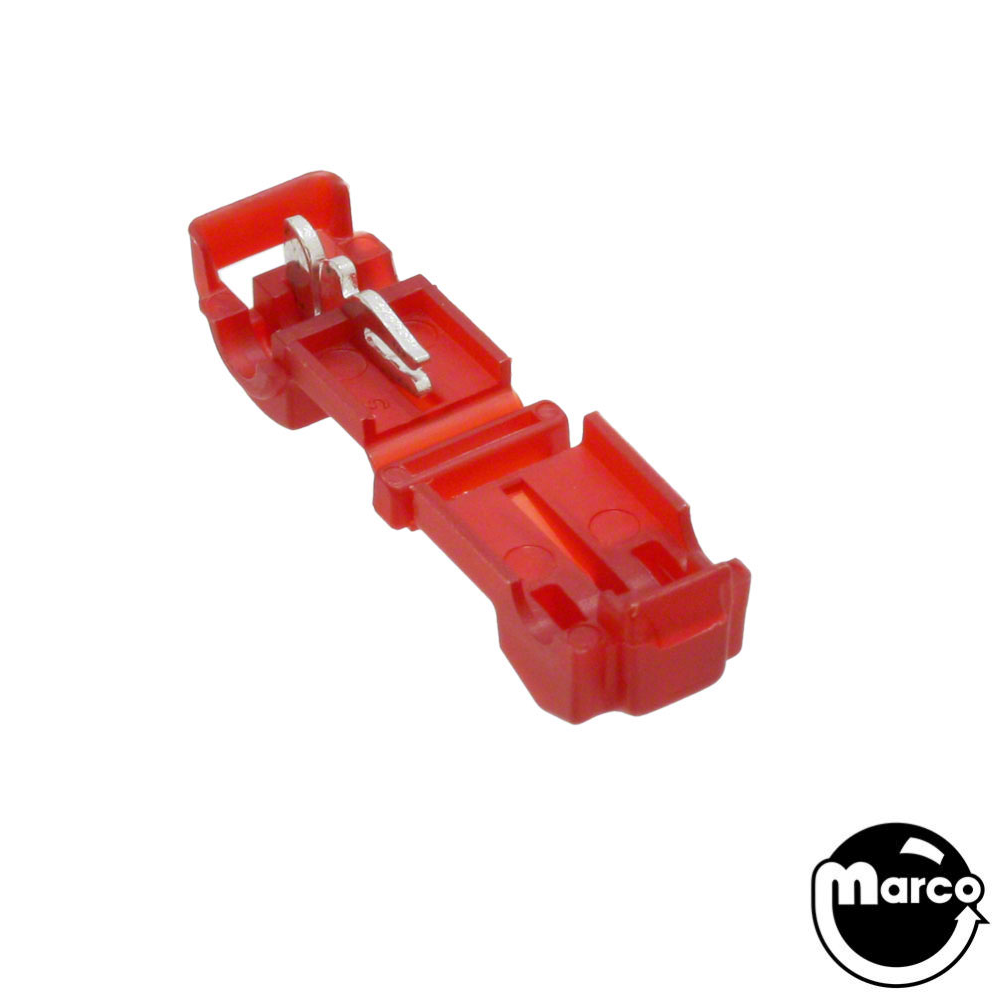

3M™ Scotchlok™ Self-Stripping Insulation Displacement Electrical T-Tap Connectors (IDC) 951...

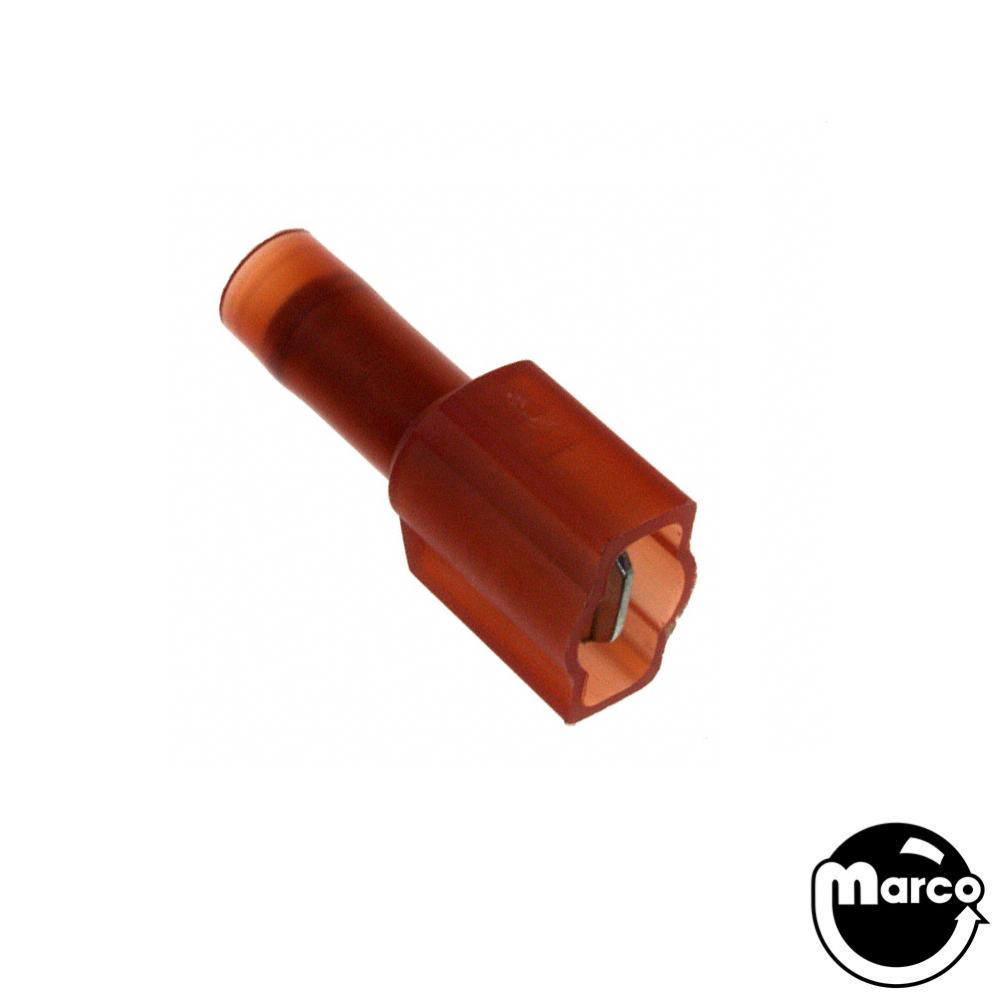

3M™ Highland™ 0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated...
