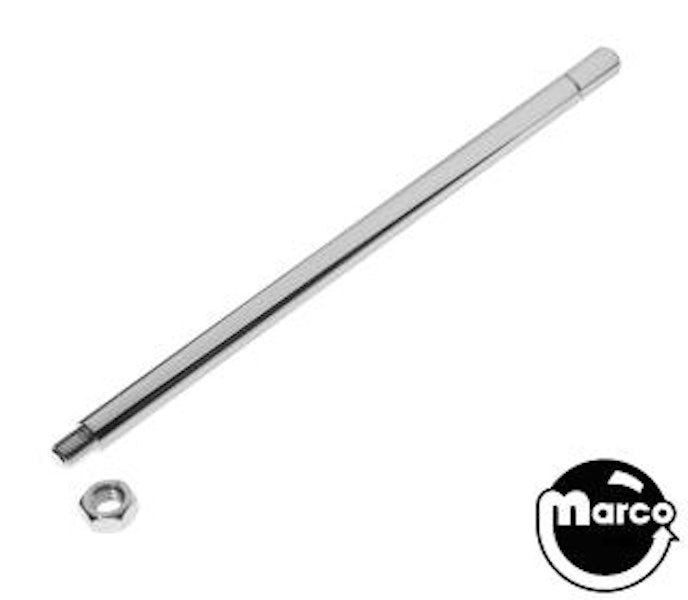

Ball shooter shaft 190mm x M8 end chrome
#A-100-12-X
Chrome finish ball shooter rod with no knob for customizing your pinball machine. Metric M8 threaded end.
Steel shaft functional length (distance from shooter tip to knob inside) is 7-1/2 inches. Standard 3/8 inch Outer Diameter shaft. Nut available separately under related items below.
Drawing dimensions:
- A = 190mm (7-1/2 inches) functional length
- B = 200mm (7-7/8 inches) overall length
- C = 173mm (6-13/16 inches) knob inside to groove
- D = 15.8mm (5/8 inch) groove to tip
Drill a 3/8 inch diameter hole in any object or toy and epoxy or screw it to the M8 x 10mm threaded end of the rod for a unique ball launching experience.
Reference:
- A-100-12
0.25 lb
