Nut metric insert M8 x 1.25mm pitch ball shooter shaft

#20-9570-M8F

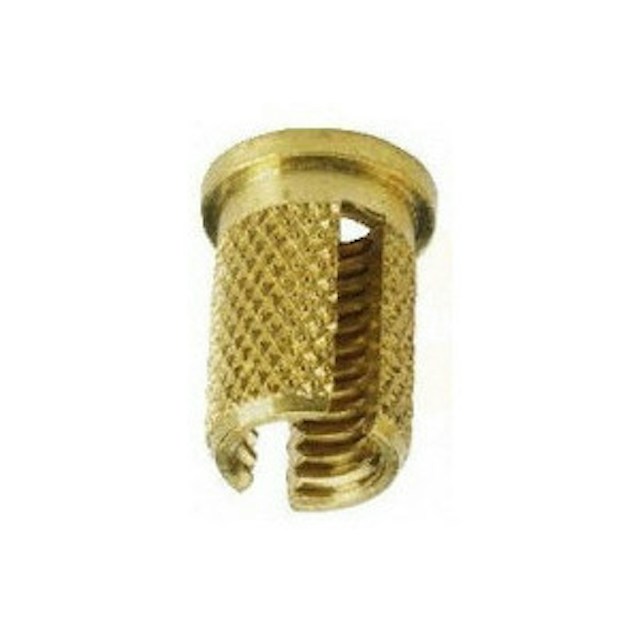

Brass metric insert expansion nut with flange and M8 x 1.25mm pitch thread.

Great for fabricating custom ball shooter rods. Use with various length shooter rods under related items tab below.

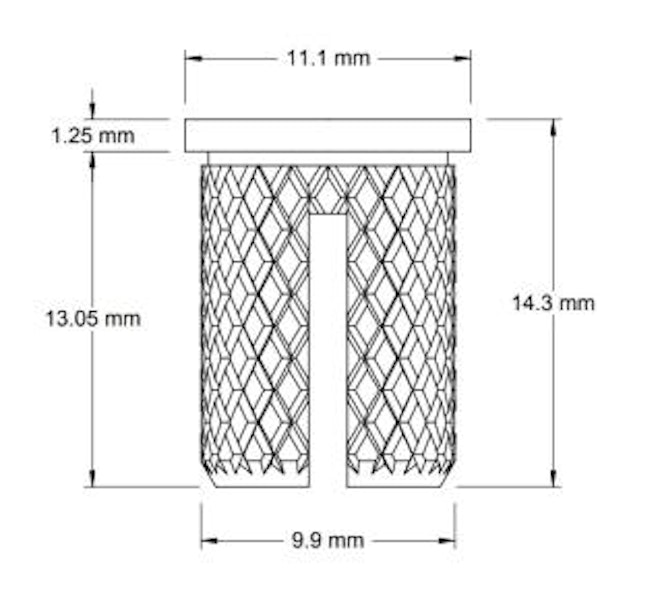

Flange diameter 11.1mm x 1.25mm thick

Fits 9.5mm diameter hole

Brass insert is nonmagnetic, corrosion resistant, and electrically conductive. Flange provides a load-bearing surface.

To install, press into a drilled hole, then install a screw to expand the insert and drive the knurls into the surrounding material to keep it secure. Installed 14.3mm length includes the flange.

0.2 oz

$1.29

In Stock
