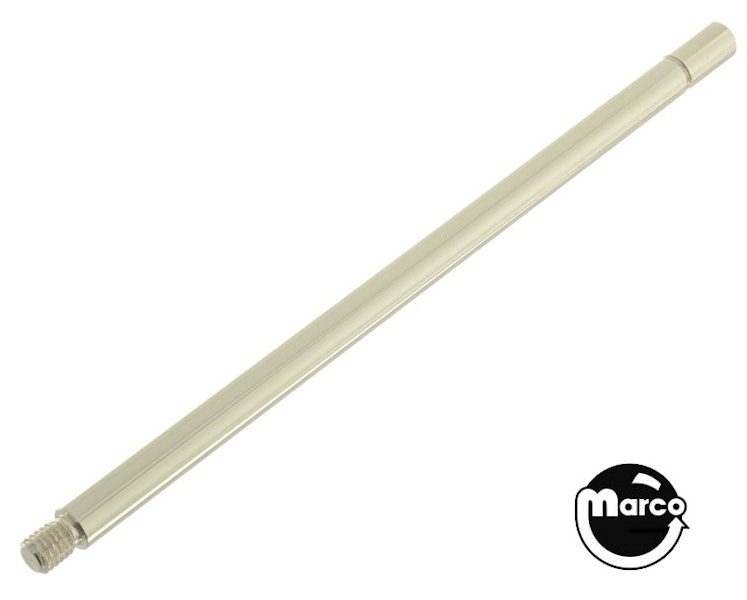

Ball shooter shaft only 200mm x M8
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

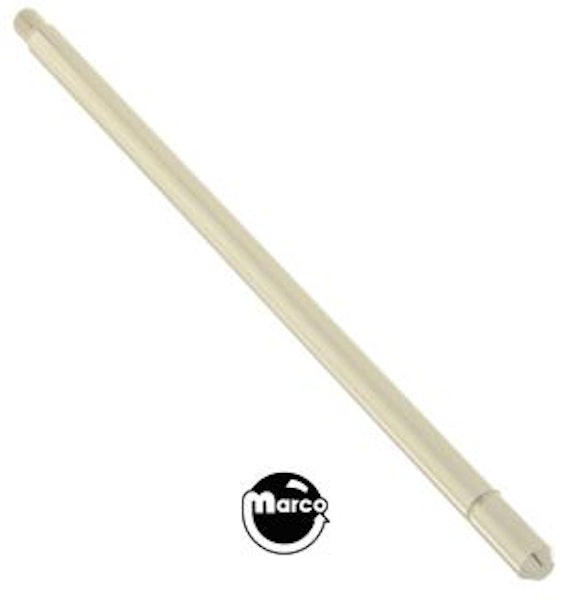

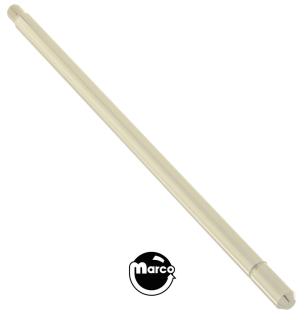

Brass finish ball shooter rod with no knob for customizing your pinball machine. Metric M8 threaded end.
Steel shaft functional length (distance from shooter tip to knob inside) is 7-7/8 inches. Standard 3/8 inch Outer Diameter shaft.
Drawing dimensions:
A = 200mm (7-7/8 inches) functional length
B = 210mm (8-1/4 inches) overall length
C = 179.6mm (7 inches) knob inside to groove
D = 19.2mm (3/4 inch) groove to tip
Drill a 3/8 inch diameter hole in any object or toy and epoxy or screw it to the M8 x 10mm threaded end of the rod for a unique ball launching experience.

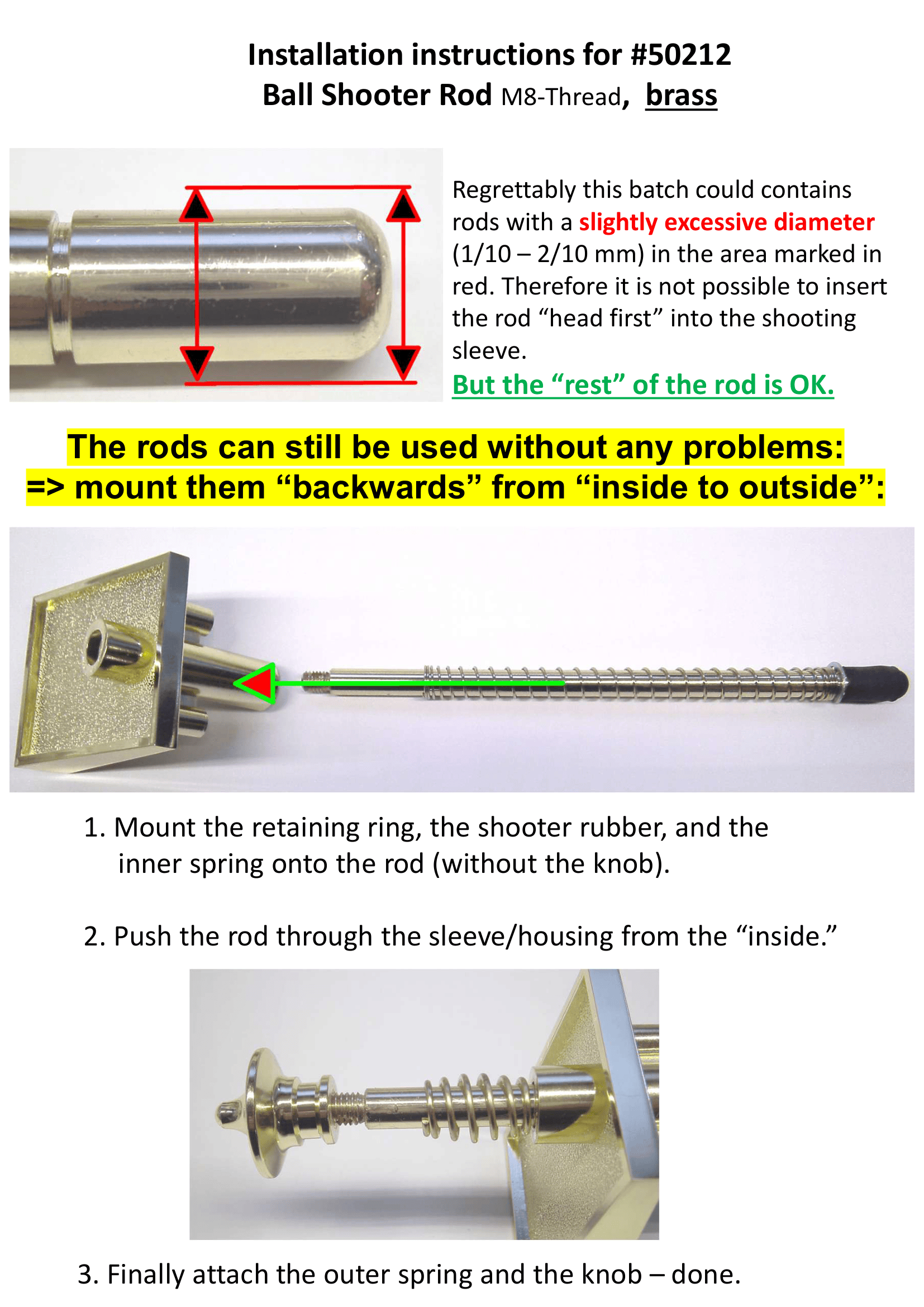

Brass plating can sometimes lead to slightly thicker spots on shooter rods. Instructions are available to print for installation below.
Reference:
20-9253-N spline end
20-9253
20-9253-B
