Ball shooter shaft 189mm x M8 end chrome
#26310-X

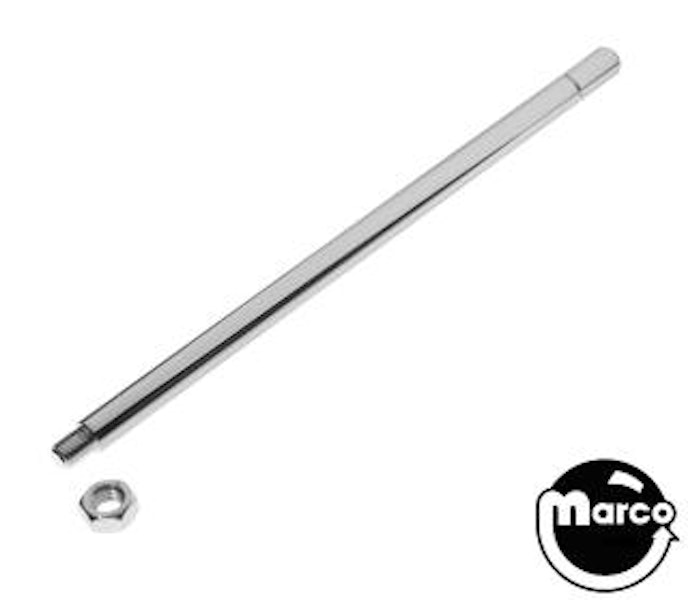

Chrome finish ball shooter rod with no knob for customizing your pinball machine. Metric M8 threaded end.
Steel shaft functional length (distance from shooter tip to knob inside) is 7-7/16 inches. Standard 3/8 inch Outer Diameter shaft.
Drawing dimensions:
- A = 189mm (7-7/16 inches) functional length
- B = 199mm (7-13/16 inches) overall length
- C = 161.4mm (6-11/32 inches) knob inside to groove
- D = 26.4mm (1-1/32 inch) groove to tip
Drill a 3/8 inch diameter hole in any object or toy and epoxy or screw it to the M8 x 10mm threaded end of the rod for a unique ball launching experience. Nut and brass inserts available separately under related items below.
Reference:
- 26310
3.7 lb
