Zinc plated finish ball shooter rod only for customizing your pinball machine.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

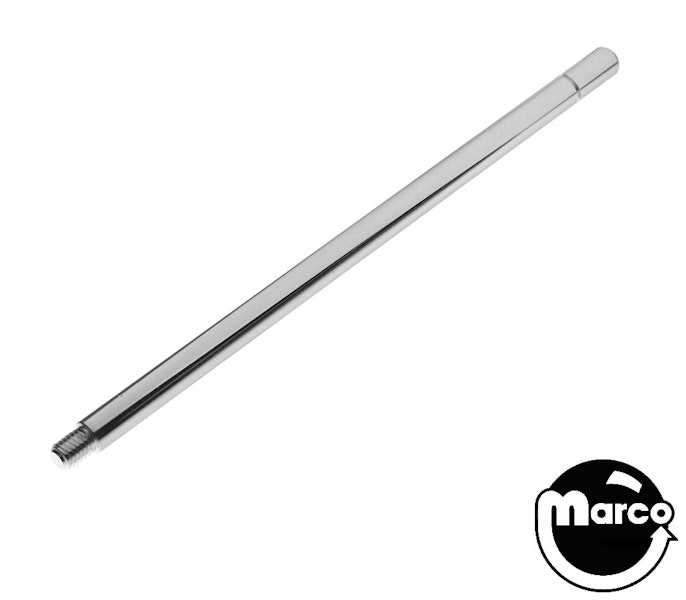

Zinc plated-finish ball shooter rod with no knob for customizing your pinball machine. Metric M8 threaded end.
Steel shaft functional length (distance from shooter tip to knob inside) is 7-7/8 inches. Standard 3/8 inch Outer Diameter shaft.
Drawing dimensions:
A = 200mm (7-7/8 inches) functional length
B = 210mm (8-1/4 inches) overall length
C = 179.6mm (7 inches) knob inside to groove
D = 19.2mm (3/4 inch) groove to tip
Drill a 3/8 inch diameter hole in any object or toy and epoxy or screw it to the M8 x 10mm threaded end of the rod for a unique ball launching experience. Nut and brass inserts available separately under related items below.

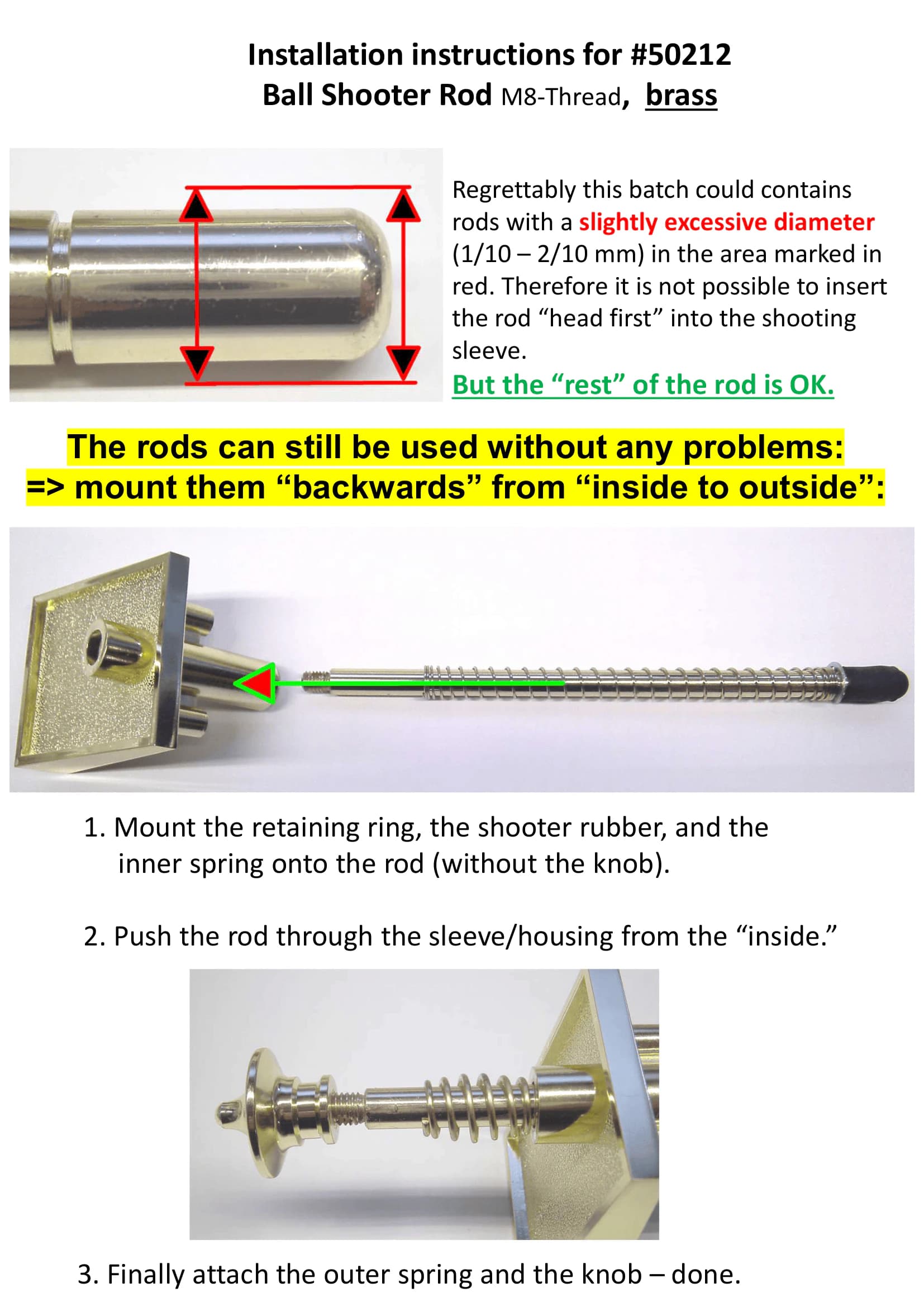

During plating process, the shooter tip end can gain some extra circumference. Please refer to the document below for installation instructions.
Reference:
20-9253-N spline end
20-9253
Select manufacturer to view game compatibility
Brass threaded insert expansion nut with flange 6-32 x 3/16

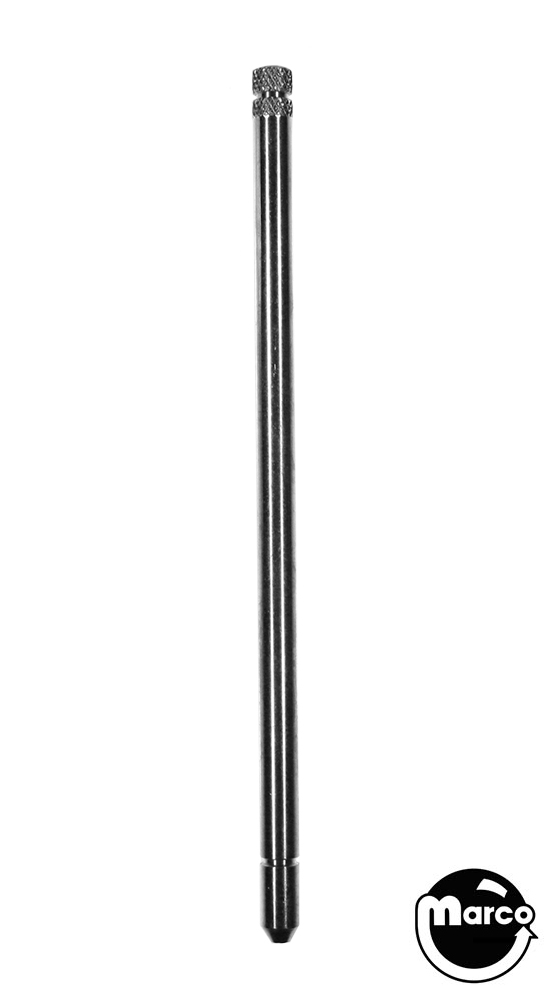

Ball shooter rod - shaft only 8 inch knurled
Used on all Williams / Bally pinball machines.

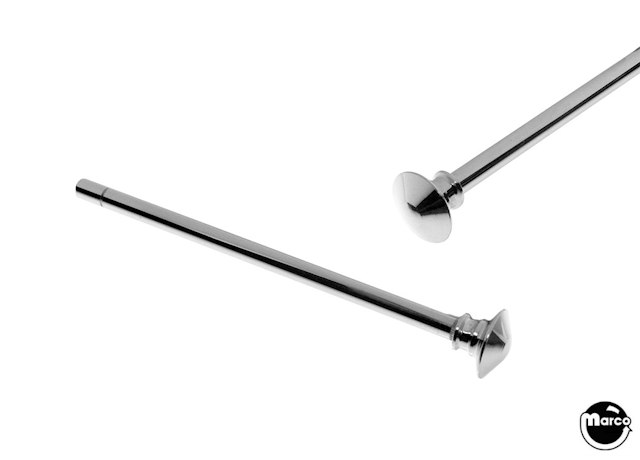

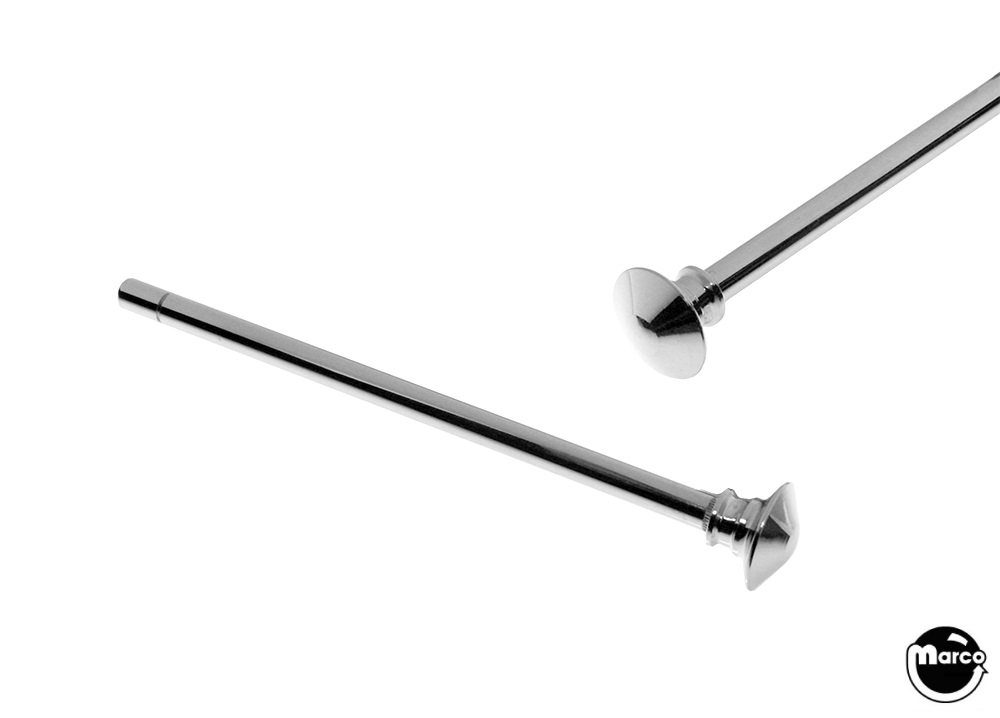

Ball shooter rod - Bally flat knob 7-3/8 inches
Ball shooter rod - Williams EM - 7-7/8 inches
Ball shooter shaft 198mm x M8 end chrome
Ball shooter shaft 189mm x M8 end chrome
Ball shooter shaft 190mm x M8 end chrome
Ball shooter shaft 182mm x M8 end chrome
Universal fit white rubber tip for use on all ball shooter rods.
Thread Lock - medium removeable 2 ml

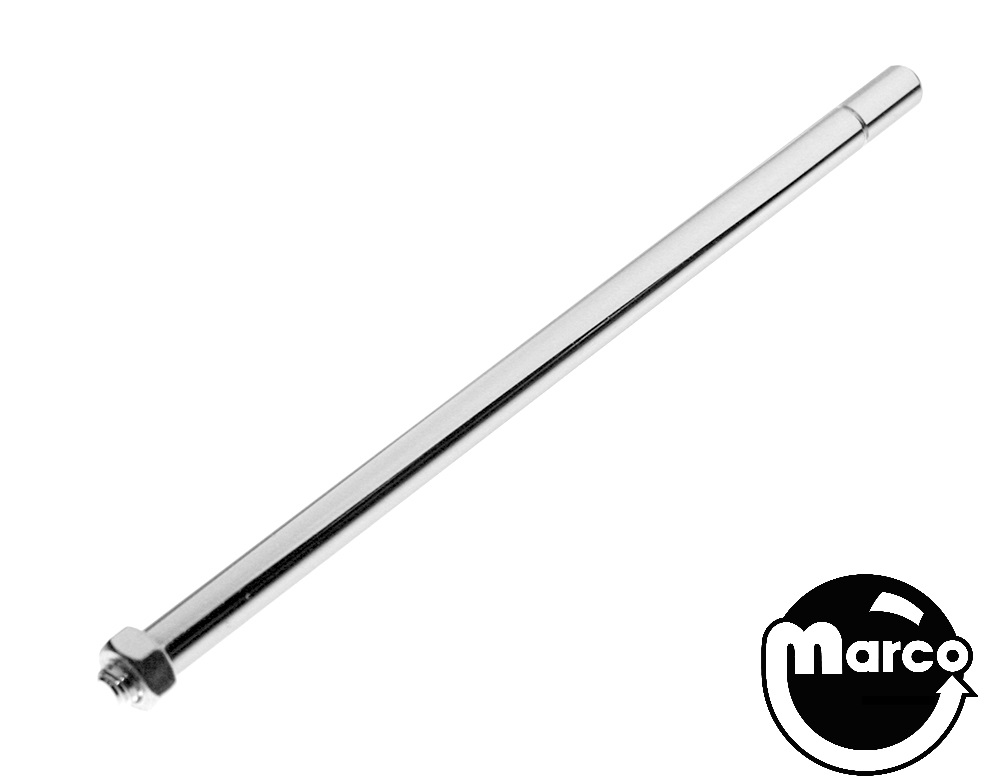

Ball shooter shaft 200mm x M8
