Ball shooter shaft 198mm x M8 end chrome
#A-100-15-X

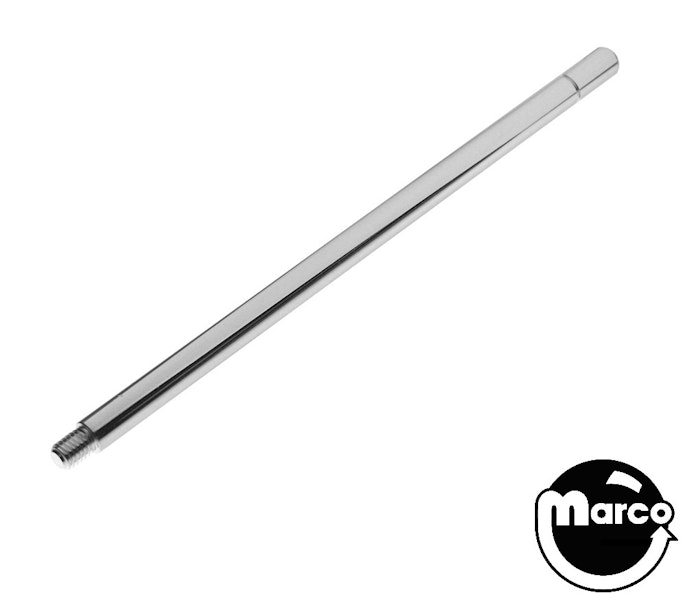

Chrome finish ball shooter rod with no knob for customizing your pinball machine. Metric M8 threaded end.
Steel shaft functional length (distance from shooter tip to knob inside) is 7-25/32 inches. Standard 3/8 inch Outer Diameter shaft.
Drawing dimensions:
- A = 198mm (7-25/32 inches) functional length
- B = 208mm (8-3/16 inches) overall length
- C = 168mm (6-5/8 inches) knob inside to groove
- D = 28.8mm (1-1/8 inch) groove to tip
Drill a 3/8 inch diameter hole in any object or toy and epoxy or screw it to the M8 x 10mm threaded end of the rod for a unique ball launching experience. Nut and brass inserts available separately under related items below.
Reference:
- A-100-15
0.25 lb
