Connector - edge double 48 pin (24 x 2)
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

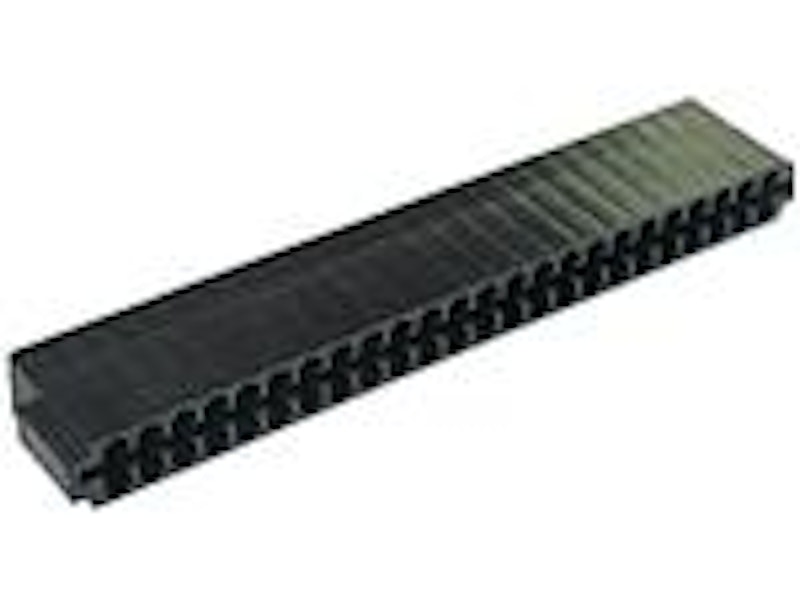

48 circuit double sided circuit board female edge connector in 2 x 24 layout uses 08-52-0072 crimp terminals.
Used on early Gottlieb solid state pinball machine systems between the CPU board and the driver board labeled as A1-J4 on the CPU board, and A3-J1 on the lamp & solenoid driver board.
Reference:
09-50-5245 double side edge 48 pin housing
08-52-0072 crimp terminal
Select manufacturer to view game compatibility
18 position Insulation Displacement Connector (IDC).

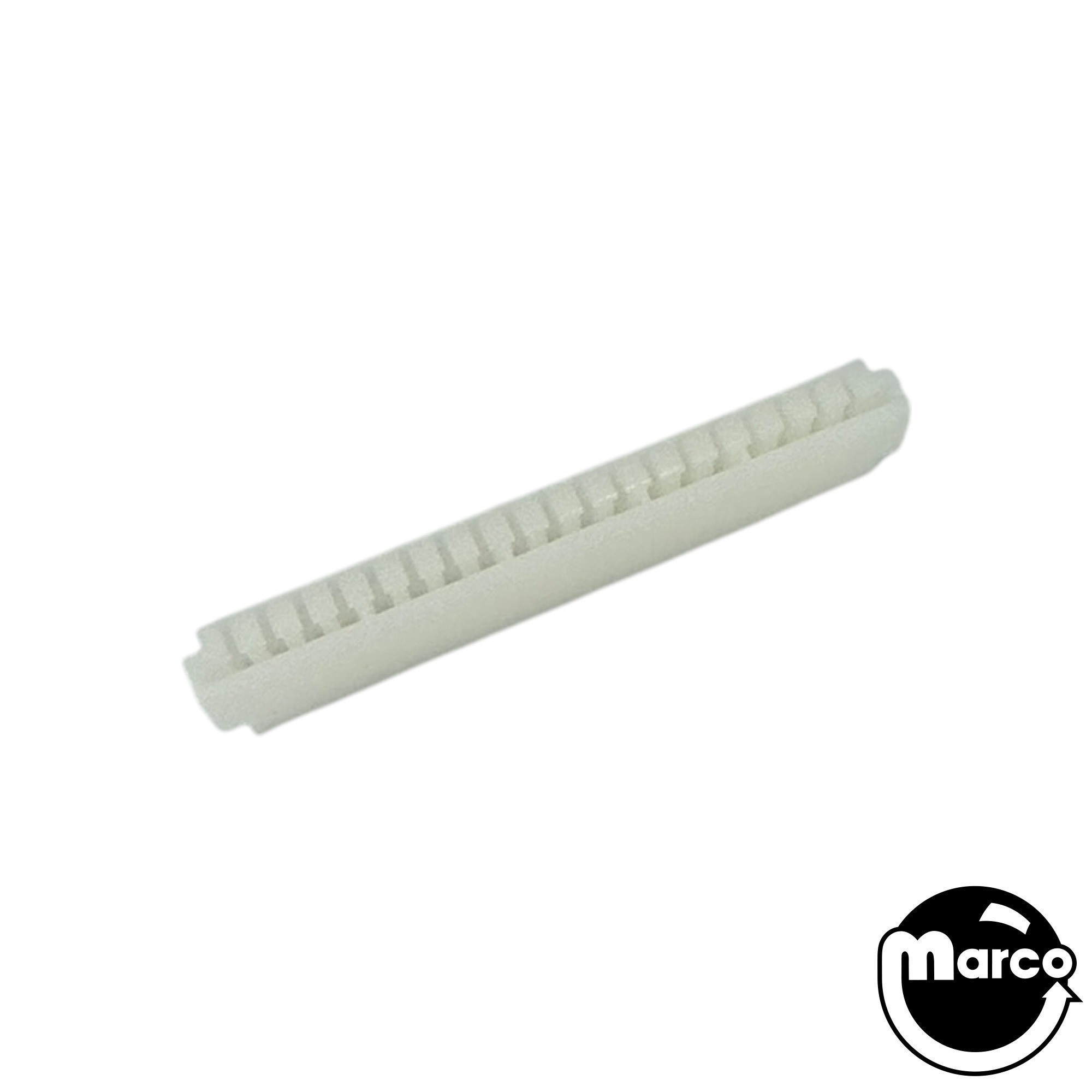

USE 09-01-6191-GUD
Crimp terminal - bifurcated .156 inch (08-03-0303 or 08-03-0304)
Molex/Waldom® Hand Crimper tool is ideal for fastening crimp terminals

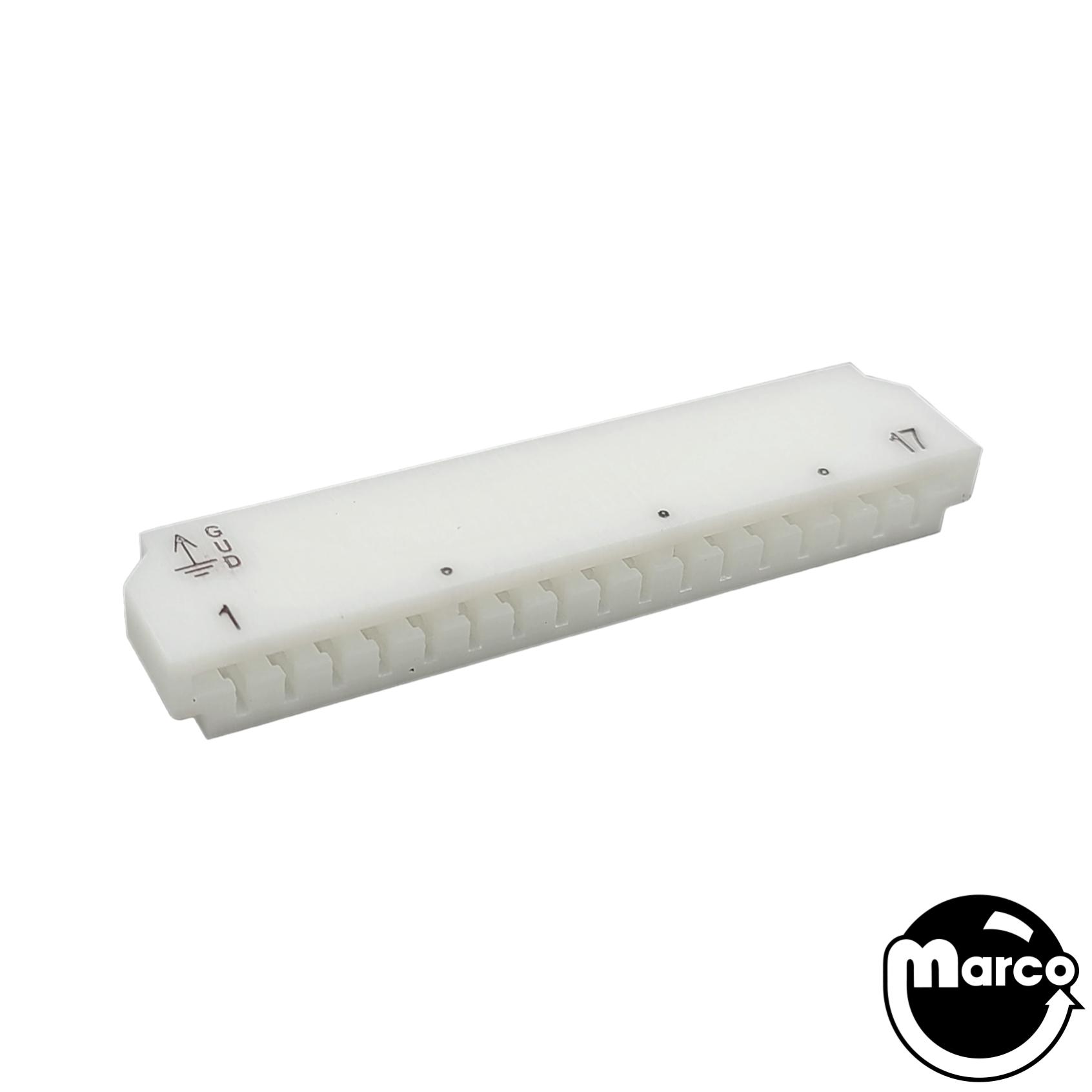

USE 09-01-6171-GUD
3M™ Scotchlok™ Self-Stripping Insulation Displacement Electrical T-Tap Connectors (IDC) 951...
3M™ Highland™ 0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated...
