Designed for non-Fliptronic® 2/1988 - 8/1991 Williams and Bally pinball machines.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Includes parts to rebuild both left flipper units and one right flipper unit.
Designed for non-Fliptronic® 1985 - 1991 Williams and Bally machines that use NORMALLY CLOSED (contacts are touching when flipper is at rest) end-of-stroke switches and spark-suppression capacitors. Check your game manual for flipper description.
Includes flipper feeler gauge to assist in adjusting bearing to crank gap adjustment.
The factory recommends installing flipper maintenance kits every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

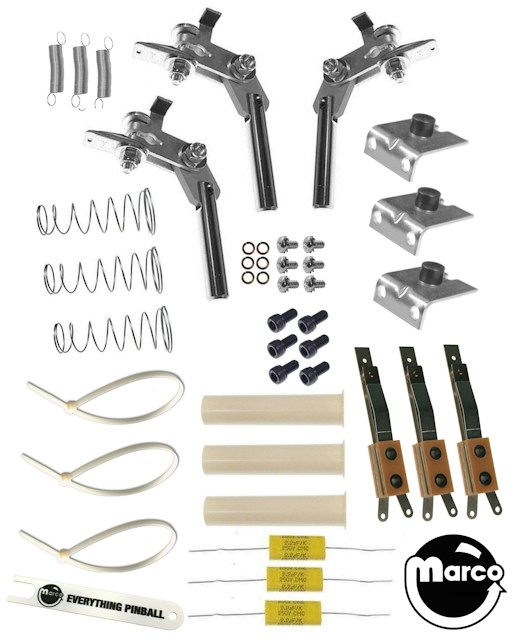

Parts included in this kit:
(9.99) B-10655-L - Plunger & crank assembly WPC early left
(2.99) C2.2M250VA-NP - Capacitor 2.2 uF 250v axial
(2.49) A-12111 - Coil stop
(0.69) 10-376 - Spring
(4.99) 03-7811 - Leaf switch End of Stroke normally closed ASW-A20-1
(0.19) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket
(0.02) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc
(0.29) 03-7066-5 - Coil sleeve
(9.99) B-10655-R - Plunger & crank assembly WPC early right
(0.19) 77-CT6-1 - Cable tie 6 inch single
(0.59) 03-8194 - Flipper Gauge
Reference:
WFLKIT-2L1R
Original Williams assembly No.: A-13524-8
Select manufacturer to view game compatibility
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Common tapered style compression flipper return spring
Yellow wrapper 2.2 uF @ 250 volt axial lead non-polarized metalized polyester. 125-5002-00
#10 steel split lock washer. Zinc plated.
Early 1990s Williams left side flipper crank, plunger and link assembly.
Williams/Bally flipper coil stop. Reference: A-12111
Flipper end of stroke switch for electronic and electromechanical pinball machines.
Black 10-32 X 3/8 hex socket head cap screw
Williams right side flipper crank, plunger and link assembly for early flippers
Single 6 inch Cable Tie
Plastic thickness gauge for adjusting flipper bushing gap
Plastic thickness gauge for adjusting flipper bushing gap
