Williams pinball machine flipper rebuild kit includes...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Includes parts to rebuild two right flipper units and one left flipper unit. Designed for non-Fliptronic 2/1988 - 3/1991 Williams and Bally machines that use NORMALLY CLOSED (contacts are touching when flipper is at rest) end-of-stroke switches and spark-suppression capacitors. Includes flipper feeler gauge to assist in correct bushing to crank gap adjustment.
Check your game manual for flipper description and to be aware of any game specific needs that may be required. Any secondary switches are not included.
Factory recommendations are installing flipper kits every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

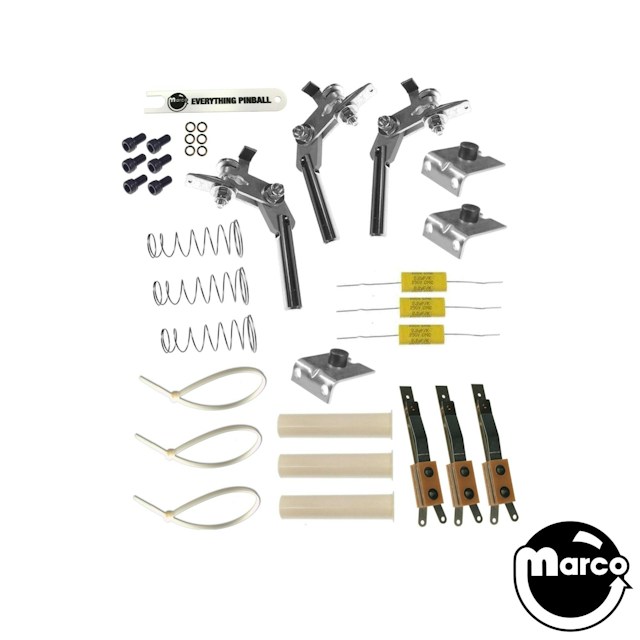

Parts included in this kit:
(1) B-10655-L - Plunger & crank assembly WPC early left
(2) B-10655-R - Plunger & crank assembly WPC early right
(3) A-12111 - Coil stop
(3) 10-376 - Spring
(3) 03-7811 - Leaf switch End of Stroke normally closed ASW-A20-1
(6) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(6) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(3) 03-7066-5 - Coil sleeve
(3) C2.2M250VA-NP - Capacitor 2.2 uF 250v axial NP yellow 125-50...
(3) 77-CT6-1 - Cable tie 6 inch single
(1) 03-8194 - Flipper Gauge
Reference:
A-13524-8
Select manufacturer to view game compatibility
#10 steel split lock washer. Zinc plated.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Yellow wrapper 2.2 uF @ 250 volt axial lead non-polarized metalized polyester. 125-5002-00
Common tapered style compression flipper return spring
Black 10-32 X 3/8 hex socket head cap screw
Single 6 inch Cable Tie
Flipper end of stroke switch for electronic and electromechanical pinball machines.
Plastic thickness gauge for adjusting flipper bushing gap
Williams/Bally flipper coil stop. Reference: A-12111
Williams right side flipper crank, plunger and link assembly for early flippers
Early 1990s Williams left side flipper crank, plunger and link assembly.
White 3 inch molded flipper bat with a 2-2/16 inch shaft
