46 piece kit to overhaul the troublesome J1, J2, and J3 connectors.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

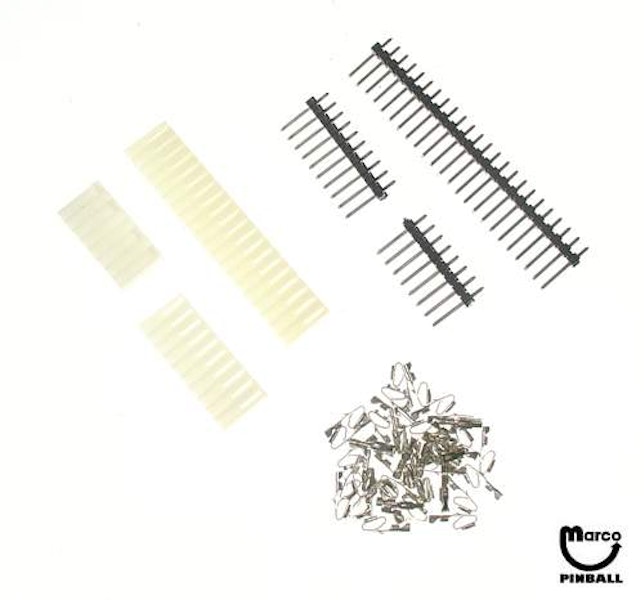

46 piece kit will completely overhaul the troublesome J1, J2, and J3 connectors on early solid state Bally KISS, SPACE INVADERS and FUTURE SPA pinball machine AS-2518-49 power/rectifier boards.
Includes 40 pieces of the high current capacity Trifurcon crimp terminals, 9, 10, and 20 circuit housings and male terminals.
Reference:
CKBLY-1
AS-2877-3 power transformer module
AS-2518-49 rectifier board assembly
E-00715-0033 9 pin wafer connector
E-00715-0034 10 pin wafer connector
Suggested tool:
Crimping Tool
Select manufacturer to view game compatibility
0.156 inch on center spacing Trifurcon crimp terminals for 18-20 AWG wire.

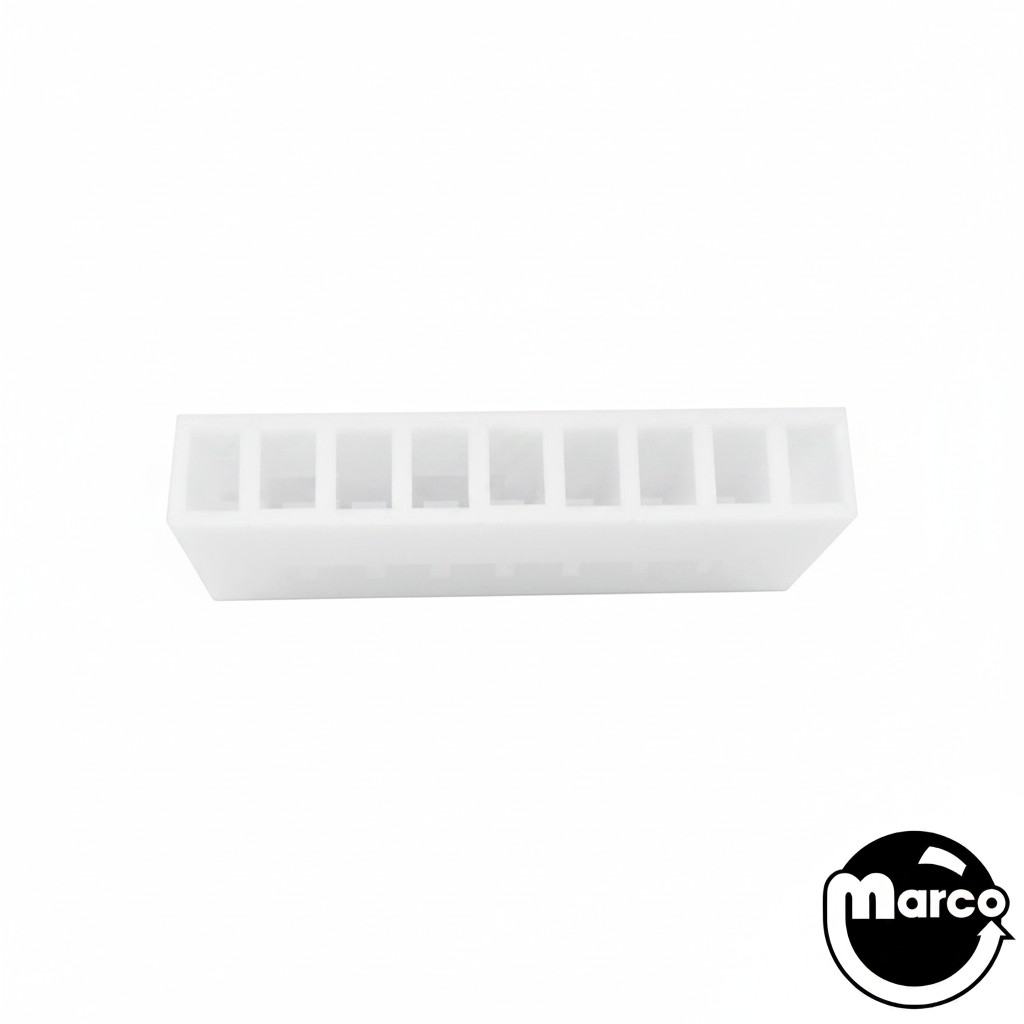

.156 inch 9 Position female molex housing.
.156 inch 10 Position female molex housing. Reaplcement for 09-50-3101.
.156 inch 20 Position female molex housing.
.156 inch 9 Position male molex header

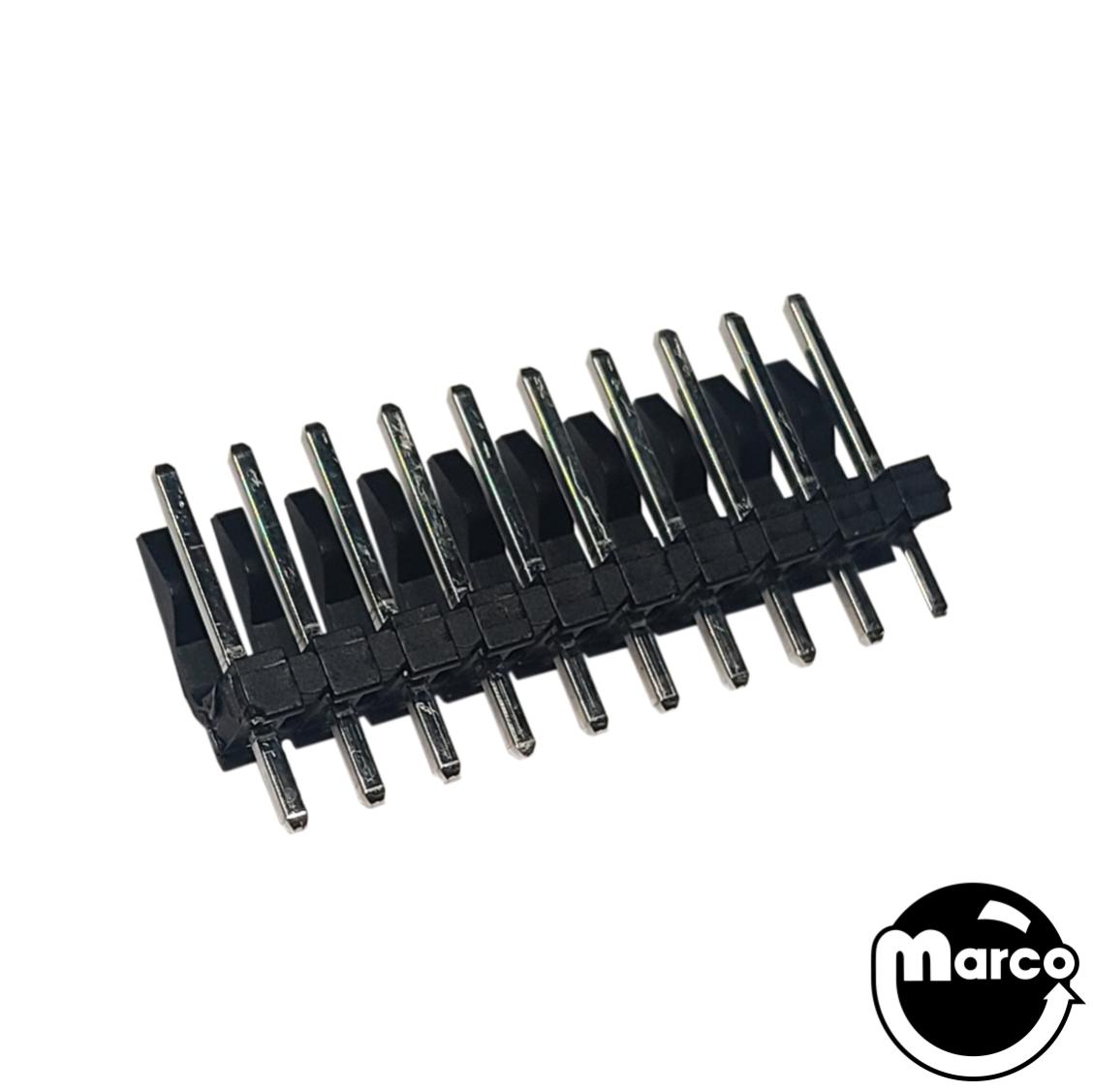

.156 inch 10 position male header

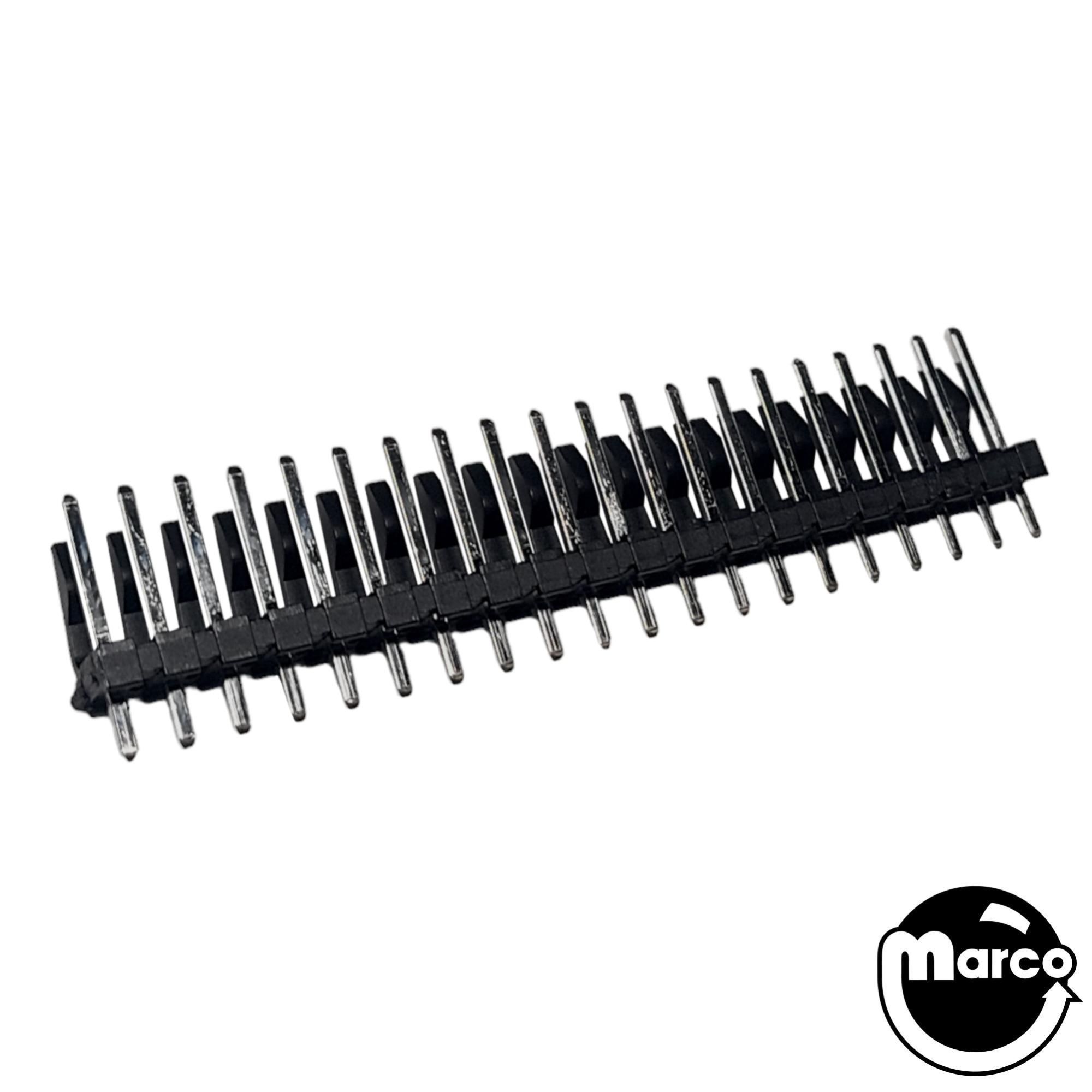

.156 inch 20 Position male molex header. Williams# 5791-12273-20
