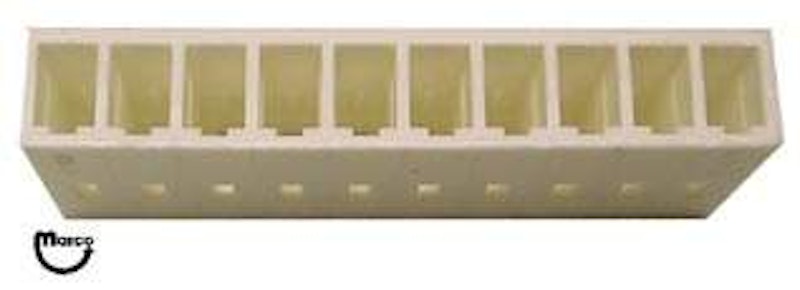

.156 inch 10 Position female molex housing. Reaplcement for 09-50-3101.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
0.156" on-center spacing, 10-position female Molex housing.
Reference:
CF15610
E-734-10
09-50-7101
09-50-3101
Molex/Waldom® Hand Crimper tool is ideal for fastening crimp terminals
46 piece kit will completely overhaul the troublesome J1, J2, and J3 connectors on TA-100 and AS-2518-18
Plastic plug for keying .156" center spacing Molex female housings.
.156 inch 10 position male header
USE 08-52-0113 AWG 18-20 wire
0.156 inch on center spacing standard crimp terminals. Replaced by 5822-09076-00
Connector .156 inch 13 position female 09-50-7131

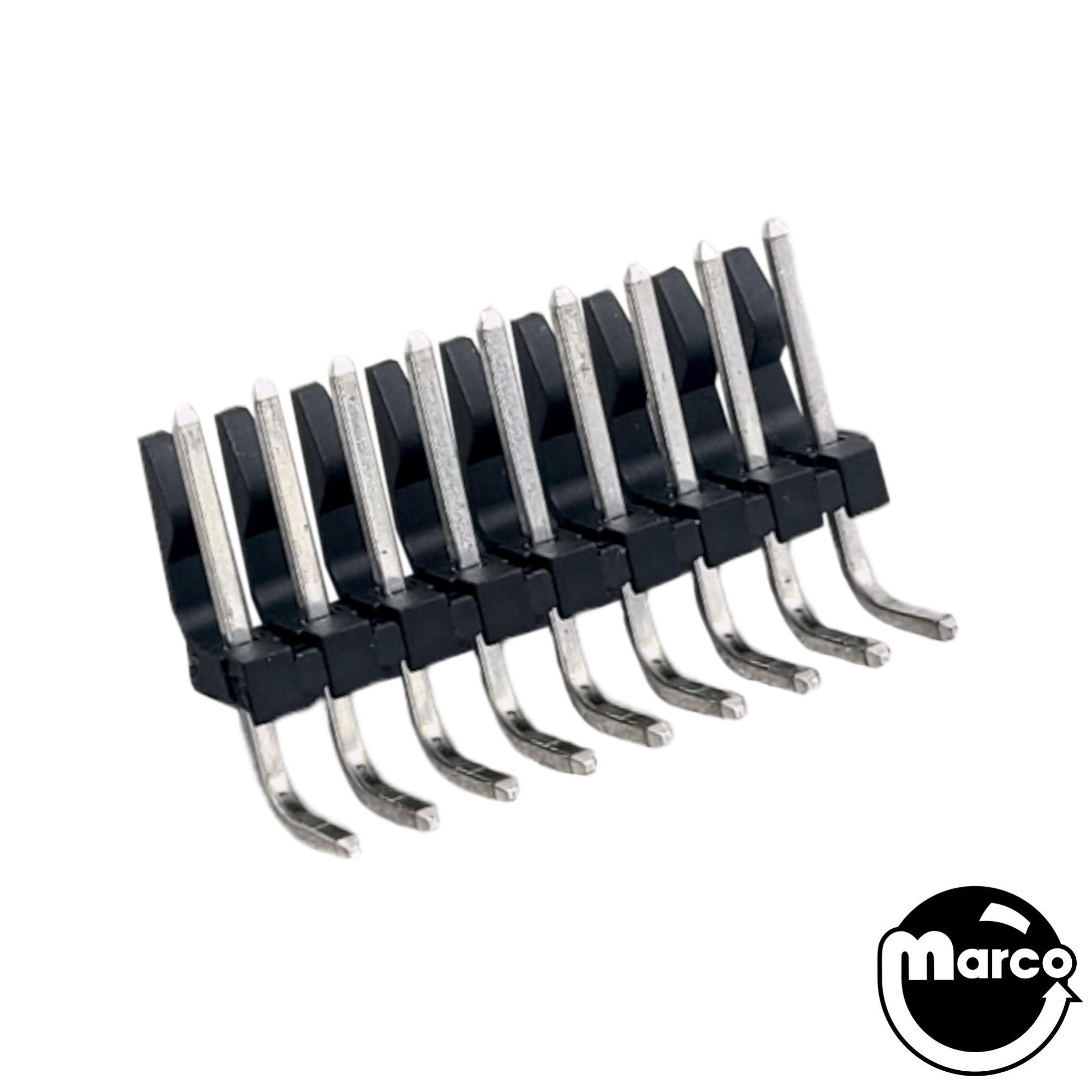

Header .156 inch 9 position Right Angle
