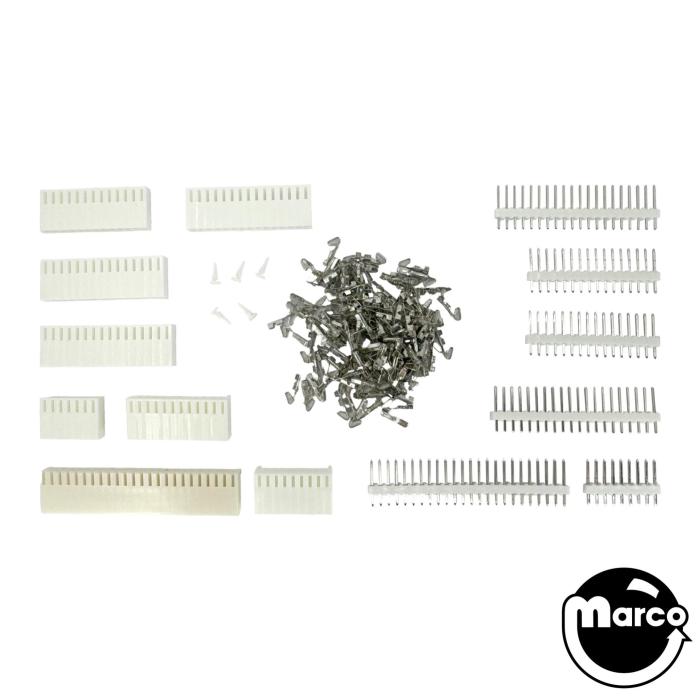

Connector rebuild kit for wiring harness and board headers on all Bally and SEI Stern boards
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
(2) CF10015
(1) CF10016
(1) CF10024
(2) CM10009
(2) CM10016
(2) CM10020
(1) CM10024
(5) CF100K
(130) CT100S
Installation Notes
Information about the differences between the Bally AS-2518-17 MPU and the AS-2518-35 MPU:
The AS-2518-35 MPU features advancements that expand its capabilities, necessitating an additional connection on J5, making it one pin longer. This kit supports both MPU versions but may require trimming or omitting a connector pin for the AS-2518-17 version.
Connector Reference:
AS-2518-17
J1 - 28 Pins: CF10013 + CF10015 and CM10020 + CM10009(*)
J2 - 15 Pins: CF10015 and CM10016(*)
J3 - 16 Pins: CF10016 and CM10016
J4 - 19 Pins: CF10007 + CF10012 and CM10020(*)
J5 - 32 Pins: CF10024 + CF10009(*) and CM10024 + CM10009(*)
AS-2518-35
J1 - 28 Pins: CF10013 + CF10015 and CM10020 + CM10009(*)
J2 - 15 Pins: CF10015 and CM10016(*)
J3 - 16 Pins: CF10016 and CM10016
J4 - 19 Pins: CF10007 + CF10012 and CM10020(*)
J5 - 33 Pins: CF10024 + CF10009 and CM10024 + CM10009
Installation Notes:
J1 - 28 pin: cut off 1 position on CM10009(*)
J2 - 15 pin: cut off 1 position on CM10016(*)
J4 - 19 pin: cut off 1 position on CM10020(*)
J5 - 32 pin: cut off 1 position on each CF10009(*) and CM10009(*) FOR AS-2518-17 ONLY
Reference:
CKBLY-MPU
Select manufacturer to view game compatibility
Plastic plug for keying .100" center spacing Molex female housings.
Used in many early Bally and Stern pinball machines.
Connector .100 inch 13 position female
Connector .100 inch 9 position female 22-01-3097
Connector .100 inch 7 position female
0.100 12 postion locking female housing.
0.100 inch 15 position female housing. Williams 5792-000690-15
.100" 16 Position female molex housing.
.100 inch 24 Position female molex housing.

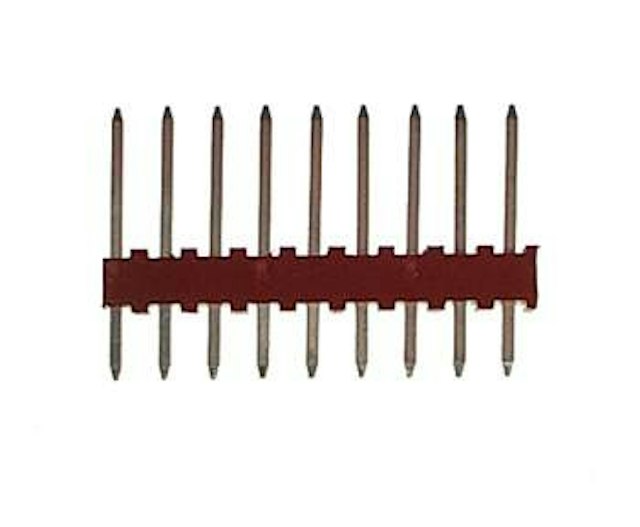

.100 inch spacing 9 position male header

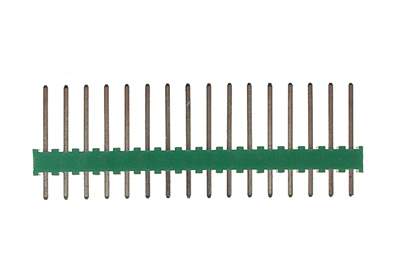

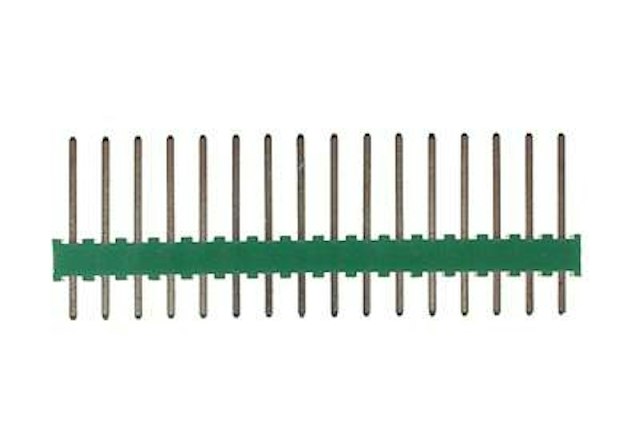

.100 inch 16 Position male molex header. Reference: Williams 5791-12461...
.100 inch 20 Position male molex header 5791-12461-20

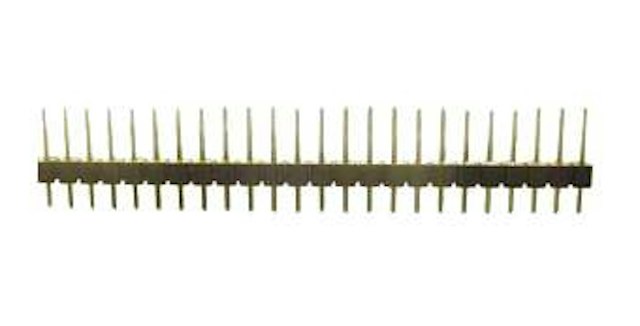

.100 inch 24 Position male molex header. Reference: Williams 5791-12461...
