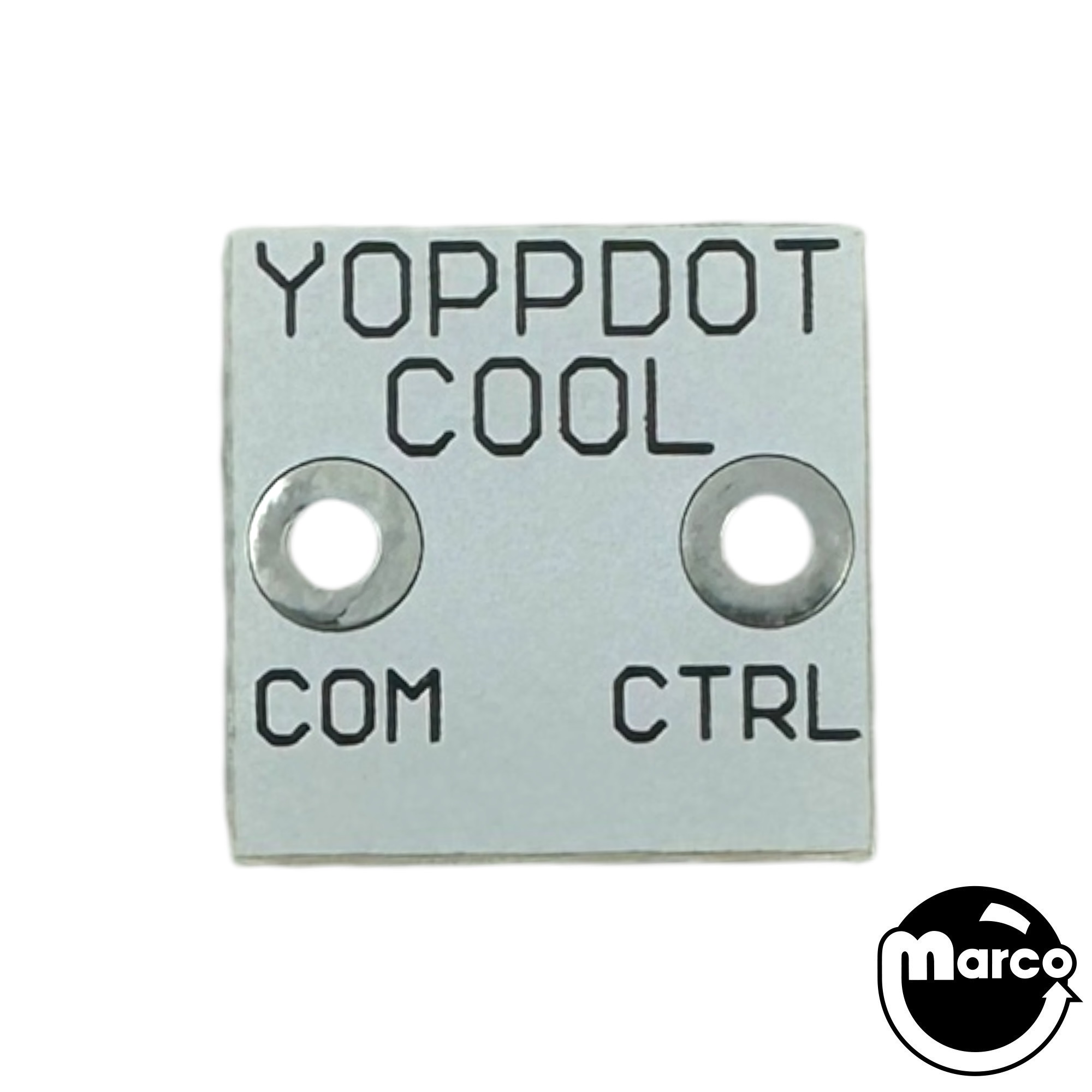

YoppDot LED board - Cool White
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
YoppDot cool white LED lighting upgrade for classic Bally/Stern pinball machines (1977–1985)

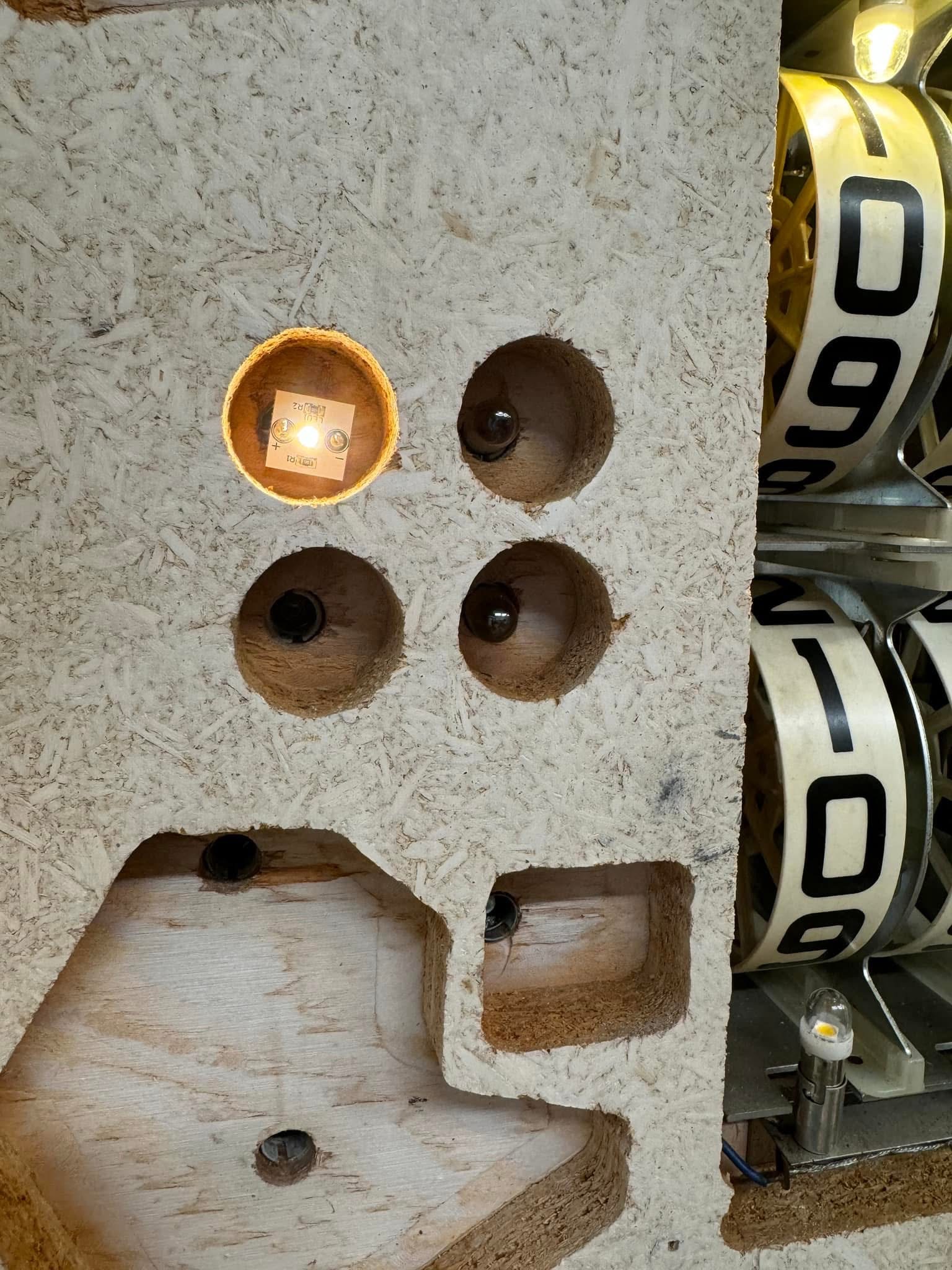

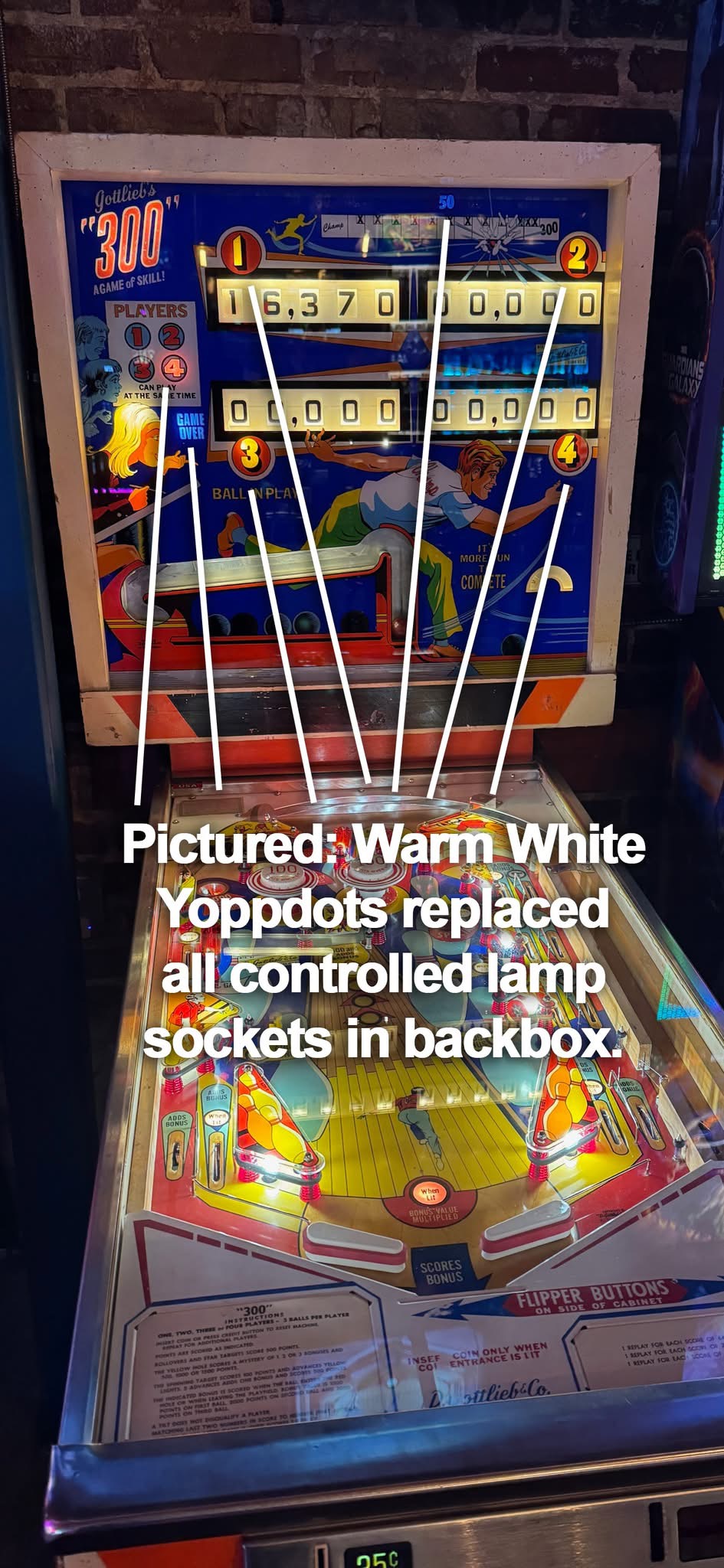

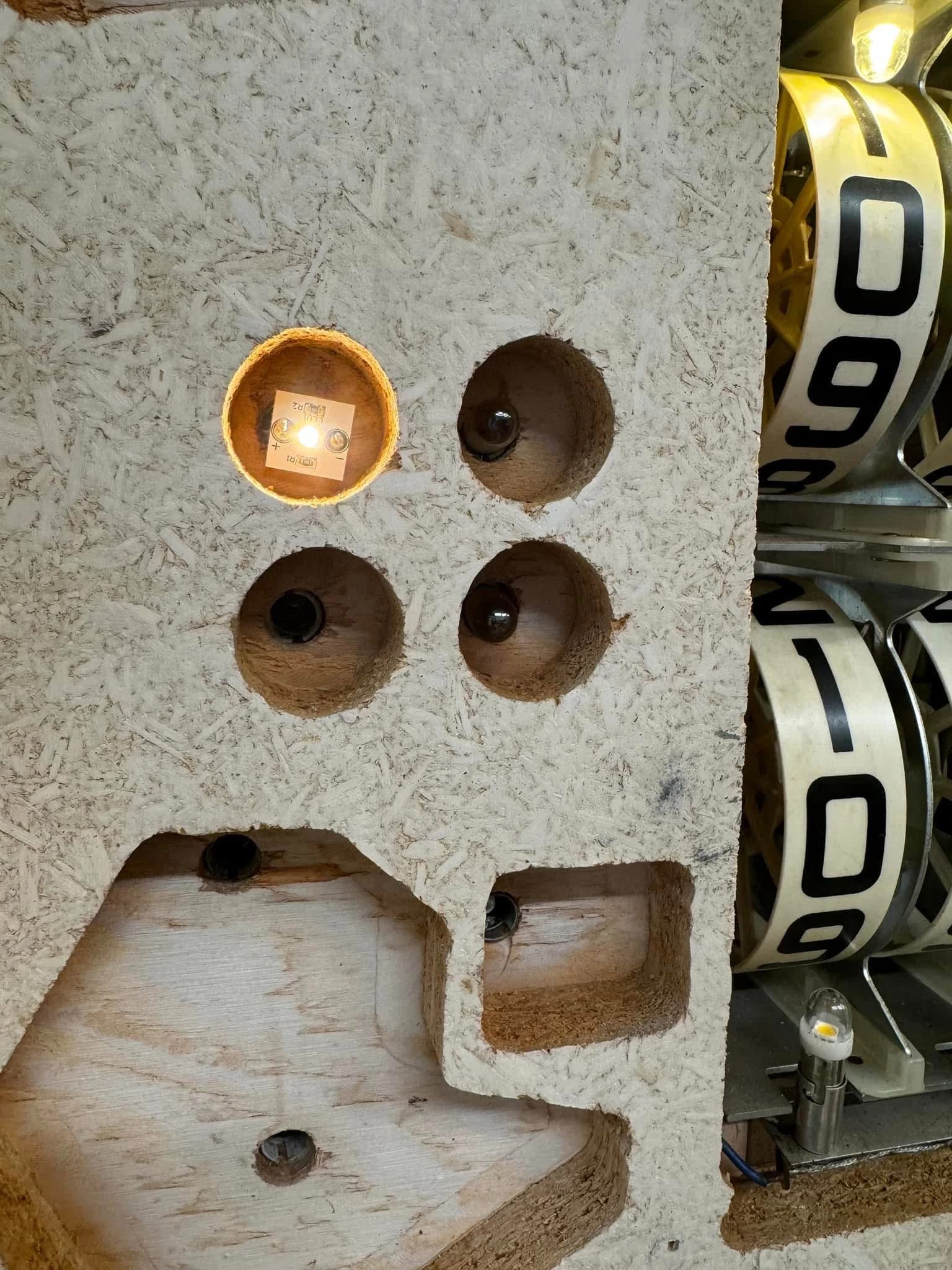

These single‑LED boards are ideal for narrow controlled lamp locations like backbox hole lights. Sold individually in Warm White or Cool White, they provide a clean, socket‑free glow where you need it.
Designed by an enthusiast for fellow enthusiasts, these boards are simple, effective feature lamp lights!

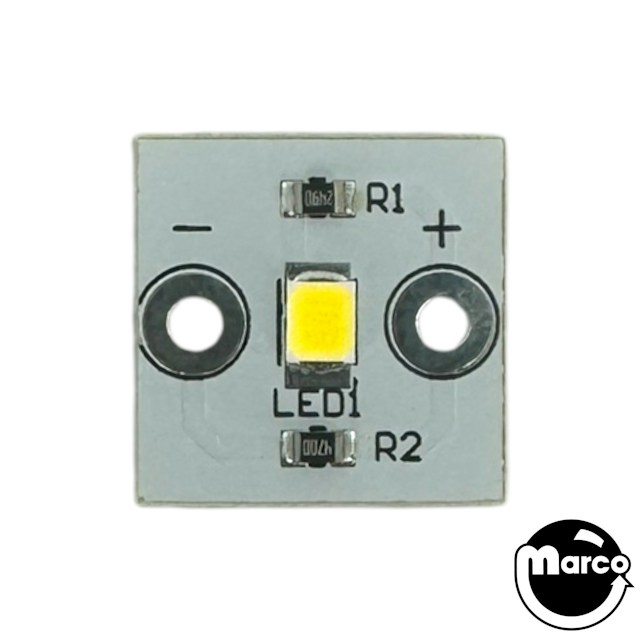

LED Type: Cool white surface-mount (approx. 2700K)
Brightness: Brighter than #44 incandescent
Voltage Compatibility: Works with original classic Bally & Stern lamp drivers and Alltek boards
Wiring: Direct solder-in, feeds through original socket hole
Compatible with Bally/Stern solid-state (1977–1985)
Not compatible with Bally 6803 or early Williams matrix-style lighting
Ships as individual units
Bulk orders available in snap-apart sheets of 50
Reference:
05-YOPDOT-CW
E-120
E-120-127
