46 piece kit will completely overhaul the troublesome J1, J2, and J3 connectors on TA-100 and AS-2518-18
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

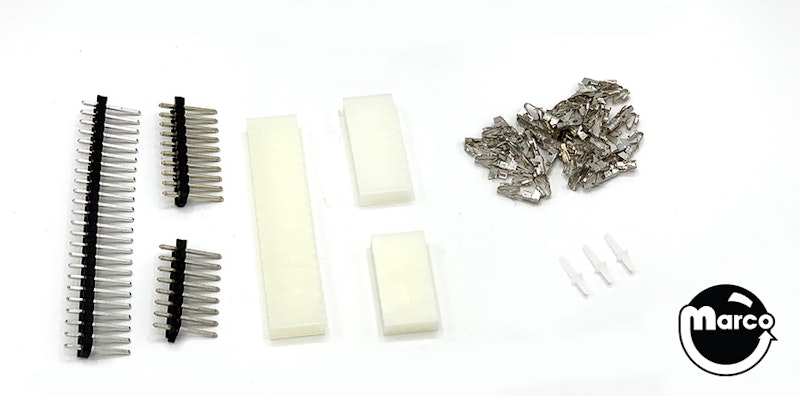

49 piece connector kit completely overhauls the troublesome J1, J2, and J3 connectors on early solid state (1977-1984) Bally and Stern pinball machine power/rectifier boards.
Includes 40 pieces of the high current capacity Trifurcon crimp terminals, 8, 10, and 20 circuit housings and male terminals.
Reference:
CKBLY
AS-2877-1 Power transformer module
AS-2518-18 rectifier board assembly
TA-100 rectifier board assembly
E-00715-0032 8 pin wafer connector
E-00715-0034 10 pin wafer connector
Select manufacturer to view game compatibility
0.156 inch on center spacing Trifurcon crimp terminals for 18-20 AWG wire.
.156 inch 8 Position female molex housing.
.156 inch 10 Position female molex housing. Reaplcement for 09-50-3101.
.156 inch 20 Position female molex housing.
Plastic plug for keying .156" center spacing Molex female housings.
.156 inch 8 Position male molex header. WilliamsNo. 5791-12273-0...
.156 inch 10 position male header

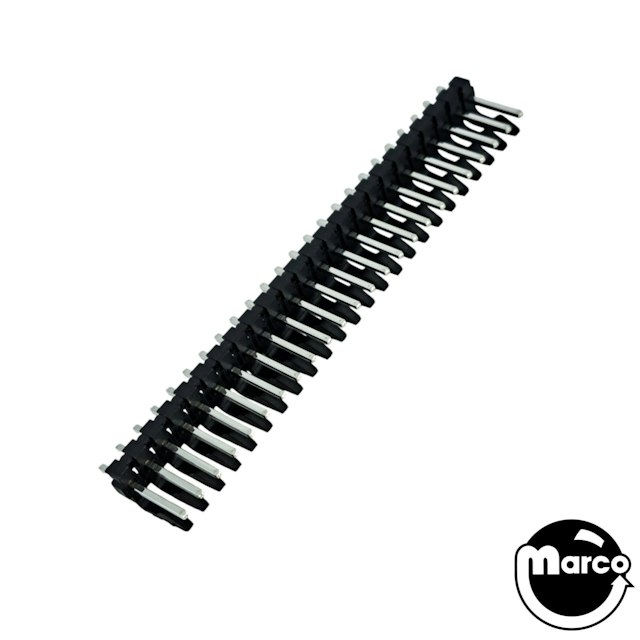

24 position break-away .156" male header with friction lock
