New Pin-Tek rectifier board for early Bally and Stern solid-state pinball machines with upgraded components.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

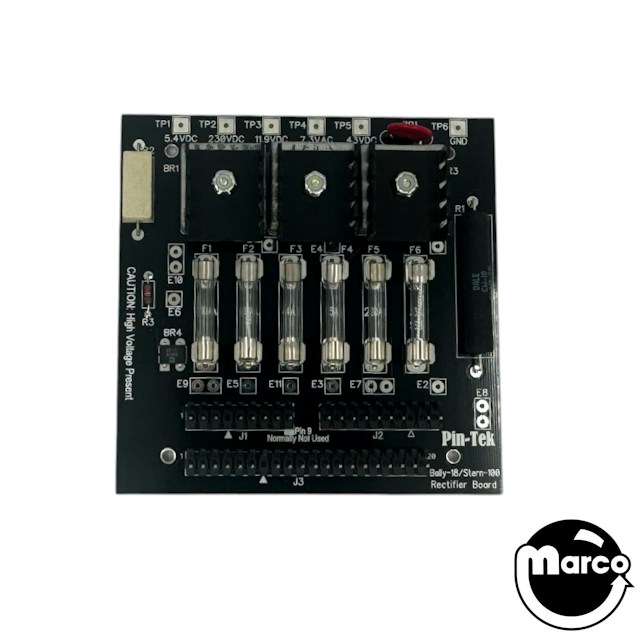

New Pin-Tek production rectifier board assembly for early Bally and Stern solid state pinball machines.
The all new design and construction includes heavy duty heat sinks and high capacity rectifiers.
Uses original mounting form for easy installation. Clearly labeled connector, components, solder points, fuse locations, and test points are printed on the front.
References:
Replaces PS2518-18
Replaces AS-2518-18
Replaces AS-2518-49
Stern SEI TA-100
Stern SEI B438-4
Stern SEI A-430
Stern SEI C-464
Installation notes for the following games:
KISS 6/79
FUTURE SPA 12/79
SPACE INVADERS 4/80
These games originally used Rectifier board AS-2518-49 that had 2 additional TO-3 case diodes installed on an extended board.
The cables on J1-Pin 7 and J1-Pin 9 are the same and should be removed from the J1-Pin 9 connector and attached to the J1-Pin 7 connection. (Both wires go to J1-Pin 7.)
