Flipper rebuild kit Bally 5/80-11/88 quad flipper includes...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on games with 4 flipper units manufactured from May 1980 through November 1988. These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms.
Rebuilds (2) Bally ASE-1587-111 (right side) and (2) ASE-1587-112 (left side) flipper assemblies.

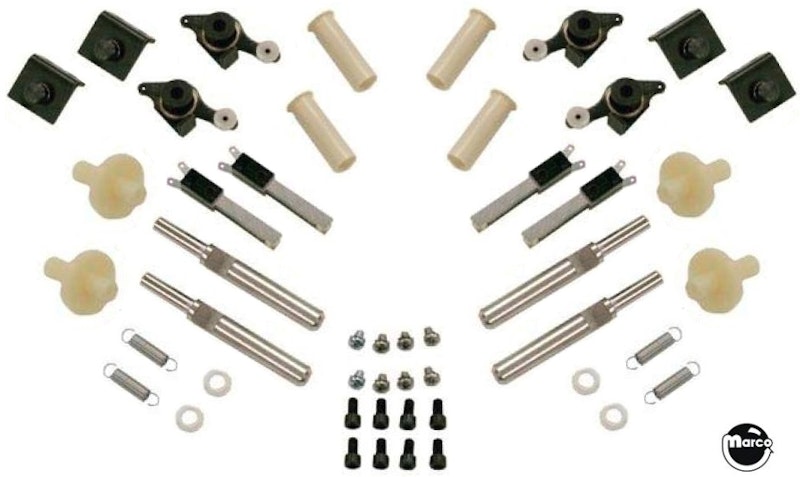

Parts included in this kit:
(2) A-3711-4 - Flipper crank Bally linear left
(4) S-496-217 - Plunger
(4) ASW-A20-34 - Leaf switch Bally flipper EOS 3 blade w/lifter ...
(2) ASW-A10-45 - Leaf switch Bally flipper EOS N.O. secondary
(4) A-613-127 - Coil stop Bally flipper AS-613-127
(4) C-649-53 - Flipper bushing Bally early 0017-00042-0413
(4) SP-100-363 - Spring
(4) 20-8790-2 - Nyliner® 5/16" bearing 545-5485-00 C-537-8
(4) 4705-00002-00 - Spring washer .515 x .875 x .013 inch P-1158...
(8) 4323-01158-04 - Set screw 1/4-28 x 1/4 inch sh-kn-cp M-1369
(8) 4323-01158-06 - Set Screw 1/4-28 x 3/8 inch sh-kn-cp
(8) 4008-01003-04 - Machine screw 8-32 x 1/4 inch p-ph-sems 232-...
(4) 03-7066 - Coil sleeve
(2) ASW-A10-45 - Leaf switch Bally flipper EOS N.O. secondary
Reference:
BFKIT88-2L2R
Select manufacturer to view game compatibility
Right crank used in many mid 1980's Bally pinball...
This is the left crank or pawl or lever arm hub and cap assembly used in...
Plunger - linear flipper Bally/Midway No.0360-00718-00XF plunger.
Flipper End Of Stroke (EOS) switch. Used in Bally/Midway linear flipper as...
Bally flipper coil stop for all Bally flipper assemblies (1968-1987) inclu...
Bally flipper bushing for machines made before 1985. 1.65 inch long
Nyliner nylon bearing 5/16 inch inner diameter.
Spring washer .50 x .875 inch
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Normally Open (N.O.) secondary EOS (end-of-stroke) switch.
Spring - extension flipper return
Normally Open (N.O.) secondary EOS (end-of-stroke) switch.
Set screw 1/4-28 x 1/4 inch sh-kn-cp M-1369
Coil retainer bracket for Bally playfield mechanisms
