Flipper rebuild kit for Bally pinball linear flipper mechanisms includes...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on games manufactured from May 1980 through November 1988*. This kit also includes longer screws for games that contain double-stacked EOS switches.
These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms.
Rebuilds Bally ASE-1587-111 (right side) and ASE-1587-112 (left side) flipper assemblies.
Note: This kit does not include secondary EOS switches for games with upper flippers. Order ASW-A10-45 separately.
For

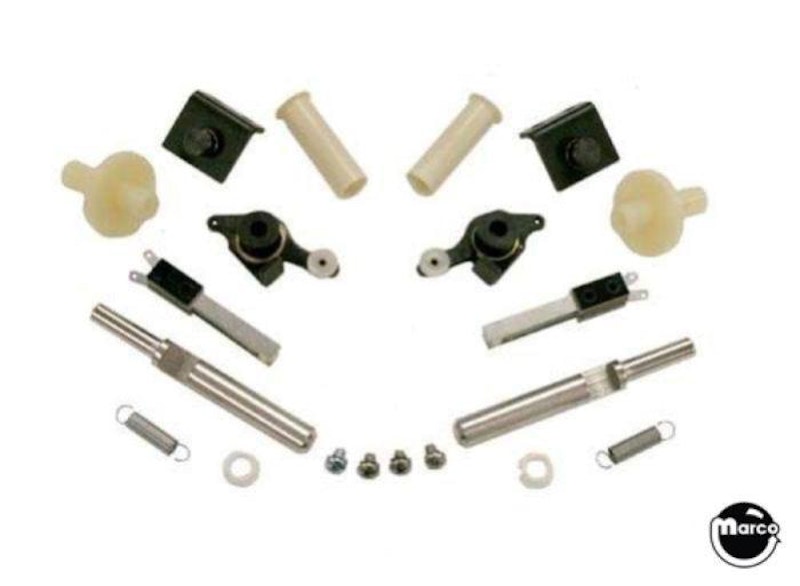

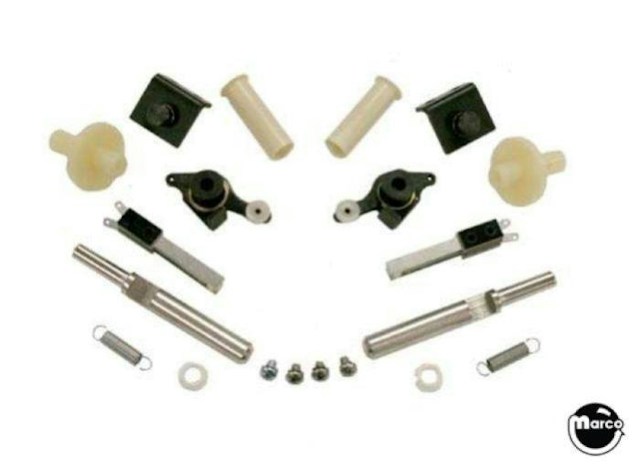

Parts included in this kit
(1) A-3711-4 - Flipper crank Bally linear left
(1) A-3711-5 - Bally linear right flipper crank
(2) S-496-217 - Plunger
(2) ASW-A20-34 - Leaf switch Bally flipper EOS 3 blade w/lifter
(2) A-613-127 - Coil stop Bally flipper AS-613-127
(2) C-649-53 - Flipper bushing Bally early 0017-00042-0413
(2) SP-100-363 - Spring
(2) 20-8790-2 - Nyliner® 5/16" bearing 545-5485-00 C-537-8
(2) 4705-00002-00 - Spring washer .515 x .875 x .013 inch
(4) 4008-01003-04 - Machine screw 8-32 x 1/4 inch p-ph-sems
(2) 03-7066 - Coil sleeve
(2) 4008-01005-16 - Machine Screw 8-32 x 1 inch p-ph
Reference:
BFKIT88

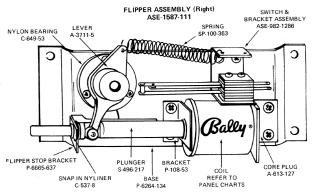

ASE-1587-111 right side flipper assembly

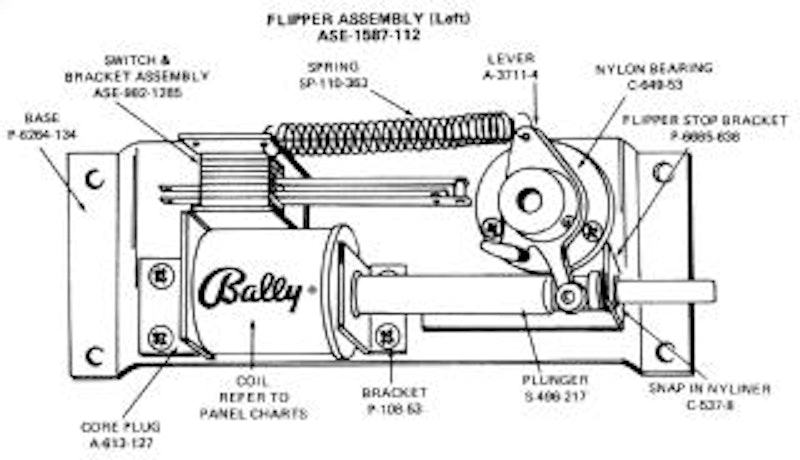

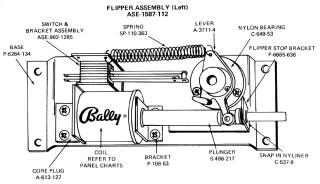

ASE-1587-112 left side flipper assembly
AC70-00022-0200 left side single switch flipper assembly
AC70-00023-0100 right side double switch flipper assembly
AC70-00023-0200 left side double switch flipper
1988-11 TRUCKSTOP (*upper flippers only - use WFLKIT for lower flippers)
*NOTE: EIGHT BALL CHAMP is the only game from this era that does not use this linear flipper assembly.
