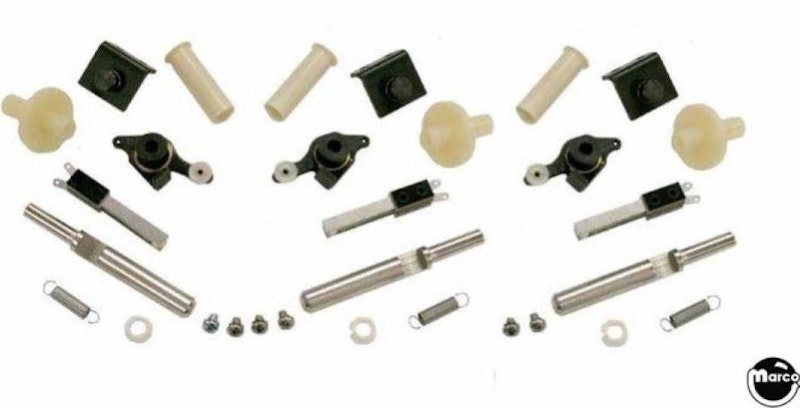

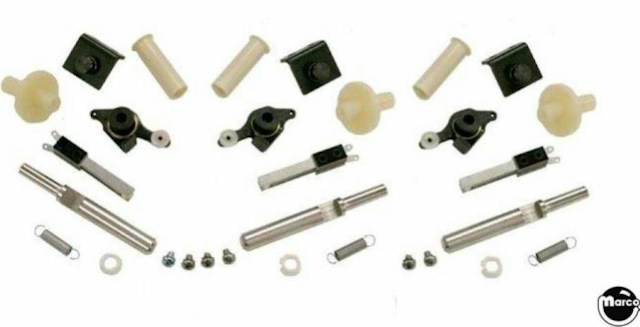

Rebuild kit for mechanical components for Bally pinball machine left & right side linear style flipper assemblies...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on games with 3 flipper units manufactured from May 1980 ROLLING STONES through November 1988 TRUCK STOP (upper flippers). NOTE: EIGHT BALL CHAMP is the only game from this era that does not use this linear flipper assembly.
These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms. Rebuilds 2 Bally ASE-1587-111 (right side) and (1) ASE-1587-112 (left side) flipper assemblies.
Parts included in this kit:
(1) A-3711-4 - Flipper crank Bally linear left
(2) A-3711-5 - Bally linear right flipper crank
(3) S-496-217 - Plunger
(3) ASW-A20-34 - Leaf switch Bally flipper EOS 3 blade w/lifter ...
(3) A-613-127 - Coil stop Bally flipper AS-613-127
(3) C-649-53 - Flipper bushing Bally early 0017-00042-0413
(3) SP-100-363 - Spring
(3) 20-8790-2 - Nyliner® 5/16" bearing 545-5485-00 C-537-8
(3) 4705-00002-00 - Spring washer .515 x .875 x .013 inch P-1158...
(6) 4323-01158-06 - Set Screw 1/4-28 x 3/8 inch sh-kn-cp
(6) 4323-01158-04 - Set screw 1/4-28 x 1/4 inch sh-kn-cp M-1369
(6) 4008-01003-04 - Machine screw 8-32 x 1/4 inch p-ph-sems 232-...
(3) 03-7066 - Coil sleeve
(1) ASW-A10-45 - Leaf switch Bally flipper EOS N.O. secondary
Reference:
BFKIT88-1L2R
ASE-1587-111 right side flipper assembly
ASE-1587-112 left side flipper assembly
AC70-00022-0200 left side single switch flipper assembly
AC70-00023-0100 right side double switch flipper assembly
AC70-00023-0200 left side double switch flipper assembly
