Used in Data East pinball games from 6/1992 - 4/1993.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers.
Includes all mechanical flipper components for left and right side flippers. Compatible with Data East Solid State flipper games with TY-FFASI controller boards starting with June 1992 through April 1993 Data East machines.
Metal replacement parts in the kit are zinc plated to conform with RoHS (Reduction of Hazardous Substances) legislation. Your original metal components may have a brass colored anodized finish that contains lead.
Factory recommendations are replacing flipper components every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

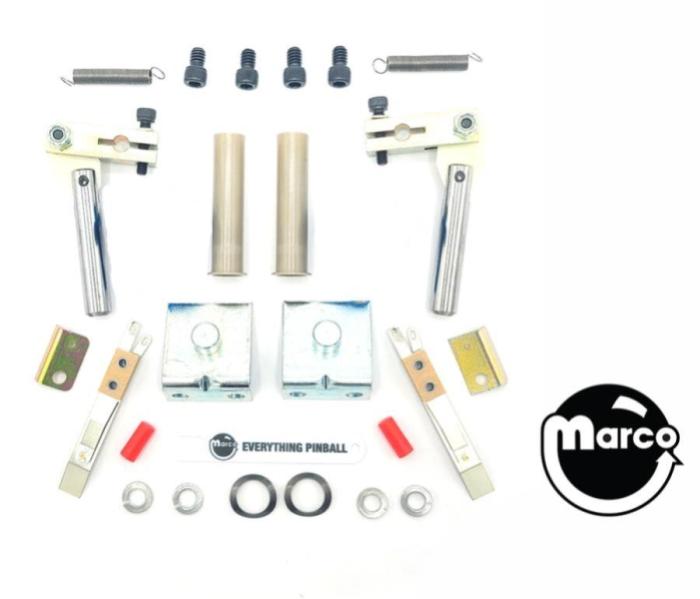

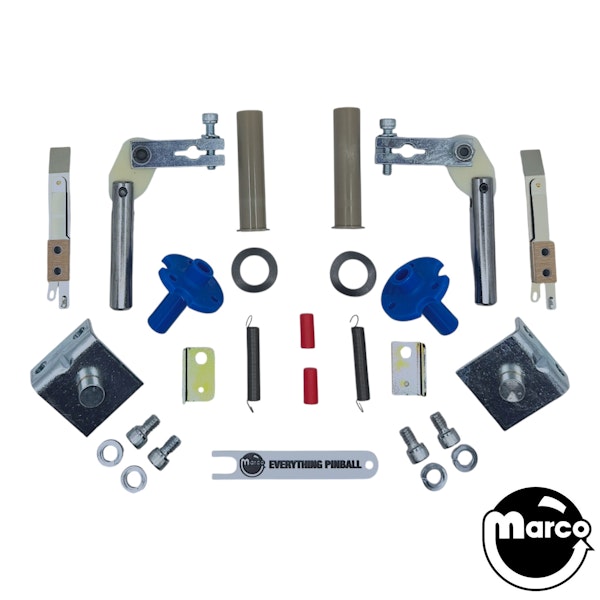

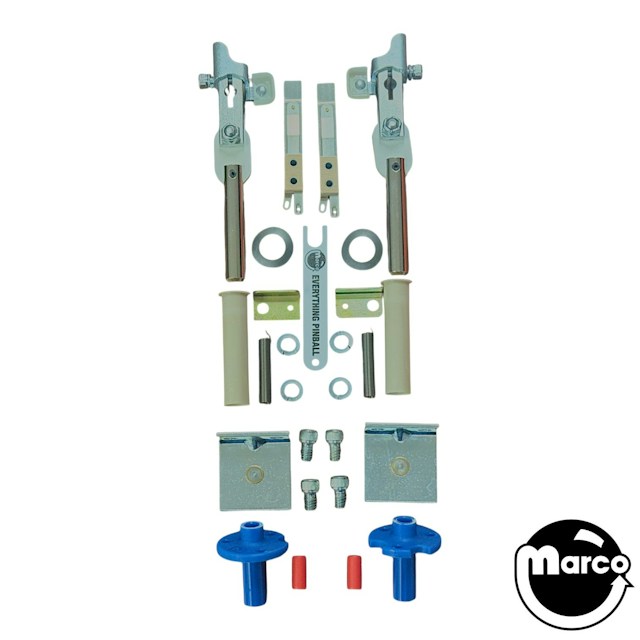

Parts included in this kit:
(1) 515-7203-01 - Flipper crank assembly Stern left
(1) 535-6663-01 - Bracket
(2) 265-5029-02 - Spring
(2) 515-5346-00 - Coil stop Data East/Sega
(2) 545-5070-00 - Flipper bushing DE/Sega/Stern 1/4 inch ID notched
(2) 03-7066-5 - Coil sleeve
(2) 269-5002-00 - Spring washer .531 x .75 x 1 inch
(4) 237-5861-00 - Machine Screw 1/4-20 x 3/8 inch socket head R/...
(1) 535-6663-02 - Bracket
(1) 03-8194 - Flipper Gauge
(2) 545-5084-00 - Cap
(2) 180-5124-01 - Leaf switch
(4) 4701-00005-00 - Lock washer 1/4 split
Reference:
Data East / Stern 500-6306-40
Select manufacturer to view game compatibility
Flipper return extension spring used on Data East, Sega, and New Stern
Spring washer 1/2 inch inner diameter and 3/4 inch outer diameter commonly used on...
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Common coil stop bracket for Data East & Sega.
Machine Screw 1/4-20 x 3/8 inch socket head R/A 231-2507-06
Bracket, spring right flipper assembly for Data East Pinball Machines. Replaces the 535-6421-00
Bracket, spring left flipper assembly for: Data East Pinball Machines
Plastic thickness gauge for adjusting flipper bushing gap
Cap - red plastic actuator Data East
Data East/ Sega/Stern pinball machine End-Of-Stroke (EOS) flipper switch

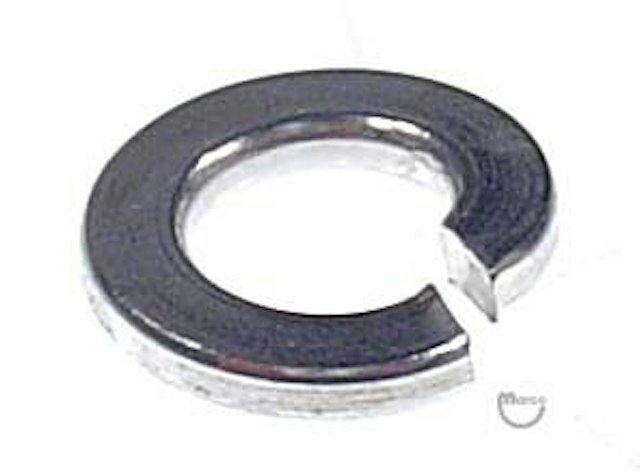

lock washer 1/4 split
Right plunger, link and crank (pawl) assembly used on all new Stern1 games...
Left plunger, link and crank (pawl) assembly used on all new Stern1 games
Notched 1/4" ID flipper bushing (Data East/Sega/Stern)
White 3 inch plastic flipper and shaft assembly with the Data East logo.
