For Data East May 1987 through September 1989 pinball machines.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Compatible with Data East May 1987 through September 1989 pinball machines. Includes all left and right side mechanical flipper components for Data East pinball machines used in Data East games starting with 5/87 through 9/89.
Metal replacement parts in the kit are zinc plated to conform with RoHS (Reduction of Hazardous Substances) legislation. Your original metal components may have a brass colored anodized finish that contains lead.
Factory recommendations are replacing flipper components every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

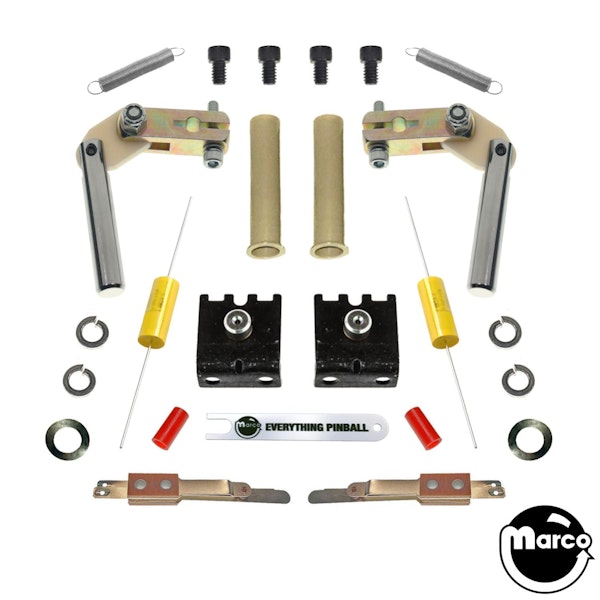

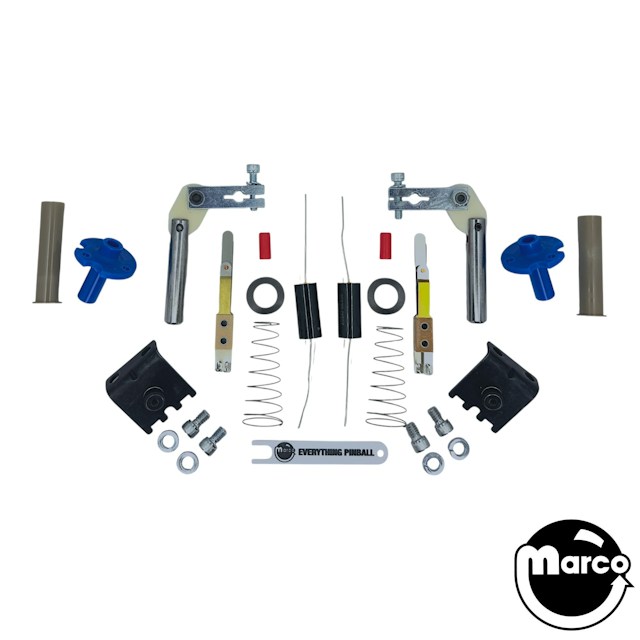

Parts included in this kit:
(2) 515-7203-JG - Flipper plunger, link and crank only Stern
(2) 180-5018-00 - Leaf switch
(2) 545-5084-00 - Cap
(2) 515-5086-00 - Coil stop
(2) 545-5070-00 - Flipper bushing DE/Sega/Stern 1/4 inch ID notched
(2) 03-7066-5 - Coil sleeve
(2) 269-5002-00 - Spring washer .531 x .75 x 1 inch
(2) 265-5029-02 - Spring
(2) C2.2M250VA-NP - Capacitor 2.2 uF 250v axial NP yellow 125-50...
(4) 237-5861-00 - Machine Screw 1/4-20 x 3/8 inch socket head R/...
(1) 03-8194 - Flipper Gauge
(4) 4701-00005-00 - Lock washer 1/4 split
Reference:
Data East / Stern 500-6306-20
