All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Compatible with Data East Solid State flipper games with TY-FFASI controller boards starting with Nov. 1989 and ending with Jan 1992. These flipper assemblies do not have end-of-stroke (EOS) switches. Includes all mechanical flipper components for Data East pinball machines left and right sides.
Metal replacement parts in the kit are zinc plated to conform with RoHS (Reduction of Hazardous Substances) legislation. Your original metal components may have a brass colored anodized finish that contains lead.
Factory recommendations are replacing flipper components every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

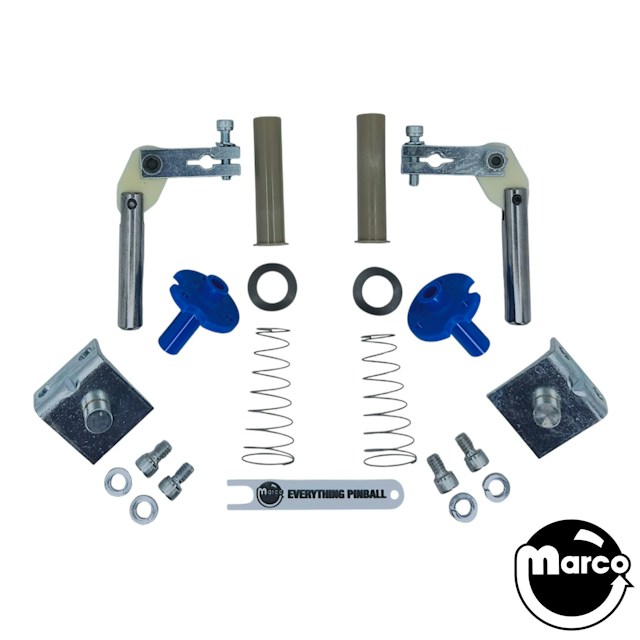

Parts included in this kit:
- (2) 515-7203-JG - Flipper plunger, link and crank only Stern
- (2) 545-5070-00 - Flipper bushing DE/Sega/Stern 1/4 inch ID notched
- (2) 515-5346-00 - Coil stop Data East/Sega
- (2) 03-7066-5 - Coil sleeve
- (2) 269-5002-00 - Spring washer .531 x .75 x 1 inch
- (2) 10-376 - Spring
- (4) 237-5861-00 - Machine Screw 1/4-20 x 3/8 inch socket head R/...
- (1) 03-8194 - Flipper Gauge
- (4) 4701-00005-00 - Lock washer 1/4 split
Reference:
- Data East / Stern 500-6306-30
