Slingshot assembly Data East
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

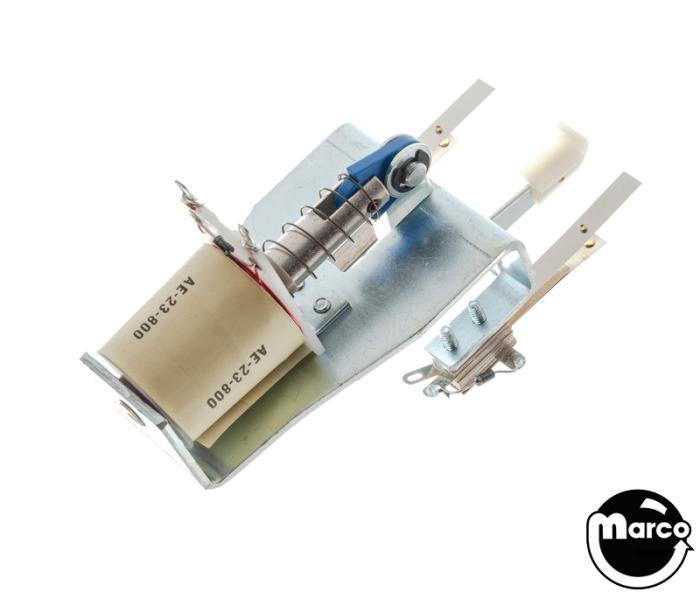

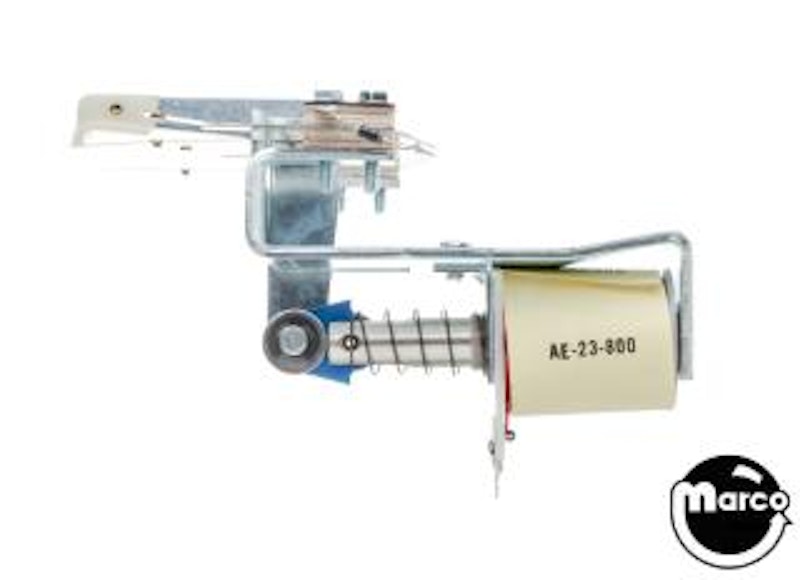

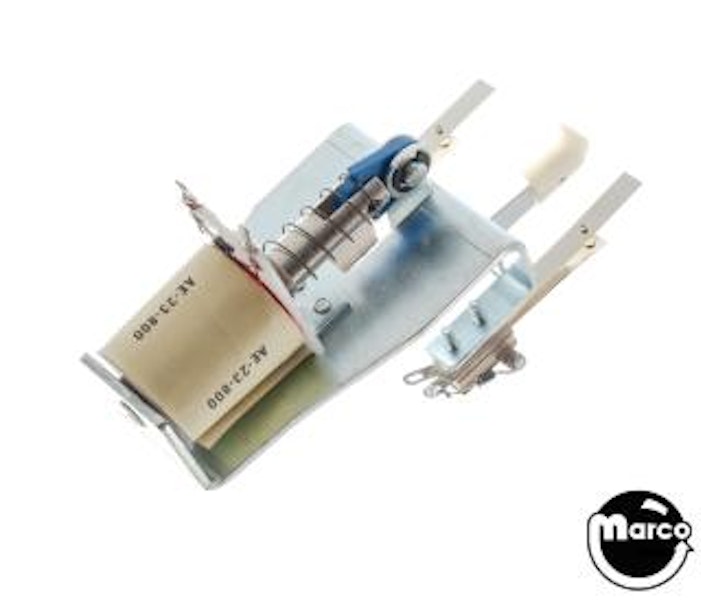

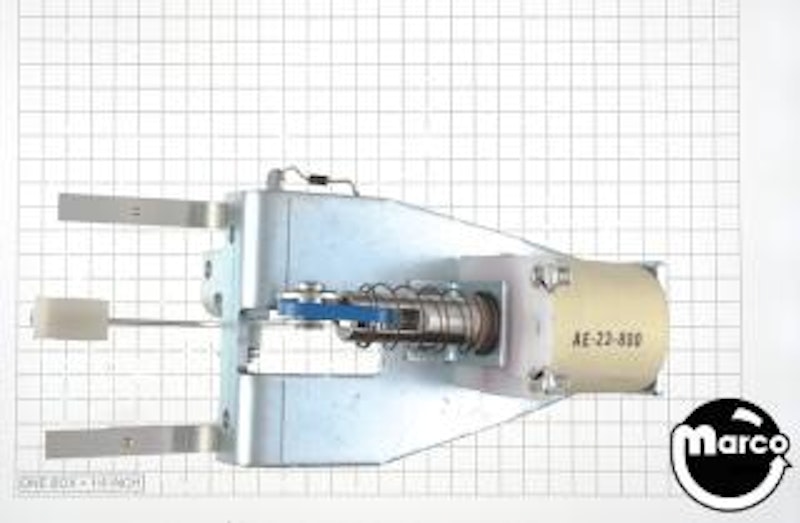

Data East and Spooky Pinball brands complete slingshot assembly.
Comes with the following parts:

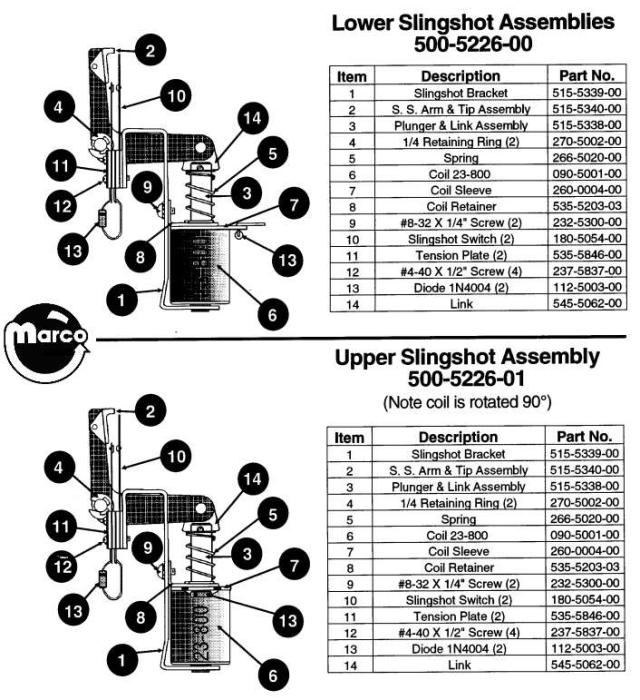

Part No. Description
515-5339-00 Slingshot Bracket
515-5340-00 Sling Arm & Tip Assembly
515-5338-00 Plunger & Link Assembly
270-5002-00 1/4" Retaining Ring (Qty. 2)
266-5020-00 Spring
090-5001-02 Coil 23-800, inch Coil Sleeve
545-5031-00 Coil Sleeve
112-5003-00 Diode 1N4004 (Qty. 2)
232-5300-00 No.8-32 X 1/4" Screw (Qty. 2)
180-5054-00 Slingshot Switch
535-5846-00 Tension Plate (Qty. 2)
237-5837-00 No.4-40 X V2" Screw (Qty. 4)
535-5203-03 Coil Retainer
545-5062-00 Link
Reference:
500-5226-00

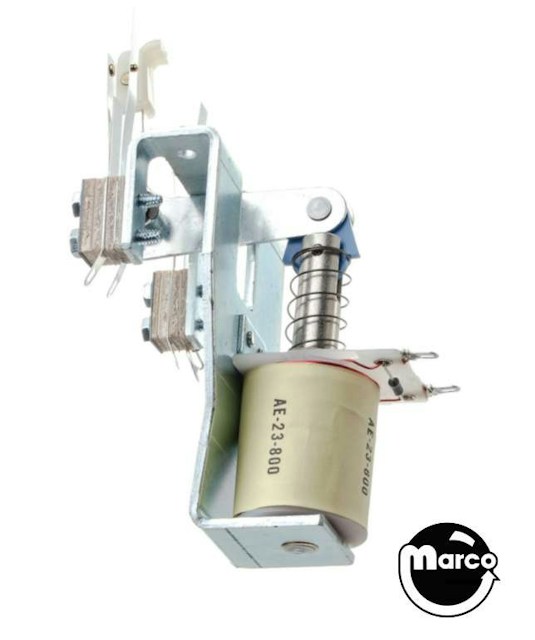

500-5226-01 same unit with coil mounting rotated 90°
