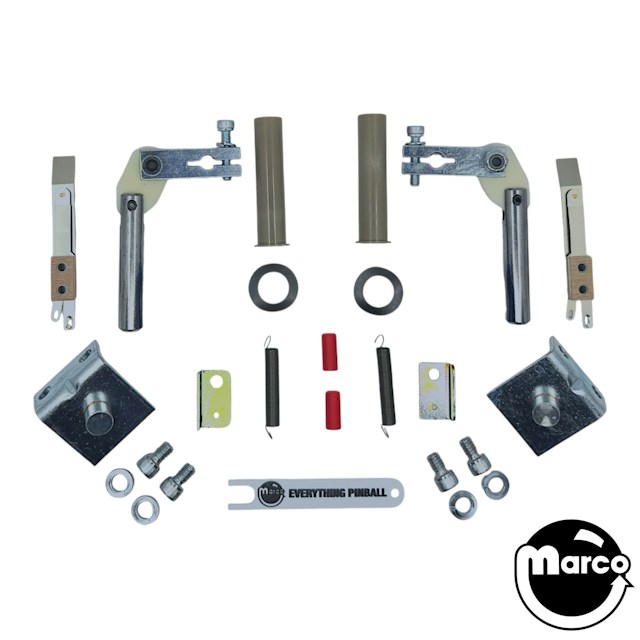

Flipper rebuild kit for Data East/Sega 8/93 - 7/95 pinball machines.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. Flipper rebuild kit for Data East and early Sega Pinball 8/93 - 7/95. For games with electronically controlled flippers WITH End-of-Stroke (EOS) switches. Used in Data East Solid State flipper games with TY-FFASI controller boards starting with August 1993 through Sega Pinball early production (1995) machines.
Metal replacement parts in the kit are zinc plated to conform with RoHS (Reduction of Hazardous Substances) legislation. Your original metal components may have a brass colored anodized finish that contains lead.
Factory recommendations are replacing flipper components every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.

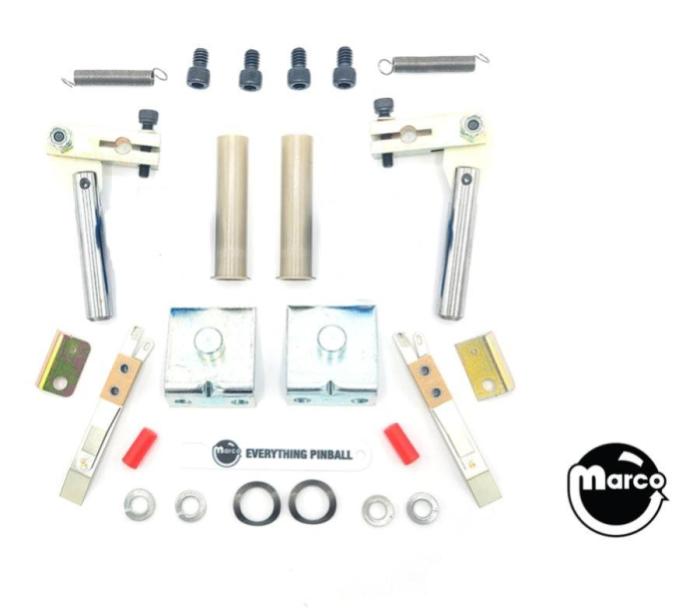

Parts included in this kit:
(2) 515-7203-JG - Flipper plunger, link and crank only Stern
(2) 180-5124-01 - Leaf switch
(2) 265-5029-02 - Spring
(2) 515-5346-00 - Coil stop Data East/Sega
(2) 545-5070-00 - Flipper bushing DE/Sega/Stern 1/4 inch ID notched
(2) 03-7066-5 - Coil sleeve
(2) 269-5002-00 - Spring washer .531 x .75 x 1 inch
(1) 535-6663-01 - Bracket
(1) 535-6663-02 - Bracket
(1) 03-8194 - Flipper Gauge
(4) 237-5861-00 - Machine Screw 1/4-20 x 3/8 inch socket head R/...
(2) 545-5084-00 - Cap
(4) 4701-00005-00 - Lock washer 1/4 split
Reference:
Data East / Stern 500-6306-50
Select manufacturer to view game compatibility
Common coil stop bracket for Data East & Sega.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Data East/ Sega/Stern pinball machine End-Of-Stroke (EOS) flipper switch
Spring washer 1/2 inch inner diameter and 3/4 inch outer diameter commonly used on...
Flipper return extension spring used on Data East, Sega, and New Stern
Bracket, spring right flipper assembly for Data East Pinball Machines. Replaces the 535-6421-00
Bracket, spring left flipper assembly for: Data East Pinball Machines
Plastic thickness gauge for adjusting flipper bushing gap
Machine Screw 1/4-20 x 3/8 inch socket head R/A 231-2507-06
Cap - red plastic actuator Data East
lock washer 1/4 split
Right plunger, link and crank (pawl) assembly used on all new Stern1 games...
Left plunger, link and crank (pawl) assembly used on all new Stern1 games
Flipper top decal Data East 'Solid State'
