SMD to DIP adaptor board set (7)
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
7 piece set of SMD component to Through Hole breakout board st
Double sided .062", FR-4 board, plated copper pads. Mini adapter board kit converts surface mount components to thru hole mount. Pins available separately under related items below.

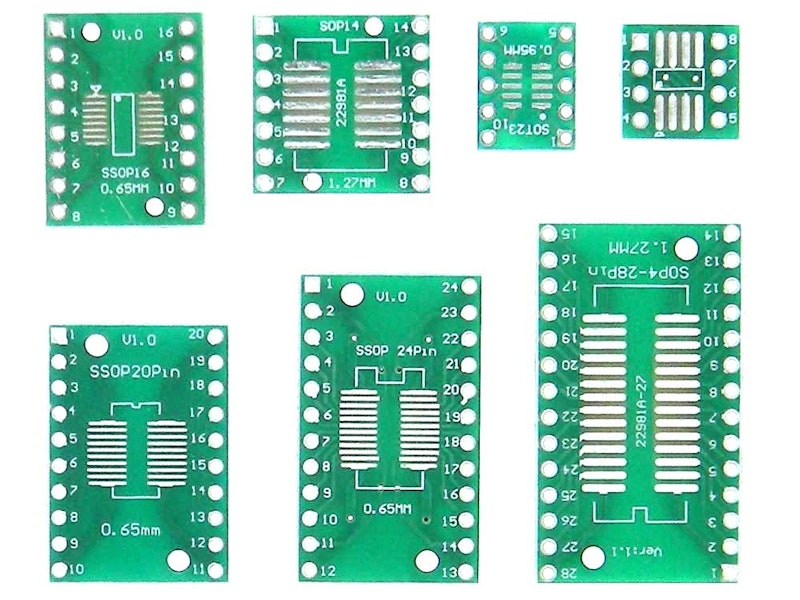

Package include these assorted size circuit boards:
8 Pin SOP/TSOP package with .65 or 1.27mm pitch to a 8 pin .1" pitch x .3" width (2.54mm X 7.52mm) DIP pattern.
10 Pin SOP10/SOT23 package with .5 or .95mm pitch to a 10 pin .1" pitch X .3" width (2.54mm x 7.52mm) DIP pattern.
14 Pin TSOP/SSOP/SOP/SOIC/SO .65 or 1.27mm pitch Flat Pack to a 14 pin .1" pitch X .6" width (2.54mm X 15.2mm) DIP pattern.
16 Pin TSOP/SSOP/SOP/SOIC/SO .65 or 1.27mm pitch Flat Pack to a 16 pin .1" pitch X .5" width (2.54mm X 12.7mm) DIP pattern.
20 Pin SO/SOP/SOIC/SSOP/TSSOP & MSOP .65 or 1.27mm pitch Flat Pack to a 20 pin .1" pitch X .6" width (2.54mm X 15.24mm) DIP pattern.
24 Pin .65 or 1.27mm pitch SO/SOP/SOIC/SSOP/TSSOP & MSOP packages to a 24pin .1" pitch X .6" width (2.54mm X 15.24mm) DIP pattern.

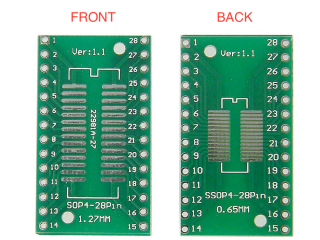

28 Pin .65 or 1.27mm pitch SO/SOP/SOIC/SSOP/TSSOP & MSOP packages to a 28 pin .1" pitch X .7" width (2.54mm X 18mm) DIP pattern.
Solder and desolder station
14 Compartment plastic storage container with adjustable sections...
Transparent lid with red plastic base storage box with snap lid...
Storage Box 7-1/2 x 5 x 1-1/2 inches
2-3/4" glass lens and plastic handle. Provides 3X magnification
2.5 mm wide Desoldering Braid for solder connection re-work. This ESD saf...
Solder flux pen
Helping Hand Magnifier with LED jig
10" 4oz ball peen hammer for most of your percussive adjustment needs...
Magnifier with light
6-1/2 inch Titanium Soldering Pick
Storage Container 1 x 1 inches
Solder - Pocket Dispenser 14 gram tube 60/40 tin/lead
Circuit board holder soldering stand
Solder and desolder hot air SMD station
Solder and desolder hot air SMD station - economy
Safety Glasses
Variable temperature soldering station
SIP header .100 inch 20 pin .625 leads

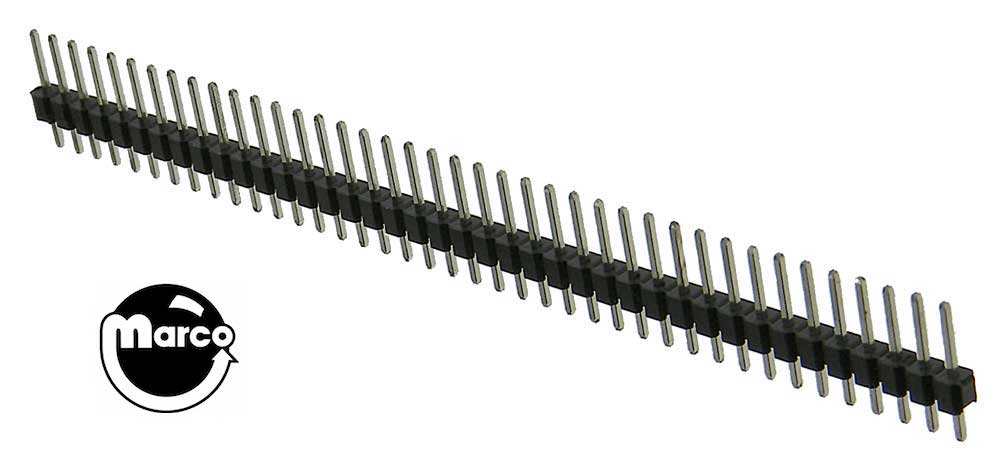

Male single row snappable header pins have .100" spacing with .025" square posts

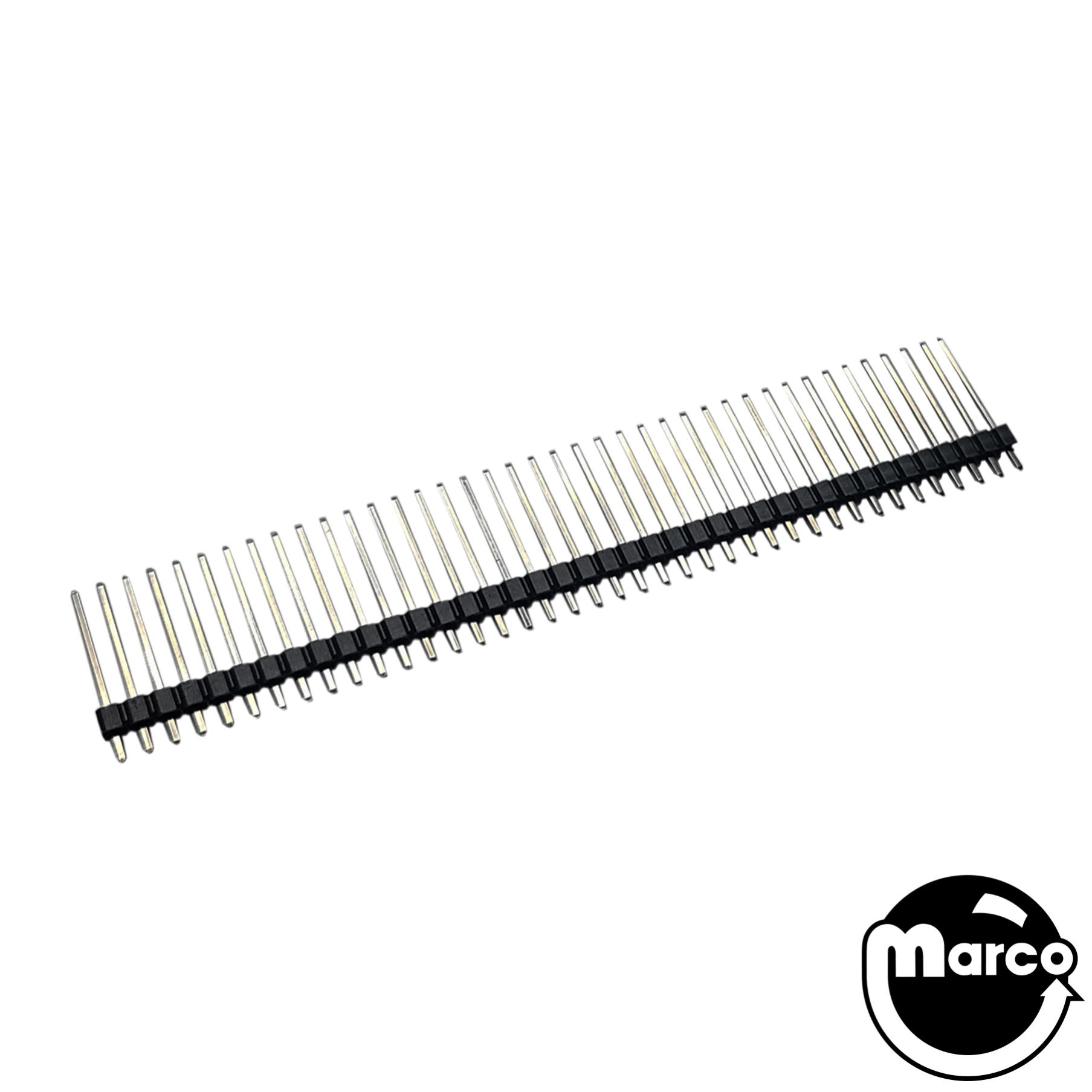

Header male .100 inch 40 position snap apart - Long
