Solder and desolder hot air SMD station

#77-SSSMD

Variable temperature digital Hot Air Surface Mount device solder and desolder station

Economy soldering/desoldering station for SMD circuit board rework.

Includes starter supply kit with desoldering wick, hand vacuum pump, and lead free solder spool.

Soldering iron may be top mounted to save workbench space.

Solder and un-solder SMD capacitor packages (0603, 0805, 1206), SMD diode package (LL34), transistor (SOT23), and other tiny surface mount devices.

Features:

  • Temperature Control Technology - Embedded high precision PID temperature control program monitors and corrects the actual temperature of each tool quickly and accurately.
  • Anti-static Design - prevents static or current leakage damage to components.
  • Air flow protection - automatically alarms and disables hot air heating core power supply for safety if the fan should stop.
  • Digital temperature correction - corrects temperature deviation caused by environmental changes, heater replacement, soldering tip, or other components.
  • Centigrade/Fahrenheit programmable, temperature correction function, sleep function, selectable cool air / hot air.
  • 1 year warranty.

    Package contents:

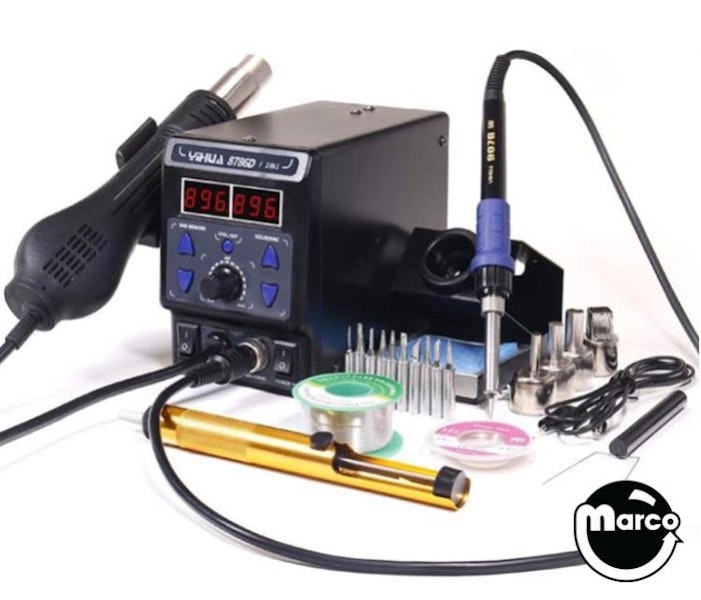

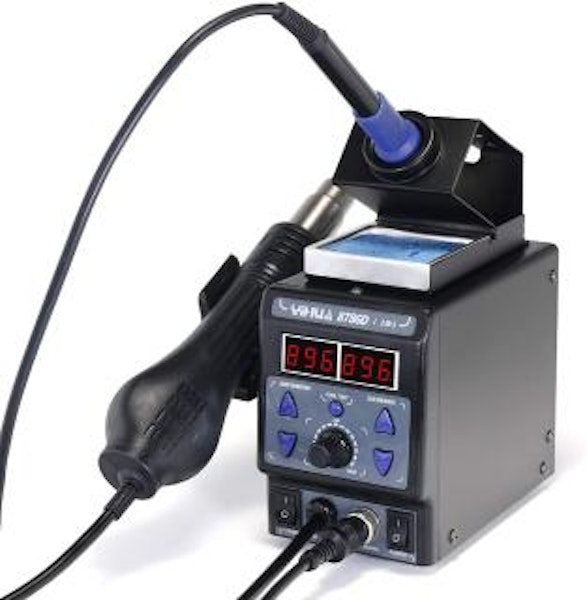

  • Model 8786D 2 in 1 Hot Air Rework and Soldering Station

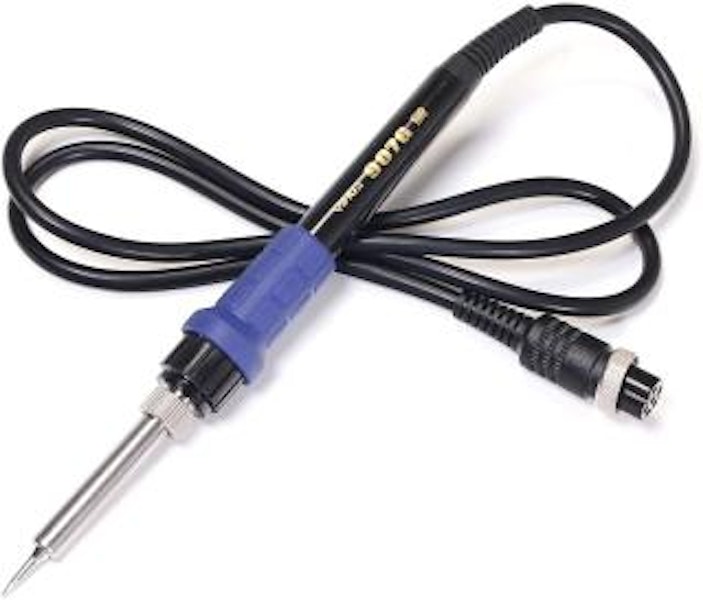

  • Removable 60W solder iron with silicone cord
  • Solder iron stand with blue sponge

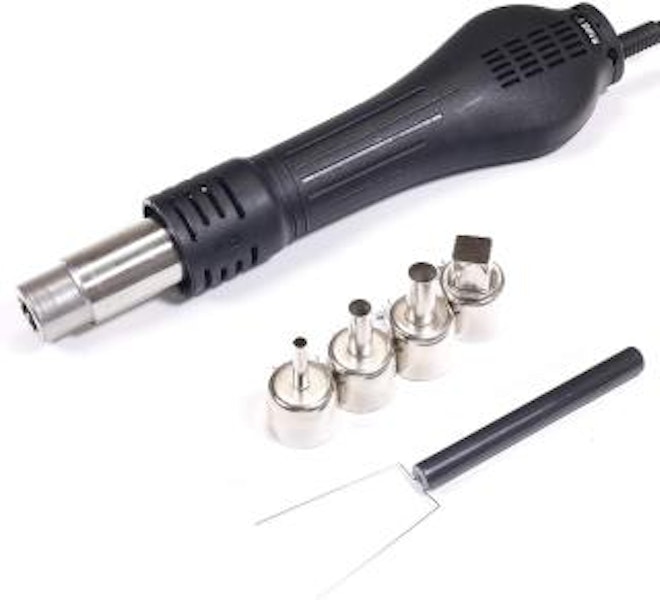

  • Exclusive programmable hot air gun
  • Solder iron tips (10 pieces)
  • Hot air nozzles - 4 sizes (0.17''(4.4mm), 0.27''(7.0mm), 0.35''(9.0mm) and 0.47''(12.0mm)
  • Lead-free solder (0.03'', 0.11 Lbs/ 0.8mm, 50g)
  • IC removal tool
  • Solder wick
  • Desoldering pump

    Specifications:

  • Model: 8786D
  • Total power consumption: 700W
  • Air flow type: brushless fan with soft air
  • Max air flow volume: 120L/min
  • Heat gun temp range: 212 ~ 896°F/100 ~ 480°C with auto cool down safety feature
  • Heat gun temp. stability: ±3.6°F/±2°C
  • Heat gun tube material: 100% Silicone
  • Solder iron temp. range: 392 ~ 896°F/200 ~ 480°C
  • Solder iron temp. stability: ±1.8°F/±1°C
  • Solder iron cord material: 100% silicone
  • Product size: L5.83'' x W3.90'' x H5.28''/ L148 x W99 x H134mm
  • Unit weight: 6.2 Lbs (2.8KG)
  • 110V~127V/AC, 60Hz North America plug

    Reference:

    • 77-SSSMD

  • 6.2 lb

    $109.00

    Out Of Stock
