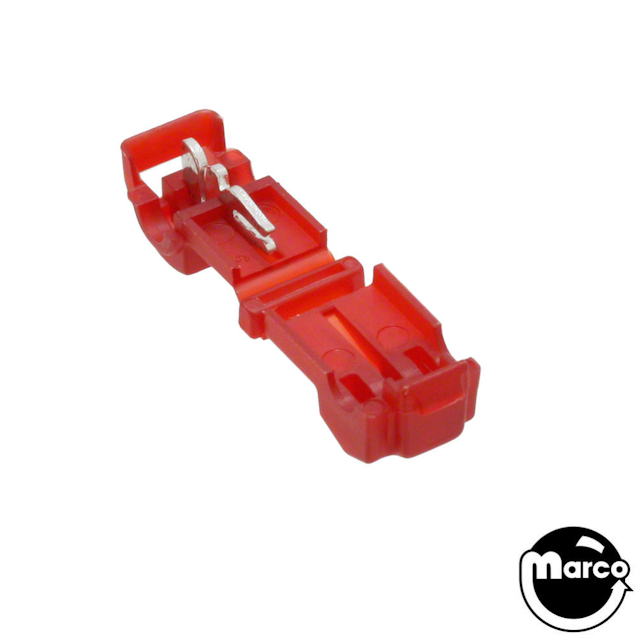

3M™ Scotchlok™ Self-Stripping Insulation Displacement Electrical T-Tap Connectors (IDC) 951...
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Use 3M™ Scotchlok™ Self-Striping Electrical T-Tap Connectors, 951, 952 and 953 to electrically tap into a wire in mid-span without cutting or stripping the wire. Connector then mates with a .250” (6,35 mm) male tab, making a reusable quickconnect wiring termination.
Technical Specifications:
Conn. #: 951
Color: Red
Wire Range (AWG – mm2 ) : 22 – 18 (0,3 – 0,8)
Maximum Current:
22 AWG 3.0 AMPS
20 AWG 4.0 AMPS
18 AWG 7.5 AMPS
Max. Voltage Rating: 600 V Building Wire, 1000 V Signs or Fixtures (Luminaries)
Max. Operating Temp 221°F (105°C Insulator Material: Flame retardant nylon, see table for color
Element: Tin plated brass, .03 in. (,8 mm) thick
Flammability Rating: C2.2 No. 0.6 V-2
Weight lb./gm: .0023 (1,04)
Reference:
3M - 951 - SCOTCHLOK CONNECTOR
0.156 inch on center spacing Trifurcon crimp terminals for 22-26 AWG wire.
0.156 inch on center spacing Trifurcon crimp terminals for 18-20 AWG wire.
.100 inch 28 Position female molex housing.
Connector .156 inch 6 position female 09-50-3061
Connector .156 inch 7 position female 26-03-4070
.156 inch 8 Position female molex housing.
.156 inch 10 Position female molex housing. Reaplcement for 09-50-3101.
.156 inch 20 Position female molex housing.
Used in many early Bally and Stern pinball machines.

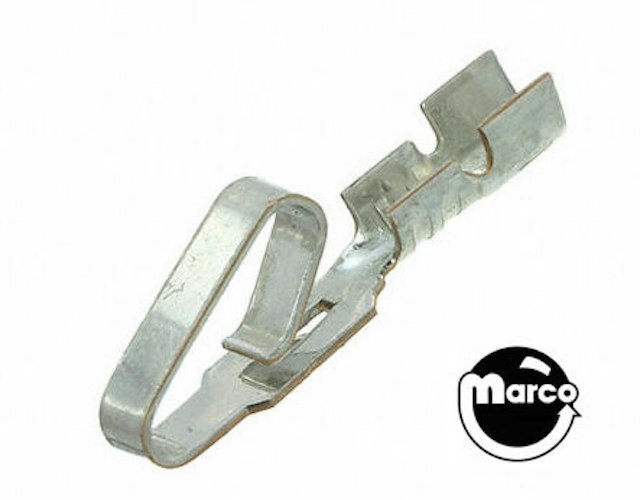

0.156 inch on center spacing standard crimp terminals. Replaced by 5822-09076-00
