New flipper parts are the answer for sticky, sluggish, weak, or dead flippers.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

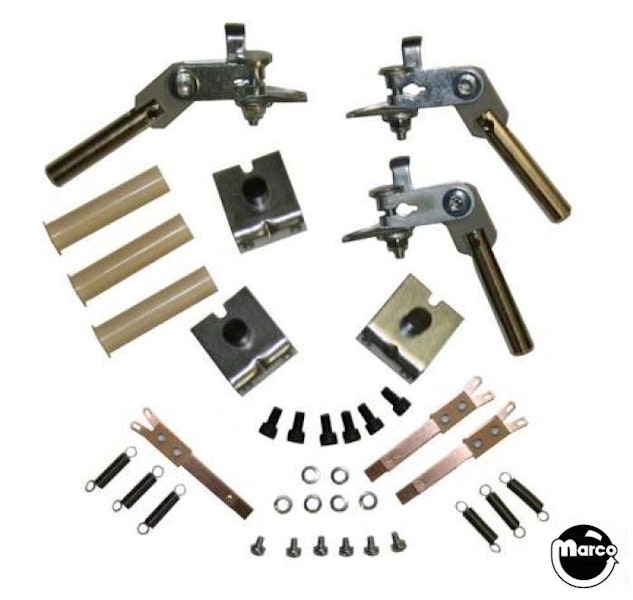

All-new replacement flipper rebuild kit is the answer for sticky, sluggish, weak, or dead flippers. The flipper kit contains parts to rebuild the left flipper and both right flipper units. Also includes flipper feeler gauge to assist in correct bearing to crank gap adjustment.
Reflects the factory build parts for WHITE WATER. The Upper Right flipper assembly used a B-10655-R flipper crank and link and 10-376 compression spring due to the confined space inside the upper playfield. The factory recommends replacing flipper kits every half-million flips to keep your flippers performing to specification. Use the diagnostic menu in your game under STANDARD ADJUSTMENTS to access the flipper count meters.
Parts included in this kit:
(1) A-15848-R - Plunger link & crank pawl Williams right
(1) B-10655-R - Plunger & crank assembly WPC early right
(3) A-12111 - Coil stop
(3) SW-1A-194 - Leaf switch Williams End Of Stroke
(2) 10-364 - Spring
(1) 10-376 - Spring
(6) 4006-01003-04 - Machine Screw 6-32 x 1/4" p-ph-sems 232-5200...
(6) 4010-01066-06 - Cap screw 10-32 x 3/8 inch sh flip bracket F...
(6) 4701-00004-00 - Lock washer No.10 steel reg split L/W zinc 244...
(3) 03-7066-5 - Coil sleeve
(1) 03-8194 - Flipper Gauge
Reference:
WFLTRON-1L2R-WW
Williams Part No.A-13524-8
Select manufacturer to view game compatibility
Right side flipper unit Plunger- link-crank assembly
Left side flipper unit Plunger- link-crank assembly
This is a flipper unit END OF STROKE (EOS) switch used on Williams / Bally...
Williams/Bally flipper coil stop. Reference:A-12111
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Black 10-32 X 3/8 hex socket head cap screw
#10 steel split lock washer. Zinc plated.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Plastic thickness gauge for adjusting flipper bushing gap
Williams right side flipper crank, plunger and link assembly for early flippers
Flipper return and drop target return spring
Common tapered style compression flipper return spring
