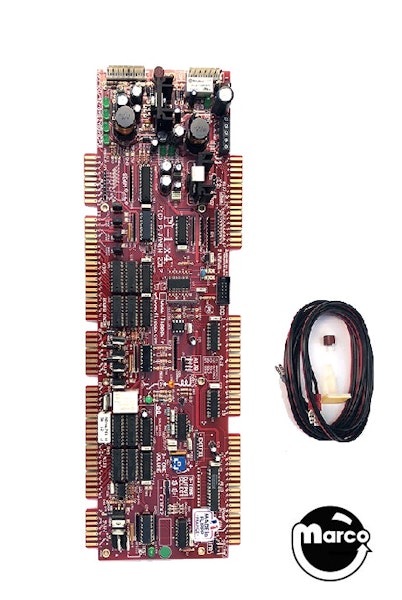

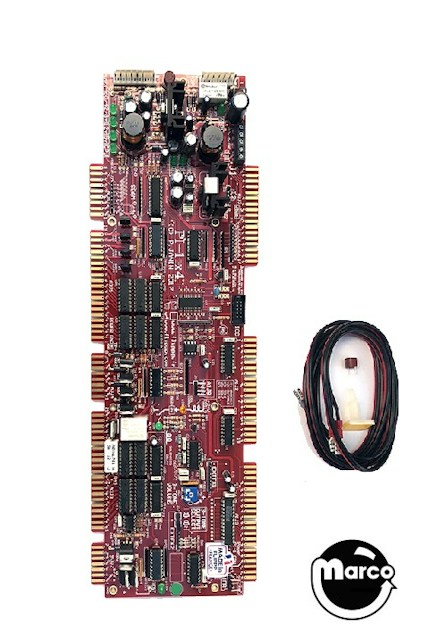

Gottlieb System 1 Pinball Electronics Platform

FEATURES:

• Professionally manufactured board with modern microprocessor and a concise list of available peripheral components

• Direct board-to-board replacement for the power supply (A2), the MPU (A1), driver board (A3) and 3-tones sound (A6) boards. No specific preliminary settings are required.

• Failure prone wire harnesses from A2J1 to A1J1 and A1J5 to A3J1 are eliminated.

• Single plug and play board fits all games, specific game PROMs are unnecessary

• Built with modern, reliable components for easy, lower cost maintenance

• Specific software & hardware protections against most common failures (e.g. high voltage shorts from coils, etc)

• Active coil protection: coil drive current is monitored by sensor and relay to protect transistors & coils in case of short-circuits.

• Energy saving board with reliable, efficient power supply that won't overheat.

• LED indicators for CPU activity, multiple power supply voltages (60V/42V, 12V/8V, 5V) and active coils protection

• Non-volatile game settings and bookkeeping memory -- no battery required

• Software selectable options with text style menus - no difficult to adjust DIP switches

• Configuration menus & various messages available in French, English, German, Portuguese, Italian & Spanish

• Installation manual in English with fully detailed, simple explanations. Installation is easy even for novice technicians.

Reference:

• Gottlieb System 1 MPU

• PI-1X4
