Williams BIG GUNS Cannon assembly includes switch, arm, linkage,
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

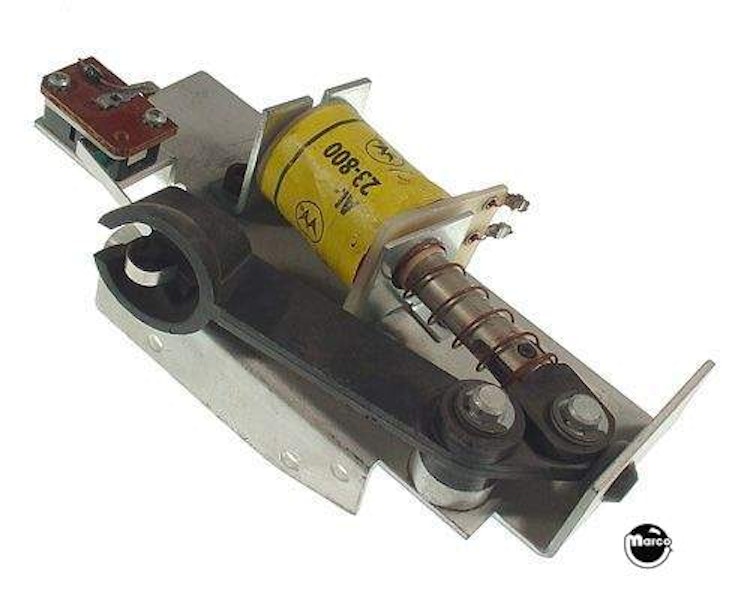

Williams BIG GUNS Cannon assembly includes switch, arm, linkage, and AL-23-800 coil.
Ships un-assembled
Reference:
C-11641 cannon assembly

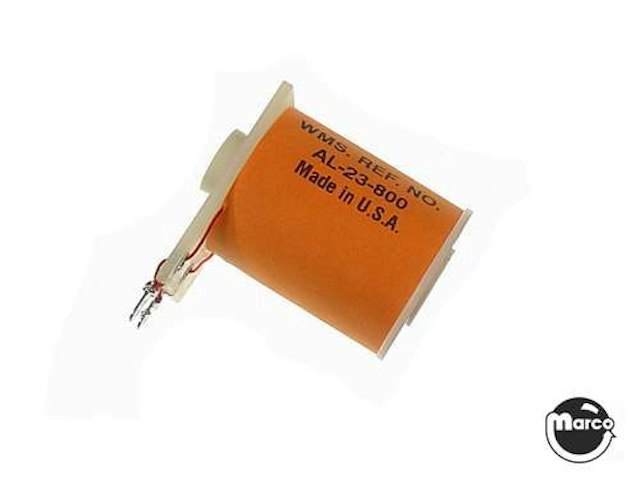

AL-23-800 Coil - solenoid
03-8089 Cannon / Catapult arm
B-11640 Catapult and cannon bracket
02-4301 Stud - catapult arm pin
01-8413 Bracket coil 01-8413-1 (typo 01-8143 on diagram)
4010-01066-06 Cap screw 10-32 x 3/8 inch sh flip bracket
03-7066 Coil sleeve - 1-3/4 x 1/2 inch
38-6577 Rubber bumper plug black 23-6577
10-395 Spring - compression
A-10821 Coil stop - flipper Williams
4004-01003-10 Machine Screw 4-40 x 5/8 inch p-ph-s
4008-01003-04 Machine Screw 8-32 x 1/4 inch p-ph-sems 4008-01017-04
A-7438-1 Terminal strip Williams/Bally
5647-12133-12 Switch miniature 1-3/4 inch lever w/ hook
Select manufacturer to view game compatibility
Bracket - coil mounting
Williams Catapult arm pin. Reference: 02-4301
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Black plastic Catapult Arm used on FISH TALES, MEDIEVAL MADNESS, and others.
Spring - compression
Diode - 1.1 volt 1 amp DO-41
E-clip or e-ring commonly used on many mechanisms. 5/16" measured at the o...
Black rubber grommet, bumper plug. Reference Numbers: Williams No.2...
Machine screw with 4-40 thread and 5/8" long with phillips pan head
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Black 10-32 X 3/8 hex socket head cap screw

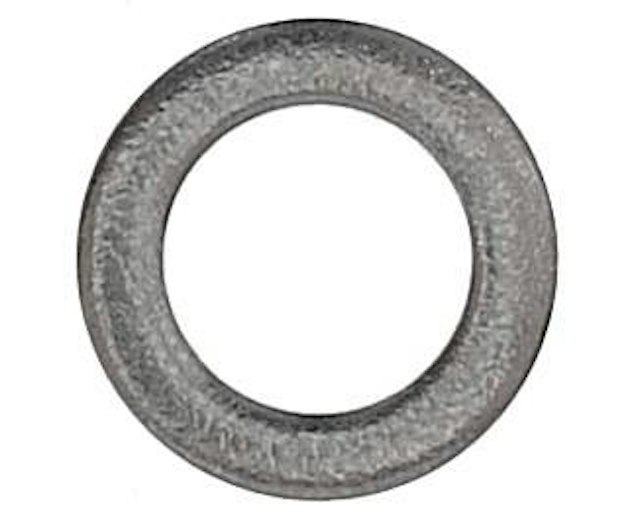

Flat washer .361" x .500" x .059" thick.
Miniature microswitch switch with 1-3/4" flat actuator.

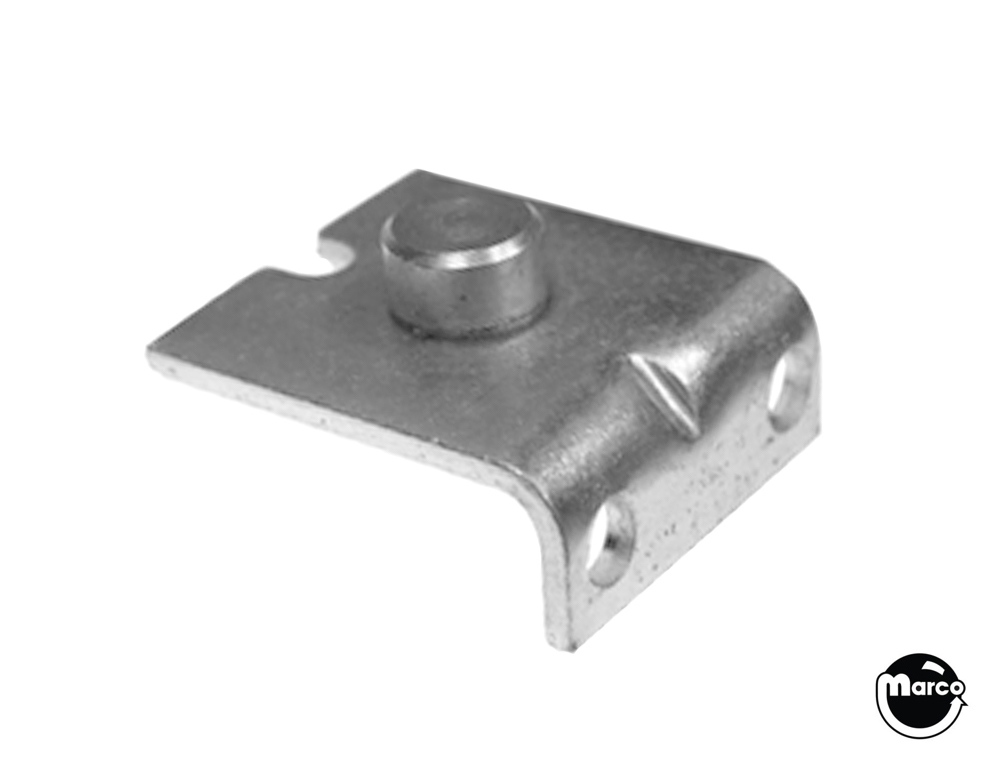

Flipper coil stop for 1987 Williams F-14 TOMCAT, SPACE STATION, FIRE!, BIG...
Steel plunger and gray link used in catapult assembly in WPC system games...
Terminal strip assembly used in WPC Williams/Bally series games Referen...
Two terminal coil with no diode.

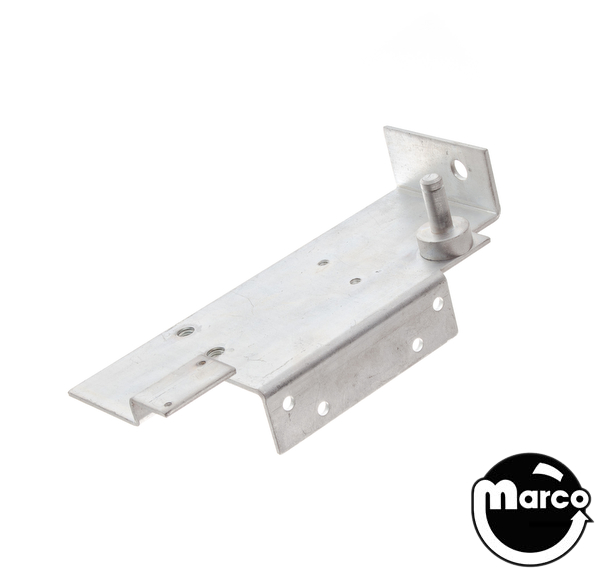

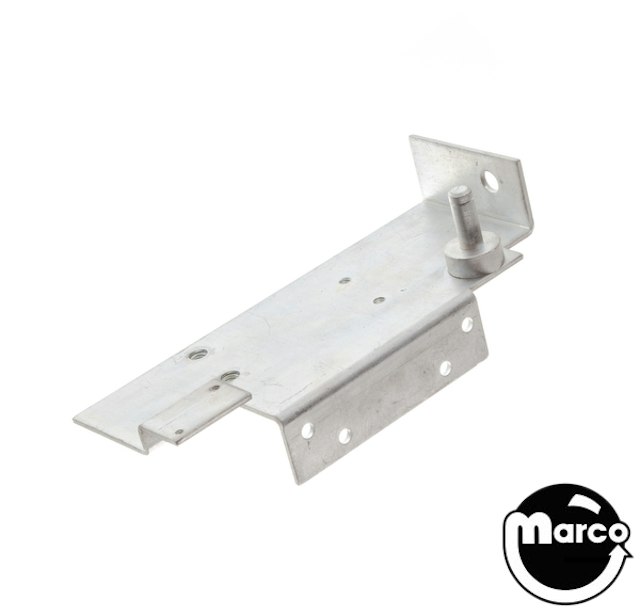

Catapult and cannon bracket
Steel plunger and gray link used in catapult assembly in WPC system USE A-12293
