Catapult assembly
#C-11641-1

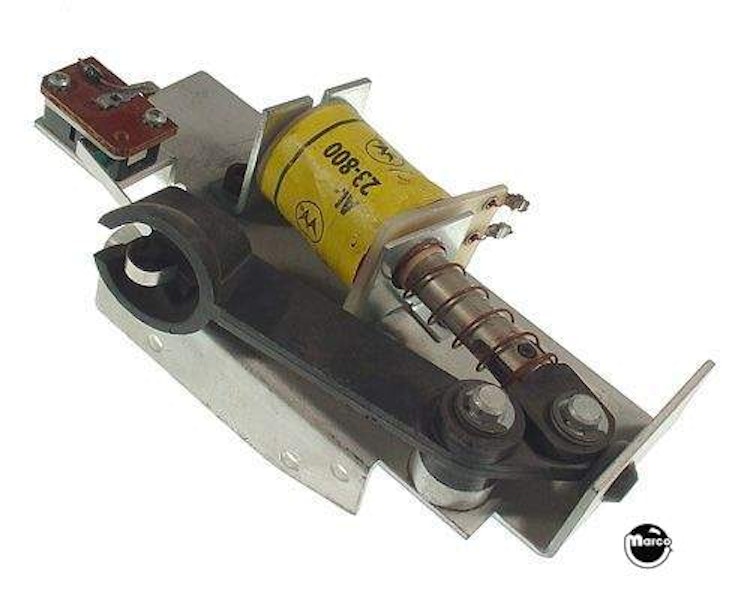

Williams catapult assembly includes switch, arm, linkage, and AL-23-800 coil.
Ships un-assembled

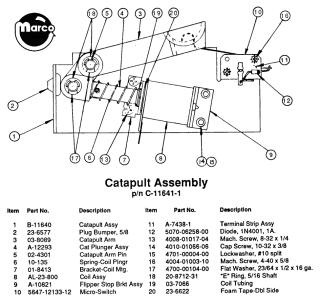

Reference:
- C-11641-1 catapult assembly
- AL-23-800 Coil - solenoid
- 03-8089 Cannon / catapult arm
- B-11640 Catapult and cannon bracket
- 02-4301 Stud - catapult arm pin
- 01-8413 Bracket coil 01-8413-1 (typo 01-8143 on diagram)
- 4010-01066-06 Cap screw 10-32 x 3/8 inch sh flip bracket
- 03-7066 Coil sleeve - 1-3/4 x 1/2 inch
- 38-6577 Rubber bumper plug black 23-6577
- 10-395 Spring - compression
- A-10821 Coil stop - flipper Williams
- 4004-01003-10 Machine screw 4-40 x 5/8 inch p-ph-s
- 4008-01003-04 Machine screw 8-32 x 1/4 inch p-ph-sems 4008-01017-04
- A-7438-1 Terminal strip Williams/Bally
- 5647-12133-12 Switch miniature 1-3/4 inch lever w/ hook
1.16 lb
