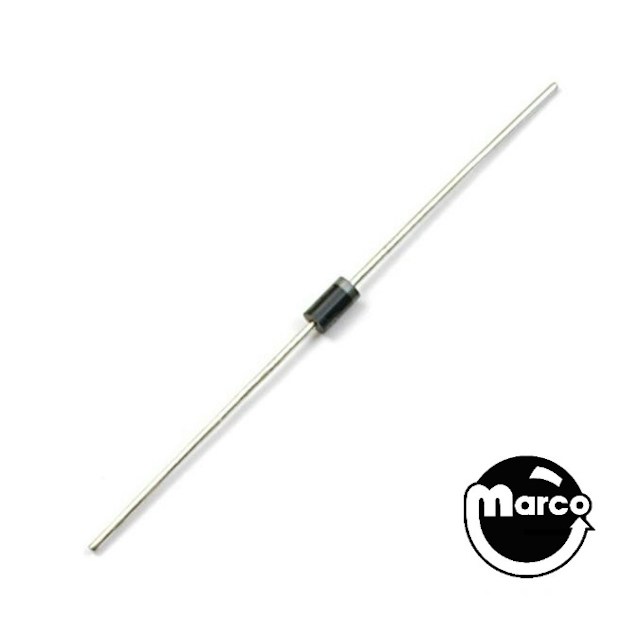

Common 1.1 Volt, 1 Amp 50 PRV, DO-41 package diode.
For applications on coils, we recommend replacing with a 1N4007, which is more durable with a higher reverse voltage.
Peak Repetitive Reverse Voltage: 50V
Average Rectified Forward Current: 1.0 A
Non-repetitive Peak Forward Surge Current: 30 A
Power Dissipiation: 3.0W
Forward Voltage Drop @1.0A: 1.1 V
Maximum Full Load Reverse Current, Full: 30 uA
Reference:
1N4001
Williams 5A-5268
5B-6258
5B-9054
Replaces Stern 112-5001-00
Taito 13-14001-001
