MEDIEVAL MADNESS (Williams) Catapult

#A-14947-1

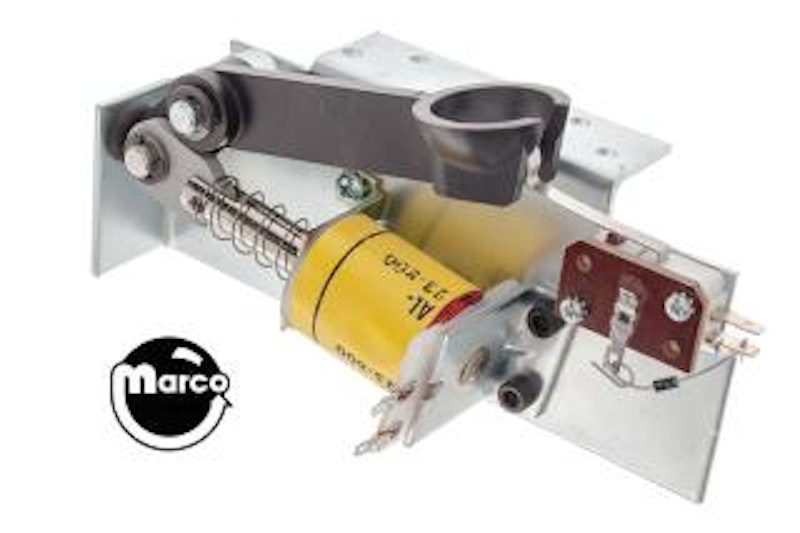

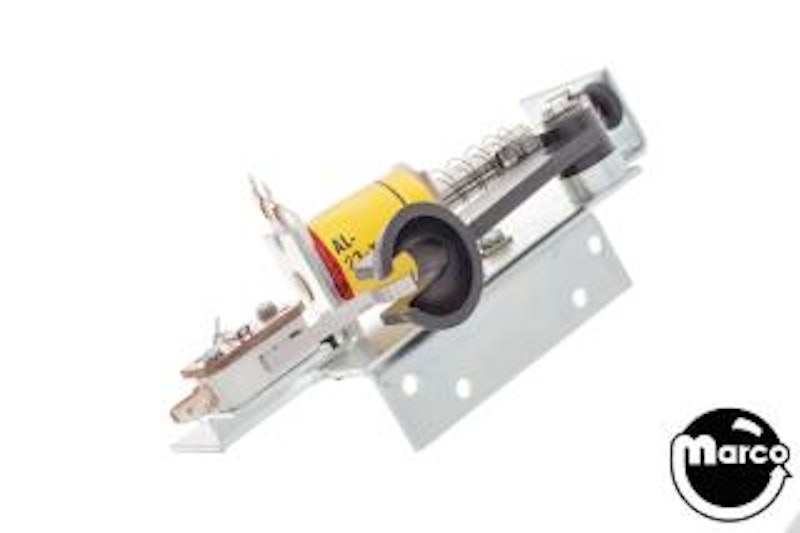

Williams MEDIEVAL MADNESS pinball machine catapult assembly kit.

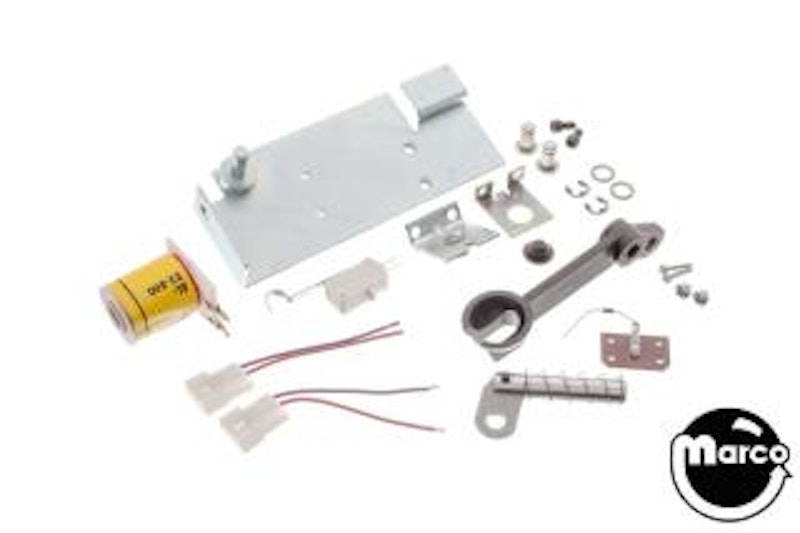

Ships un-assembled.

Reference:

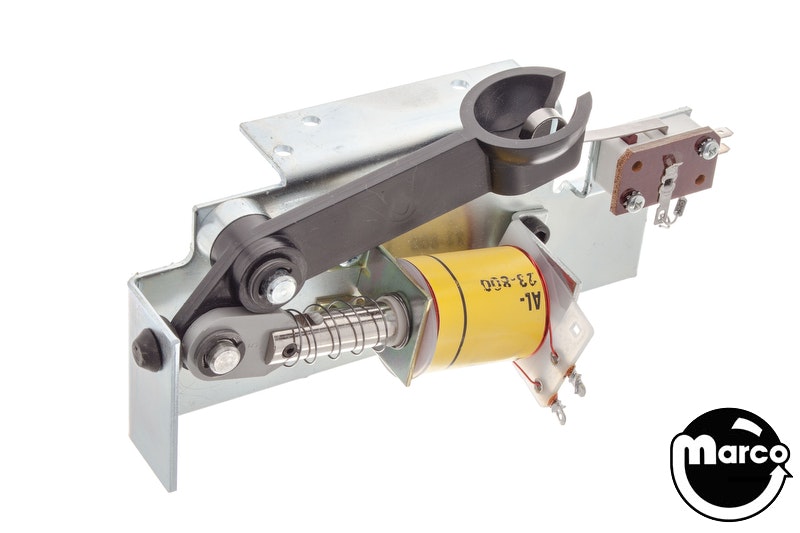

  • A-14947-1 catapult assembly
  • 01-8413 (1) bracket coil mtg
  • 02-4301 (1) pin catapult arm
  • 03-7066 (1) tubing-coil
  • 03-7520-2 (1) tie wrap-nylon 3 7/8
  • 03-8089 (1) catapult arm
  • 10-135 (1) spring-plunger
  • 20-8712-31 (2) e-ring 5/16 inch shaft
  • 23-6577 (1) rubber bumper plug 5/8 inch
  • 23-6622 (1) tape-double sided
  • 4004-01003-10 (2) ms 4-40 x 5/8 p-ph-s
  • 4008-01017-04 (2) ms 8-32 x 1/4 p-rh-s
  • 4010-01066-06 (2) cs 10-32 x 3/8 sh
  • 4700-00104-00 (2) fw .361 x .500 x .059
  • 4701-00004-00 (2) lw #10 split
  • 5070-09054-00 (1) diode 1N4004 1.0a
  • 5647-12133-12 (1) switch mini micro
  • 5791-10772-00 (1) 2P11625 03-06-2023
  • 5791-12570-00 (1) 1545-Z 03-09-2022
  • 5820-09078-00 (2) pm1560 02-06-2101
  • 820-09080-00 (2) terminal-pm1190 02-09-2101
  • A-10821 (1) flipper stop bracket
  • A-14946 (1) catapult bracket
  • A-22020 (1) solenoid plunger
  • A-7438-1 (1) terminal strip
  • AL-23-800 (1) coil assembly
  • CW-30022-5 (3) wire 22awg green
  • CW-30022-9 (3) wire 22awg white
  • H-16437 (1) mini switch cable
  • H-19523 (1) 2 pin cable-solenoid
  • HW-30018-2 (3) wire 18awg red
  • HW-30018-7 (3) wire 18awg violet

  • 3 lb

    $131.99

    In Stock
