Flipper assembly Williams left

Coil bracket notched 4 hooks

Coil bracket with 4 spring retainer tabs and 3 notches.

Cable tie 3-7/8 inch nylon - single white

Cable tie 3-7/8 inch nylon - single white

Flipper Bushing - Williams

Used on all Williams pinball machines from 1980 to 1999 & Bally/Williams games from 1989 to 1999.

Leaf Switch End of Stroke Normally Closed ASW-A20-1

Flipper end of stroke switch for electronic and electromechanical pinball machines.

Insulator - fishpaper blade 1-5/8 inch

Insulator - fishpaper blade 1-5/8 inch

Spring - flipper compression return tapered 266-5002-00

Common tapered style compression flipper return spring

Twin nut plate Tinnerman switch stack 17-90001N C6704-440 C06704-Z4-4

Twin nut 2 hole spring steel switch stack retainer for leaf switches.

Tape - double sided 1 inch wide / per foot

Tape - double sided 1 inch wide / per foot

Rubber bumper plug black 23-6577

Black rubber grommet, bumper plug. Reference Numbers: Williams No.2...

Machine Screw 6-32 x 3/16" p-ph

Machine Screw 6-32 x 3/16 inch p-ph

Machine Screw 6-32 x 3/8 inch p-ph 237-5501-00

Machine screw with 6-32 thread and 3/8 inch long with phillips pan head.

Machine Screw 6-32 x 1/4 inch p-rh-sems USE 4006-01003-04

Replaced by 4006-01003-04

Cap screw 10-32 x 3/8 inch sh flip bracket FA-90 HSP-003

Black 10-32 X 3/8 hex socket head cap screw

Sheet Metal Screw #5 x 5/8 inch p-rh-a

No.5 sheet metal screw 5/8 inch long is used to secure EOS on flipper assemblies...

Nut 6-32 hex 240-5004-00

6-32 nut used on Williams flipper plates to secure flipper bushings.

Lock washer #6 split

Lock washer No.6 split

Lock washer #10 steel reg split L/W zinc 244-5003-00 HLW-010

#10 steel split lock washer. Zinc plated.

Capacitor 2.2M 250V 20% axial

USE C2.2M250VA-NP

Coil stop - Williams A-15605 7.3mm

Williams/Bally flipper coil stop. Reference: A-12111

Plunger & Crank Assembly WPC Early LEFT

Early 1990s Williams left side flipper crank, plunger and link assembly.

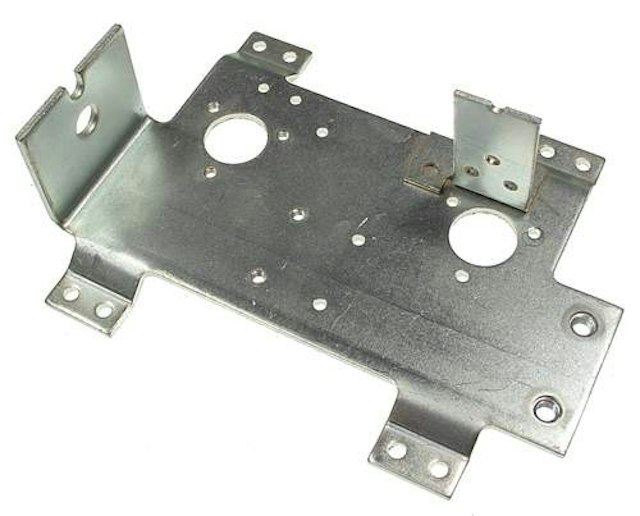

Bracket flipper base USE C-16103-L

Bracket flipper base USE C-16103-L

Coil - Flipper Red

3 terminal, dual winding flipper coil with 1N4004.

Wire 18awg blue / ft

Wire 18awg blu

PVC tubing #18

PVC tubing No.18

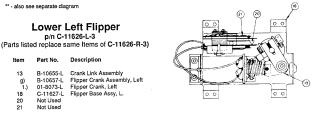

Flipper assembly Williams left

Flipper assembly Williams left side

Flipper assembly Williams left
