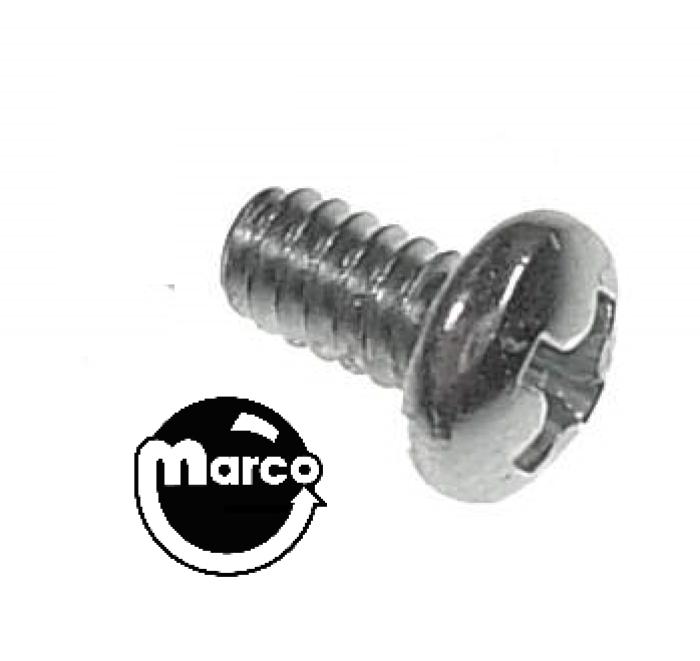

Machine Screw 6-32 x 3/16 inch p-ph


Machine screw with 6-32 thread and 3/16 inch long with phillips pan head.


  • 4006-01005-03
  • Equivalent 4006-01027-06 round head with washer

Fastener part numbering system explained:

The last 2 digits (XX) of the 4 digit fastener part number prefix (40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part #4006-01030-12 indicates a #6 stud diameter (.138") fastener.

The 2 digit part number suffix for bolts and screws (-12, -04, -16, etc) indicates the number of 1/16" length increments of the fastener. For example, part #4004-01003-04 indicates a screw that is 4/16" long or 1/4" long.

The middle 5 digits describe the fastener head style or other features.

Basic diameters and threads of Standard SAE (Society of American Engineers) numeric system small machine screws are shown below.

0.033 oz


In Stock
