Wire 18awg blue / ft

#HW-30018-6

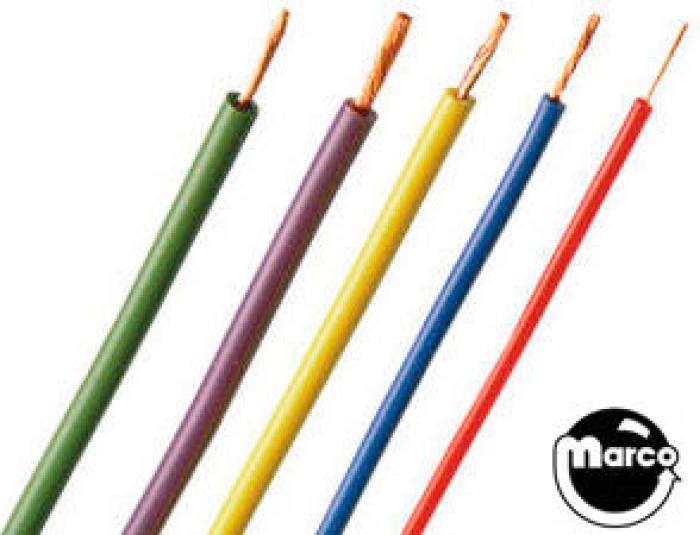

Wire 18 awg (American Wire Gauge) with blue insulation per foot.

Specifications:

  • AWG Size: 18
  • Conductor stranding: 16/30
  • No. of strands: 16
  • Strand size: 30
  • Nominal insulation thickness (inch): 0.030
  • Nominal O.D. (inch): 0.1110
  • Approx LBS/MFT: 10
  • UL Style: 3173
  • CSA Type: SIS/CL1251
  • Insulation material: Cross-linked polyethylene (XLPE)
  • Conductor Material: Tinned copper
  • Max. temp: 125°C

    Reference:

    • HW-30018-6

  • 0.1 oz

    $0.31

    In Stock
